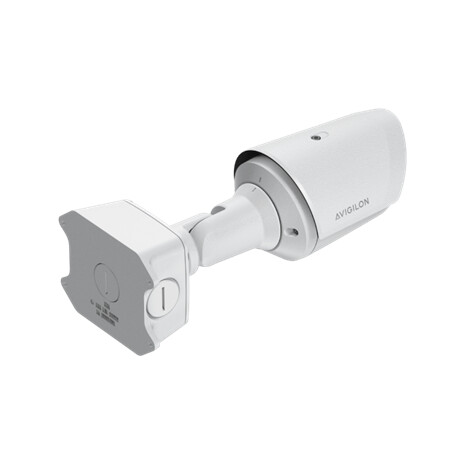

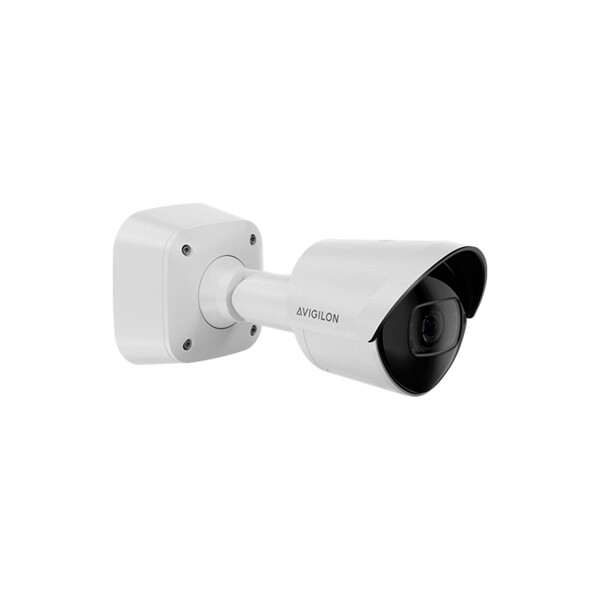

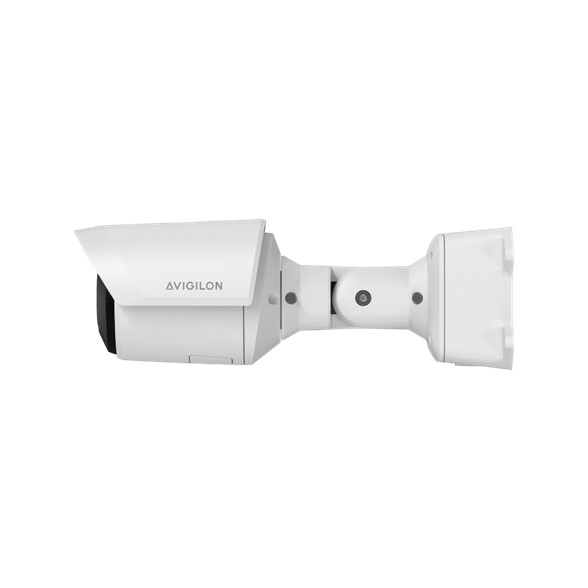

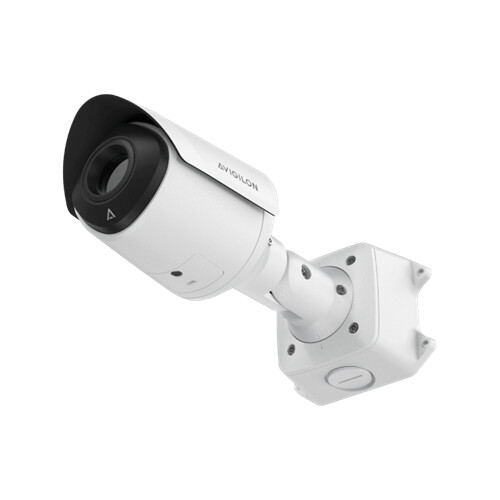

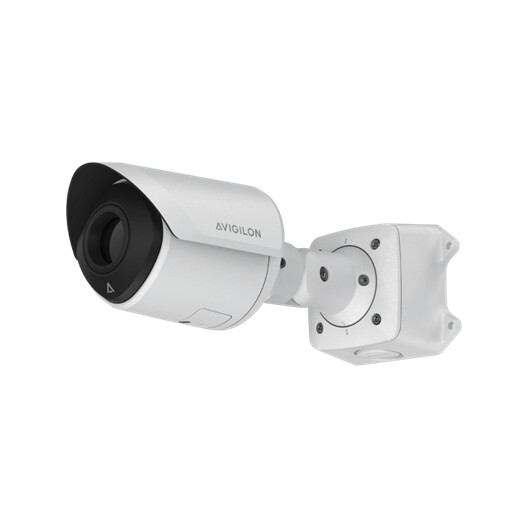

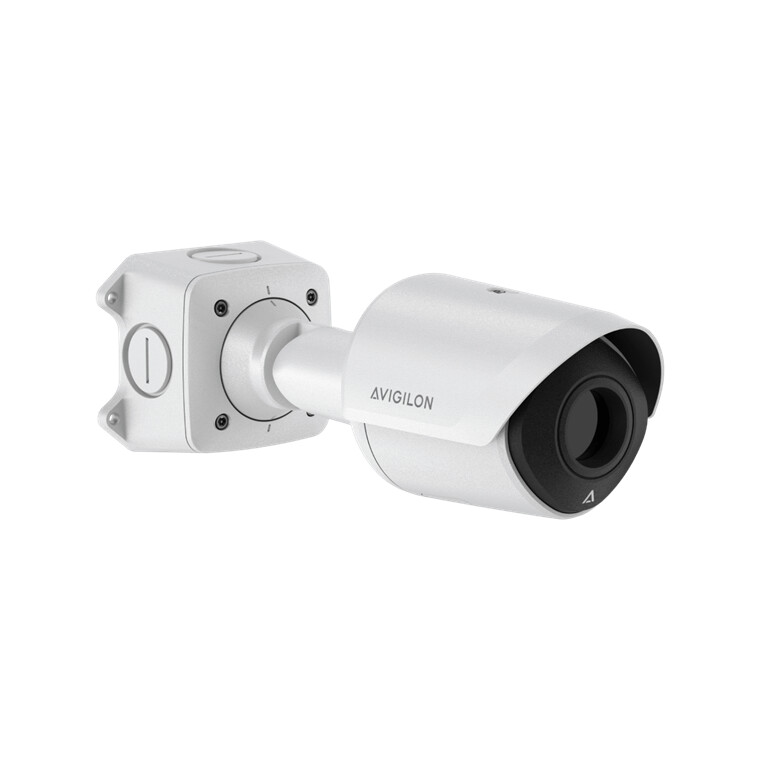

Telecamera termica H5A 640 x 512 36 mm

640F-H5A-THC-BO12 | Avigilon
La telecamera termica Avigilon H5A 640 x 512 con obiettivo da 36 mm unisce rilevamento del calore e analisi video di nuova generazione per la protezione perimetrale anche in condizioni di scarsa visibilità. Grazie alle funzioni radiometriche, misura variazioni di temperatura per identificare punti caldi o anomalie termiche, con robusta protezione IP66/67 e IK10.
Per il prezzo effettua il login
Richiedi informazioni
Descrizione
Richiedi informazioni

Descrizione

The Avigilon H5A Thermal 640 x 512 36 mm camera is designed for surveillance of large areas and critical sites where visibility can be compromised by darkness, smoke, rain, or fog. The uncooled VOx thermal sensor detects minute temperature differences with sensitivity = 50 mK, providing clear, sharp images for long-range detection of people, vehicles, or heat sources.

With next-generation video analytics, the camera accurately distinguishes subjects from objects, reducing false alarms and improving the effectiveness of perimeter security. Radiometric capabilities include the ability to measure surface temperature and generate alarms when critical thresholds are exceeded or abnormal variations occur over time. Multiple thermal palettes allow you to tailor the display to specific operating conditions.

The rugged die-cast aluminum housing, certified IP66/67, IK10, and NEMA Type 4X, protects the device from dust, water, and impacts, ensuring reliability even in industrial environments or exposed infrastructure. The camera supports FIPS 140-2 encryption with integrated TPM, Secure Boot, and signed firmware, ensuring enterprise-level cybersecurity. Compatible with ONVIF profiles S, T, G and M, it easily integrates with Avigilon Unity Video systems and third-party platforms.

Designed and manufactured in North America, the H5A Thermal 36 mm is backed by a 5-year warranty.

Key Features
  • 640 x 512 thermal resolution with uncooled VOx microbolometer
  • 36 mm F1.0 lens
  • Thermal sensitivity = 50 mK
  • Detectable temperature range -40 °C to +225 °C
  • Next-generation video analytics with people and vehicle classification
  • Radiometric capabilities for hot spot and thermal anomaly detection
  • Selectable thermal palettes (White Hot, Black Hot, IronBow, Rainbow, etc.)
  • H.265/H.264 compression with HDSM SmartCodec
  • IP66/67, IK10, NEMA Type 4X protection
  • FIPS 140-2 compliant encryption with built-in TPM and Secure Boot
  • Operating temperature -40°C to +65°C
  • ONVIF compatibility profiles S, T, G, M
  • 5-year warranty, North American made
