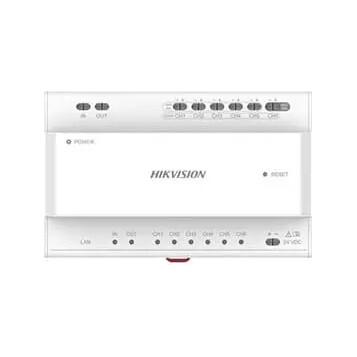

2-wire 6-port distributor for DIN rail
DS-KAD706Y-P | Hikvision
The Hikvision 6-Port 2-Wire DIN Rail Distributor is a 2-wire IP distribution box designed to simplify connection distribution in dedicated systems. Hikvision integrates 6 cascade interfaces with device power, 2 cascade interfaces for the compatible series indicated, 1 RJ-45 port, 1 reset button and DIN rail mounting with 24 VDC power supply.
Please login to view price
Description
Description
The Hikvision 6-port 2-wire DIN rail distributor is designed for 2-wire IP distribution in installations requiring neat and convenient DIN rail integration. The Hikvision solution provides 6 2-wire cascade interfaces with device power, along with 2 cascade interfaces dedicated to the DS-KAD704Y, DS-KAD706Y, and DS-KAD706Y-S series.
It includes 8 interface indicators, 1 RJ-45 interface, and 1 reset button, with 24 VDC power supply. The device operates in the operating temperature range of -10°C to 55°C and has a power consumption of less than 6W on CH1-CH5 and less than 16W on CH6.
The product dimensions are 143.69 x 90 x 65.95 mm, which makes it easy to integrate into panels and DIN-rail installations.
Main Features
- 2-Wire IP Distribution Box
- 6 2-Wire Cascade Interfaces with Device Power Supply
- 2 Cascade Interfaces for DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S Series
- 8 Interface Indicators
- 1 RJ-45 Interface
- 1 Reset Button
- DIN-Rail Mounting
- 24 VDC Power Supply
- Working temperature -10°C to 55°C
- Power consumption CH1-CH5 less than 6W and CH6 less than 16W
- Dimensions 143.69 x 90 x 65.95 mm
