The adhesive GNSS antenna with SMA connector is designed to receive signals from major satellite positioning systems, such as GPS, GLONASS, Galileo and BeiDou. Thanks to the adhesive fixing and the 3-meter RG174 cable, it offers simple and versatile installation in professional IoT and industrial applications.

• Operating Frequency: 1575"1602MHz
• Polarization: RHCP
• Gain: 2.0dBi
• Axial Ratio: ‰¤3dB
• VSWR: ‰¤2.0
• LNA Gain: 26±2dB
• Noise Figure: 1.5dB
• Operating Voltage: 2.2"5.0VDC
• Consumption: 5"15mA
• Impedance: 50Ω
• Cable Type: RG174, Length 3000mm
• Connector: SMA Male
• Mounting: Adhesive
• Operating Temperature: "40°C to +85°C
• Operating Humidity: Up to 95%
• RoHS Compliant

This antenna is ideal for improving positioning accuracy and GNSS signal reception in Teltonika devices and complex environments.

The mobile magnetic antenna with SMA connector is designed to enhance the mobile connectivity of Teltonika devices, such as RUT routers and TRB units. Thanks to its magnetic mounting, it is ideal for mobile, temporary or vehicular solutions, offering simple and secure installation without drilling.

• Operating Frequencies: 699"868MHz / 1850"2690MHz
• Polarization: linear
• Gain: 1.0dBi
• VSWR: ‰¤3.0
• Impedance: 50Ω
• Cable: RG174, length 3000mm
• Connector: SMA male
• Mounting: magnetic
• Operating temperature: "40°C to +85°C
• Compliance: RoHS

Ideal solution for optimizing mobile signal reception in dynamic scenarios such as fleets, construction sites and temporary industrial installations.

The adhesive GNSS antenna with FAKRA connector is a compact and reliable solution for receiving satellite signals from GPS, GLONASS, Galileo and BeiDou. The adhesive fixing simplifies installation on flat surfaces, while the female FAKRA C connector ensures compatibility and solidity of the connection in professional and industrial environments.

• Operating frequency: 1575.42"1602MHz
• Polarization: RHCP
• Gain: 2dBi
• Antenna VSWR: <1.5
• Impedance: 50Ω
• Axial ratio: ‰¤3dB
• LNA amplifier: 26±2dB
• Noise figure: <1.5dB
• Supply voltage: 2.2"5VDC
• Consumption: 5"15mA
• LNA VSWR: <2.0
• Cable: RG174 3000mm
• Connector: FAKRA C female
• Mounting: adhesive (3M tape)
• Operating temperature: "40°C to +85°C
• Relative humidity: up to 95%
• Compliance: RoHS

Ideal for IoT and industrial applications requiring GNSS precision, FAKRA compatibility and quick and safe installation.

The Teltonika 9W EU power supply is designed to provide reliable power to devices from the RUT and TSW family, both in domestic and industrial settings. It supports a wide range of input voltages (100"240 VAC) and frequencies (50/60Hz), with built-in overcurrent and short-circuit protection.

• Input Voltage: 100"240VAC (range 90"264 VAC)
• Input Frequency: 50/60Hz (47"63Hz)
• Input Current: Approx. 0.5A
• Output: 9VDC, 1.0A (8.55"9.45VDC deviation)
• Input Connector: EU Type-C
• Output Connector: 4-pin, 3mm pitch
• Protection: Built-in short circuit
• HIPOT Dielectric Test: 4000VDC
• Efficiency: DoE Compliant LevelVI
• MTBF: approximately 30,000h
• Weight: approximately 94g
• Certifications: IEC/EN62368-1, EMC according to EN55032, 55035 and CISPR
• Operating temperature: "10°C to +40°C; storage: "20°C to +70°C
• Compliance: RoHS

This power supply is perfectly compatible with Teltonika routers such as RUT200/240/241/260 and TSW switches. Its compact design, integrated protection and high efficiency make it a reliable choice for constant power in IoT and networking solutions.

The Teltonika I/O Interface Connector Set is designed to ensure safe and professional connections in RUT and TRB devices equipped with GPIO, digital inputs and RS485 communication. Includes two 5-pin and two 3-pin connectors with 3.5mm pitch, compatible with cables from 0.2 to 1.5mm².

• Composition: 2-5 pins + 2-3 pins
• Maximum supported voltage: 300V
• Maximum supported current: 8A
• Supported conductor cross-section: 0.2"1.5mm² (24"16AWG)
• Pitch: 3.5mm
• Contact material: Tin-plated copper alloy
• Insulator material: PA66
• Operating temperature: "40°C to +105°C
• Flammability rating: UL 94V-0
• Compliance: RoHS

Ideal for industrial installations requiring robust, standardized, and reliable cabling on Teltonika devices for advanced control and monitoring.

The 4-way screw terminal power cable is a professional accessory for Teltonika devices requiring DC power and potential access to digital inputs/outputs. The 4-way screw terminal allows for direct connection, while the 4-pin output connector with 3mm pitch ensures compatibility with Teltonika router I/O cards.

• Input Connector: 4-way screw terminal
• Output Connector: 4-pin, 3mm pitch
• Cable: 4 conductors 0.129mm² (26AWG)
• Overall Length: approximately 2000mm
• Color coding: 1 Red (Power +), 2 Black (Ground "), 3 Green (Input/Output/NC), 4 White (Input/Output/NC)
• Compliance: RoHS

Ideal for powering and managing digital signals on Teltonika devices such as RUT-series, TRB-series and switches TSW, offering a robust and tidy connection without the need for special connectors.

The 35mm DIN rail mounting kit allows you to securely and neatly mount Teltonika devices inside technical panels or cabinets. The steel mount ensures strength and durability, while the included screws simplify installation without the need for additional hardware.

• Mounting Type: Standard 35mm DIN Rail
• Material: Low Carbon Steel
• Dimensions: 65.2 - 44.2 - 1.5mm
• Screws Included: 2 Philips Pan Head #6-32-3/16
• Weight: Approx. 57g
• Compliance: RoHS
• Compatibility: Teltonika routers (RUT200/240/260, RUT950/956, RUTX11) and TSW switches

Ideal solution for stable, industry-compliant mounting of Teltonika devices in professional installations and infrastructures.

The 35mm Compact DIN Rail Mounting Kit is a practical and lightweight solution for installing Teltonika devices in technical panels and industrial cabinets. Made of ABS+PC plastic, it allows for solid fixing while maintaining a minimal footprint.

• Mounting Type: Standard 35mm DIN Rail
• Material: ABS+PC plastic
• Dimensions: 70 - 25 - 14.5mm
• Weight: approximately 6.5g
• Screws included: 2 Philips Pan Head #6-32-3/16
• Certification: RoHS compliant

Ideal for discreet and efficient installations of Teltonika devices such as the TRB145, TRB245, RUT240, RUTX08, TSW100 and others that support compact DIN rail mounting.

The Peplink MAX Antenna is designed for high performance in outdoor environments, combining cellular, Wi-Fi, and GPS antennas in a single, rugged enclosure. Its distinctive feature is the ability to install the router directly inside the enclosure, eliminating losses caused by long RF cables.

The UV-resistant plastic enclosure is IP67 rated, protecting against humidity, salt spray, and corrosion. The included L-mount and wall, pole, surface, and bridge mounting options make it easy to install on vehicles and mobile equipment.

• Compatibility with Peplink BR1 Mini, BR1 Pro 5G, Transit Duo Pro routers, and more
• 4 LTE/5G, 2 Wi-Fi, 1 GPS
• Supported frequencies: 600-6000 MHz
• Maximum gain: up to 7.4 dBi
• Connectors: SMA male (Cellular, GPS), RP-SMA male (Wi-Fi)
• UV-resistant polycarbonate housing, IP67
• GPS power: 3.3V, 10mA consumption
• Dimensions: 120 mm height, 250 mm diameter
• PoE compatible via splitter (not included)
• Easy mounting with L-mount, 3M adhesive and cable glands

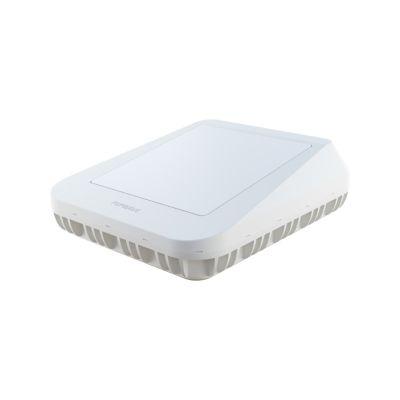

Peplink's MAX S antenna combines 5G connectivity, Wi-Fi, and GPS in a single enclosure that accommodates a Peplink and Starlink Mini router without external RF cabling, reducing losses and maximizing signal quality. The structure is made with an aluminum base and a weather-resistant PC casing, ideal for outdoor installations in the most demanding scenarios.

The design includes space for DC or PoE power modules and a flexible mounting system suitable for surfaces, poles, magnetic mounts, or vehicle roofs. Integrated RF features deliver high performance in all supported bands, ensuring reliable use in professional, mobile, or remote environments. Key Features

• 4 5G/LTE elements with gains of 5.7 dBi from 617 to 960 MHz, 6.8 dBi from 1410 to 2700 MHz, 8.9 dBi from 3300 to 4400 MHz, and 7.3 dBi from 5000 to 6000 MHz.
• 2 Wi-Fi elements with gains of 6.3 dBi from 2400 to 2500 MHz and 7.4 dBi from 5000 to 6000 MHz.
• GPS antenna with peak gain of 0.9 dBi at 1575 MHz and 0.8 dBi at 1602 MHz with 27 dB LNA.
• Right-angle SMA male connectors for 5G and GPS and RP-SMA male for Wi-Fi.
• IP67 protection with UV and salt spray resistant materials, heat-sink metal base.
• Compatible with BR1 Mini, Transit Duo Pro, and BR1 Pro.
• Surface, pole, magnetic mount, or vehicle roof mount.
• Dimensions: 448 mm long, 368 mm wide, 135 mm high.
• Includes screws, gaskets, RJ45 gland, and accessories according to the technical list.

The Teltonika BAT120 is an industrial backup power supply (UPS) designed to ensure continuous connectivity to Teltonika routers and gateways during power outages or fluctuations. Powered by two 18650 Li-Ion cells with a capacity of 2600mAh (17Wh), it supports up to 6 hours of autonomous operation.

Constructed with a rugged aluminum casing, the BAT120 features two 4-pin DC connectors (one for input, one for output), status LEDs, an on/off switch, and an alarm output. It offers reverse polarity protection, input overvoltage protection, and output overcurrent protection (3A). It can be powered from 9A 30VDC, delivers 12VDC in battery mode and maintains the input voltage in pass-through mode.

• Internal battery: 2600mAh (17Wh), 2- 18650 Li-Ion
• Maximum power in battery mode: 22W / 1.8A
• Input voltage: 9"30VDC; pass-through output: 9"30VDC; Battery output: 12VDC
• Inputs/Outputs: 4-pin industrial DC connectors
• Protection: reverse polarity, overvoltage, overcurrent 3A
• Status LEDs: IN PWR, OUT PWR, 4- charge indicators (SOC)
• Switch: On/Off slider
• Chassis material: aluminum
• Dimensions: 100 - 30 - 85mm; Weight: 315g
• Operating temperature: 0°C"45°C
• Mounting options: DIN rail, wall, or flat surface (accessory kit required)
• Certifications: CE/RED, UKCA, EAC
• Device compatibility: RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100

Perfect for industrial and IoT applications that require uninterrupted power even in the event of a power outage, with event reporting capabilities via Teltonika routers.

The Peplink B One Dual WAN Wi-Fi 6 router offers high performance and flexible connectivity, ideal for SOHO and SMB environments. It supports wired, wireless, FWA, and Starlink connections, allowing you to balance or aggregate multiple internet lines with proprietary SpeedFusion technology. With throughput of up to 1 Gbps and 2x2 MIMO dual-band Wi-Fi 6, it ensures a stable, fast network suitable for a large number of devices. Advanced security features, including VPN with AES 256-bit encryption and a built-in firewall, protect business data. Centralized management via the InControl cloud allows complete control, wherever you are.

Key Features

• Dual band Wi-Fi 6 (2.4/5GHz) with 2x2 MIMO
• Dual Gigabit Ethernet WAN + USB-C WAN port
• Router throughput up to 1 Gbps
• SpeedFusion VPN with Hot Failover, Bonding and AES 256-bit encryption
• Firewall with DoS prevention and web blocking
• VLAN support, QoS and application control
• Cloud management via the Peplink InControl platform
• Compatibility with Starlink and 5G/LTE modems
• 4 Gigabit LAN ports and 2 RP-SMA antenna connectors
• Rated power consumption of 6 W
• Range Operating temperature from -40°C to +45°C
• FCC, CE, RoHS certifications
