Intercom

The Hikvision video intercom outdoor enclosure is designed to provide maximum durability and protection in installations exposed to the elements. The stainless steel frame ensures strength and stability, while the top cover protects the video intercom module from rain and sunlight.

Compatible with wall-mounting a video intercom module, it represents a practical and durable solution for residential and professional applications.

Main Features

• Rain and sun cover
• Compatible with wall-mounting a video intercom module
• Stainless steel frame
• Operating temperature range -40 to +60 degrees C
• Operating humidity range 10% to 95%
• Dimensions 116.4 x 122 x 58 mm
• Weight 299 g

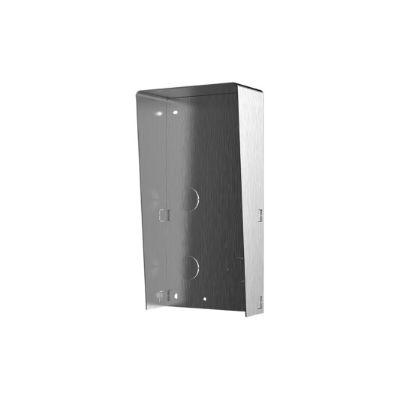

Hikvision's stainless steel rain shield for 2 KD8 modules is designed to protect the front and sides of modular outdoor stations installed on walls. The stainless steel structure is suitable for surface-mounted configurations consisting of two modules.

The shield measures 116.4 x 224 x 58 mm, weighs 500 g, and can operate in temperatures ranging from -40°C to 60°C. It pairs with the compatible stainless steel wall-mounted frame, while the frame and video intercom modules are separate items and not included.

Main features

• Stainless steel structure
• Compatible with 2-module KD8 modular configurations
• Wall installation in surface-mounted configurations
• Front and side protection of the modules
• Dimensions 116.4 x 224 x 58 mm
• Weight 500 g
• Operating temperature -40 °C to 60 °C
• Frame and video intercom modules not included

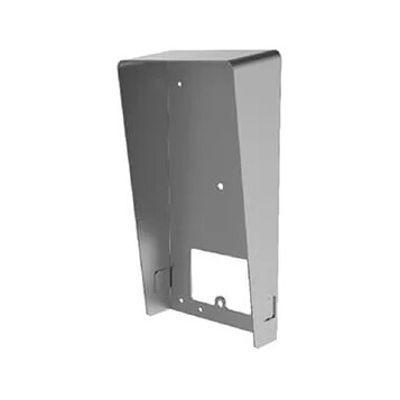

The Stainless Steel Rain Canopy for KV8 Modules from Hikvision is a protective shield for outdoor stations in the Villa series. Designed for wall mounting, it protects compatible modules from rain and features a silver finish.

Main Features

• Rain protection for outdoor stations
• Compatible with KV8113, KV8213, and KV8413 modules
• Stainless steel construction
• Wall-mounted
• Silver color
• Dimensions: 186 x 97 x 91 mm

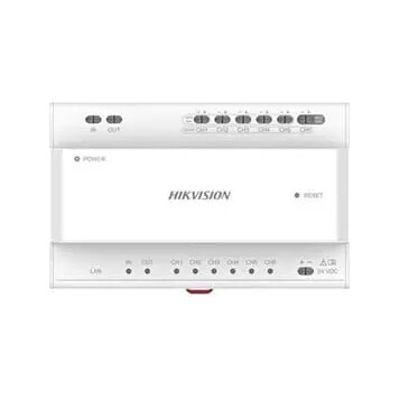

The Hikvision 6-port 2-wire DIN rail distributor is designed for 2-wire IP distribution in installations requiring neat and convenient DIN rail integration. The Hikvision solution provides 6 2-wire cascade interfaces with device power, along with 2 cascade interfaces dedicated to the DS-KAD704Y, DS-KAD706Y, and DS-KAD706Y-S series.

It includes 8 interface indicators, 1 RJ-45 interface, and 1 reset button, with 24 VDC power supply. The device operates in the operating temperature range of -10°C to 55°C and has a power consumption of less than 6W on CH1-CH5 and less than 16W on CH6.

The product dimensions are 143.69 x 90 x 65.95 mm, which makes it easy to integrate into panels and DIN-rail installations.

Main Features

• 2-Wire IP Distribution Box
• 6 2-Wire Cascade Interfaces with Device Power Supply
• 2 Cascade Interfaces for DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S Series
• 8 Interface Indicators
• 1 RJ-45 Interface
• 1 Reset Button
• DIN-Rail Mounting
• 24 VDC Power Supply
• Working temperature -10°C to 55°C
• Power consumption CH1-CH5 less than 6W and CH6 less than 16W
• Dimensions 143.69 x 90 x 65.95 mm

Hikvision's 2-wire 2MP modular outdoor station is a main unit for intercom and access control systems, designed for environments such as apartments, offices, and construction sites. Made of stainless steel, it combines a minimalist design with a 2MP fisheye camera that provides high-resolution images, WDR support, and IR illumination up to 3 m for improved visibility.

The device features a physical call button, a built-in omnidirectional microphone, and a built-in speaker with noise suppression and echo cancellation functions. Hikvision also allows remote configuration via the web and direct control of up to two locks, with a 12 V 500 mA power output for an electronic lock without an additional power supply.

Main features

• Modular 2-wire main unit for outdoor station.
• 2 MP fisheye camera with 146° horizontal and 82° vertical field of view.
• Built-in IR illumination up to 3 m and WDR support.
• H.264, H.265 and MJPEG video compression.
• Built-in omnidirectional microphone and built-in speaker.
• Audio quality with noise suppression and echo cancellation.
• A physical call button.
• Control of 2 locks via 2 relays up to 30 VDC and 2 A.
• 4 alarm inputs, including 2 exit buttons and 2 door contacts by default.
• 1 RS-485 interface for communication with Hikvision submodules.
• 1 2-wire IP interface.
• Capacity of up to 2000 users, 500 connected internal stations and 16 secondary external stations.
• Surface or flush-mounted installation.
• IP65 protection for outdoor use.
• Working temperature from -40 °C to 60 °C.
• Dimensions 100 x 98 x 42 mm and net weight 0.430 kg.

The Hikvision DS-KD-ACF1/Plastic kit is an accessory designed for flush-mounting KD series modular video intercoms, such as the DS-KD8003-IME1 and DS-KD-PMR models. Supplied complete with a flush-mounting box, front frame, screws, and connection cables, it allows for safe and precise installation with a clean, professional look.

Made of sturdy plastic, the kit is lightweight and resistant to environmental changes. With compact dimensions and compatibility with the main Hikvision modules, it represents the ideal solution for residential and commercial applications that require an orderly and functional integration of video intercoms.

• Model: DS-KD-ACF1/Plastic
• Flush-mounting frame kit complete with box, screws and lines
• Resistant plastic material
• Compatible with DS-KD8003 and DS-KD-PMR modules
• Compact design and easy installation
• Operating temperature: -40 °C to +55 °C
• Box dimensions: 134 x 135 x 56 mm
• Cover dimensions: 134 x 124 x 4 mm
• Net weight: 195 g

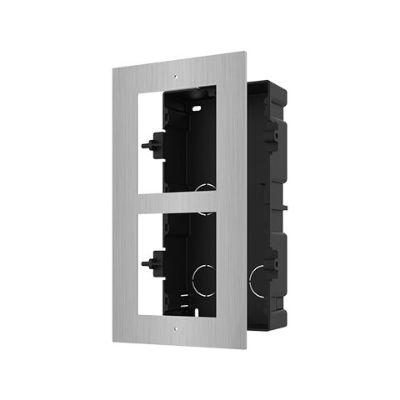

The Hikvision flush-mount frame is designed to install two compatible video intercom modules flush to the wall. The kit includes a stainless steel cover, a plastic flush-mounting box, screws, and connection lines.

Video intercom modules are not included and must be purchased separately.

Main Features

• Flush-mount configuration for 2 compatible video intercom modules.
• Stainless steel cover with dimensions of 236 x 124 x 4 mm.
• Plastic flush-mounting box with dimensions of 237 x 135 x 56 mm.
• Screws and connection lines included.
• Flush-mount installation.
• Operating temperature from -40 °C to +55 °C.
• Video intercom modules not included.

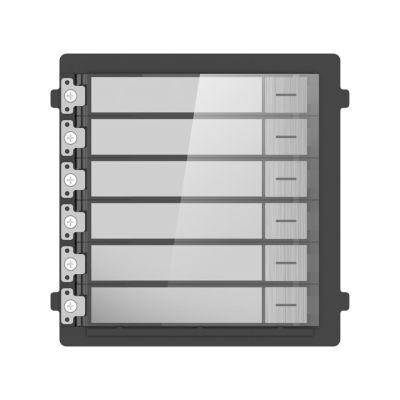

The external name plate module for the KD8 series allows you to expand a modular video intercom station with 6 call buttons. The backlight compensation behind the buttons makes it easier to identify names and makes the Hikvision module easy to use and expand.

The stainless steel construction and IP65 and IK07 protection levels allow it to be used in outdoor environments. The module supports flush-mounted or wall-mounted installation and features a high-performance embedded processor with a Linux operating system.

Main features

• Name plate module for modular video intercom station
• 6 call buttons
• Backlight compensation behind the buttons
• Stainless steel structure
• IP65 protection and IK07 resistance
• Flush-mounted or wall-mounted installation
• Outdoor application environment
• Linux operating system
• High-performance embedded processor
• TCP/IP and RTSP network protocols
• 1 self-adaptive 10/100 Mbps RJ45 port
• 2 RS-485 interfaces
• 12 VDC power supply via another module
• Power consumption of 0.8 W
• Operating temperature -40°C to 55°C
• Operating humidity 10% to 95%
• Dimensions 98.5 x 100 x 34.2 mm
• Net weight 265 g

The 7'' PoE IP Indoor Control Station offers a modern and intuitive interface for video intercom systems. The 1024 x 600 pixel capacitive TFT LCD display ensures simple and immediate use. It supports standard 802.3af PoE for power and wired network connection, or Wi-Fi b/g/n for greater flexibility.

You can answer calls from external stations, view video feeds from connected cameras, and unlock doors directly via the Hik-Connect app or client software. It features 8 alarm inputs, 2 relay outputs for door control and an RS-485 interface for integration with other devices. The microSD slot up to 32 GB allows local storage of images and notifications.

Based on an embedded Linux system, with 32 MB ROM and 128 MB RAM, it is compact (200 x 140 x 15.1 mm) and lightweight (355 g), with power consumption less than 5 W. It is intended for indoor installations, operating between -10 °C and 55 °C.Main Features

• 7'' TFT LCD capacitive touch display (1024 x 600)
• 802.3af PoE power supply and Wi-Fi support (802.11b/g/n)
• MicroSD slot up to 32 GB
• 8 alarm inputs, 2 relay outputs, RS-485
• System Embedded Linux, 32 MB ROM, 128 MB RAM
• Dimensions: 200 x 140 x 15.1 mm; weight 355 g
• Power consumption < 5 W; operating temperature -10 °C - 55 °C

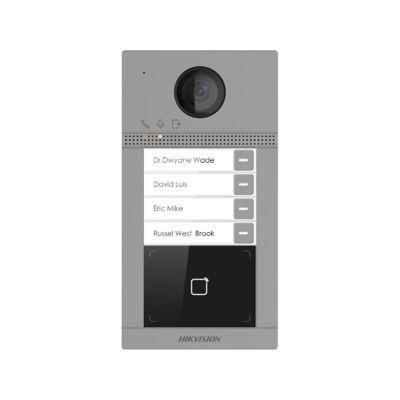

Hikvision's 2 MP 4-button outdoor video intercom combines video intercom and access control. The HD camera offers a resolution of up to 1920 x 1080p, a 129-degree horizontal and 75-degree vertical field of view, True WDR, and IR illumination up to 3 m.

Two-way audio communication uses a built-in omnidirectional microphone and speaker, with noise suppression and echo cancellation. The Mifare reader allows opening via card, while unlocking via client software, app or internal station is also available.

Connectivity includes 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi. Power can be supplied via standard IEEE 802.3af PoE or 12 VDC, while IP65 and IK08 protections and a tamper switch increase the security of the device.

Main features

• 2 MP HD camera with resolution up to 1920 x 1080p.
• Main stream up to 1080p at 30 fps.
• H.264 video compression.
• True WDR, BLC, DNR and motion detection.
• IR illumination up to 3 m.
• 129-degree horizontal and 75-degree vertical field of view degrees.
• Two-way audio with built-in omnidirectional microphone and speaker.
• Noise suppression and echo cancellation.
• 13.56 MHz Mifare card reader.
• Maximum capacity of 10,000 cards and 2,000 users.
• Four physical buttons and three indicators.
• 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi connectivity.
• Power supply via IEEE 802.3af standard PoE or 12 VDC.
• Power consumption less than 10 W.
• Two door contact inputs and two exit button inputs.
• RS-485 interface and two door controls.
• Remote configuration via Web.
• IP65 and IK08 protection with tamper switch.
• Operating temperature range: -40°C to 53°C.
• Wall or flush-mounted installation.
• Dimensions: 174 x 91 x 29 mm.
