Wi-Fi

The Cambium ANT-D30-2X2-02 30° directional antenna is designed for outdoor applications requiring precise and reliable coverage. It supports the 2.3 2.7 GHz and 4.9 5.925 GHz bands, with gain up to 14 dBi. Dual slant polarization ensures improved performance in challenging environments. The rugged and compact design facilitates easy mounting with dedicated options, making it ideal for targeted connections in corporate or infrastructure networks.

• Type: 30° angle outdoor directional antenna
• Supported frequencies: 2.3 2.7 GHz and 4.9 5.925 GHz
• Maximum gain: 14 dBi
• Polarization: dual slant
• Connectors: 2 x N-type female
• Maximum power: 6 W
• Dimensions: 305 mm x 305 mm x 15 mm
• Operating temperature: -45 °C to 70 °C

The Cambium PoE Injector, model C000000L141A, is the ideal solution for providing power and high-speed data connectivity to professional network devices. With output power up to 60W at 56V, it can support high-performance equipment that requires constant and reliable power.

Designed for indoor installations, it integrates a 3-wire AC input with a C6 connector and data/power output via RJ-45, simplifying configuration. Compliant with the Energy Level 6 standard, it ensures operational efficiency and reduced energy consumption. It supports Ethernet speeds up to 10GbE, delivering high performance for advanced networking applications.

• Output power: 60W at 56V
• Ethernet support up to 10GbE
• 3-wire AC input with C6 connector
• RJ-45 output
• Indoor installation
• Energy Level 6 energy efficiency
• Operating temperature range: 0°C - 50°C
• Compact and reliable design

The Teltonika DAP140 is a compact and reliable industrial access point designed to ensure stable Wi-Fi 4 connectivity in critical scenarios. With support for mesh mode (802.11s), fast roaming (802.11r), and intelligent network management (802.11k/v), it is ideal for environments where clients frequently roam.

The RutOS operating system allows for comprehensive management via a web interface, SNMP, JSON-RPC API, or Teltonika's RMS platform. Its hardware features make it suitable for DIN rail, wall, or flat surface installations.

• Wi-Fi standard 802.11b/g/n with AP, client, mesh (802.11s), Multi-AP modes
• Up to 50 simultaneous connected devices
• Advanced security: WPA3-SAE, WPA2/3-EAP, MAC filtering, SSID hiding
• Two 10/100 Mbps Ethernet ports, auto MDI/MDIX
• 9-30V DC power supply via industrial connector or passive PoE on LAN2
• Aluminum enclosure, DIN rail, wall, or flat surface mount
• Operating temperature: -40°C to +75°C
• Management via RutOS, RMS, SNMP, JSON-RPC API

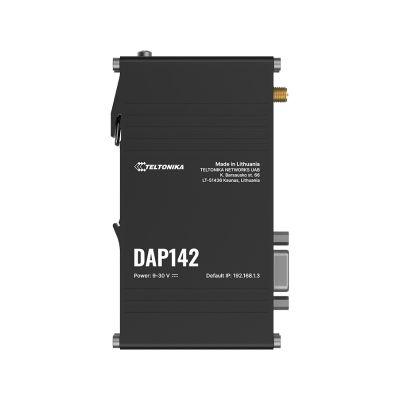

The Teltonika DAP142 is an access point designed for industrial applications requiring reliable wireless connectivity, robustness and flexibility. Compatible with the WiFi 4 (802.11b/g/n) standard, it supports Access Point, Client and Mesh (802.11s) modes with fast roaming, offering stable coverage and the ability to manage up to 50 simultaneous devices.

The compact structure integrates two 10/100 Mbps RJ-45 ports, one RS-232 (DB9) port, status LEDs, reset button and RP-SMA antenna. Power can be supplied via 3-pin connector or via Passive PoE 9-30 V DC, with reverse polarity and surge protection. It consumes less than 2W and features software protections such as firewall, WPA/WPA2/WPA3, MAC filters and remote management via Web or CLI.

The aluminum enclosure with DIN rail support ensures resistance and durability in harsh environments. With IP30 protection rating and an operating range of -40°C to +75°C, the DAP142 is suitable for demanding and critical industrial scenarios.

• Wireless Standard: IEEE 802.11b/g/n (WiFi 4)
• Modes: Access Point, Client, Mesh (802.11s) with fast roaming
• Simultaneous Connections: Up to 50 Devices
• Ports: 2 - RJ-45 10/100 Mbps, 1 - RS-232 (DB9), removable RP-SMA antenna
• Power Supply: 9-30 V DC via 3-pin connector or Passive PoE
• Maximum Power Consumption: <2 W
• Construction: Aluminum enclosure, DIN rail mounting
• Protection: IP30
• Operating temperature: -40 °C to +75 °C
• Dimensions: 113.1 - 68.6 - 25 mm
• Weight: approx. 0.149 kg

The CRPS 600W AC power supply for cnMatrix switches is a removable power supply designed to ensure continuity and reliability for compatible cnMatrix series switches. With a total power output of 600W and a PoE budget of up to 500W, it efficiently supports network-powered devices.

Designed for integration with the EX2052R-P, TX2012R-P, TX2020R-P, and TX2020RF-P switches, this power supply module from Cambium Networks is an ideal solution for professional environments requiring scalability and easy replacement. The AC version does not include a power cord. Main Features

• CRPS AC Power Supply
• Total Power 600 W
• PoE Budget up to 500 W
• Compatible with EX2052R-P, TX2012R-P, TX2020R-P, and TX2020RF-P
• AC Power Cord Not Included

The CRPS 930W AC power supply for cnMatrix switches is a removable power supply designed to ensure continuity and reliability for compatible cnMatrix series switches. With a total power output of 930W and a PoE budget of up to 840W, it efficiently supports network-powered devices.

Designed for integration with the EX2052R-P, TX2012R-P, TX2020R-P, and TX2020RF-P switches, this power supply module from Cambium Networks is an ideal solution for professional environments requiring scalability and easy replacement. The AC version does not include a power cord. Main Features

• CRPS AC Power Supply
• Total Power 930 W
• PoE Budget up to 840 W
• Compatible with EX2052R-P, TX2012R-P, TX2020R-P, and TX2020RF-P
• AC Power Cord Not Included

Cambium's 19-inch rack brackets for full-width switches are designed to securely and neatly install the cnMatrix EX1028, EX2028, EX2052, EX2016M-P, TX2020R-P, and TX2028RF-P models in professional rack cabinets. The kit also includes a wall-mount option, offering flexibility in integrating network equipment.

Key Features

• Compatible with EX1028, EX2028, EX2052, EX2016M-P, TX2020R-P, and TX2028RF-P
• 19-inch rack mounting kit
• Also suitable for wall-mounting
• Ideal for full-width cnMatrix switches

Cambium's 19-inch rack brackets for half-width switches are designed to neatly and securely install cnMatrix EX1010, EX1010-P, EX2010, and EX2010-P switches in professional racks. The kit allows for clean integration of the devices, facilitating assembly and improving IT infrastructure organization.

Key Features

• Compatible with EX1010, EX1010-P, EX2010, and EX2010-P models
• Dedicated kit for 19-inch racks
• Ideal for half-width switches
• Quick and stable installation

The Cambium Networks 720mm Power Cable with EU Plug is designed to ensure a safe and reliable connection between the power supply and the electrical network. Compatible with Cambium Networks PoE power supplies, it facilitates tidy and compliant European installation. The 720mm length offers flexibility for rack or wall placement, ideal for professional environments that require tidy and reliable power connections.

• Cable Length: 720mm
• EU Plug compliant with European standards
• Compatible with Cambium Networks PoE power supplies
• Rugged design for professional use
• Easy integration into rack or wall installations

The cnPilot e501S access point from Cambium Networks is designed for outdoor Wi-Fi applications that require directional coverage, radio isolation, and reliability in complex environments. Thanks to the internal high-gain sector antenna, the device focuses the signal in the desired coverage area, reducing interference and improving connection quality.

The dual-band 2.4 GHz and 5 GHz radio with 802.11ac 2x2 SU-MIMO support enables good performance even in medium- and high-density user scenarios. The IP67-rated enclosure and resistance to extreme temperatures make the cnPilot e501S suitable for continuous outdoor installations. Centralized management and cloud-readiness simplify network control and operations. Key Features

• Outdoor Wi-Fi access point with internal sector antenna
• Dual-band 2.4 GHz and 5 GHz 2x2 SU-MIMO radio
• Maximum PHY speed up to 300 Mbps at 2.4 GHz and 867 Mbps at 5 GHz
• Two auto-sensing Gigabit Ethernet ports
• Supports 802.3af or 802.3at PoE power supply
• High-gain antenna for directional coverage
• IP67 enclosure with UV protection
• Operating temperature range from -30°C to 60°C
• Cloud-ready management cnMaestro

The cnPilot e410 Indoor Wi-Fi Access Point from Cambium Networks offers high-performance connectivity for professional installations requiring reliability, speed, and advanced management. Support for the 802.11ac Wave 2 standard with MU-MIMO ensures high capacity, while integrated roaming, access control, and monitoring features improve the user experience in high-traffic environments. Key Features

• Dual-band Wi-Fi with the 802.11ac Wave 2 MU-MIMO standard.
• Management can be performed independently or via a cloud or local cnMaestro controller.
• Zero-touch onboarding for quick installations.
• Controller-less roaming for up to 2,048 clients.
• Guest access features with social login, vouchers, and payment gateways.
• WLAN service with service verification and SSID deactivation in the event of critical issues.
• Transmission power up to 25 dBm and certification DFS.
• Dynamic optimization with Airtime Fairness and AutoRF.
• Supports up to 256 simultaneous clients and 16 SSIDs.
• Dual on-board Active/Standby memory banks.
• Free controller with no licensing fees.

The Cambium Networks cnPilot e425H indoor wall plate access point supports 802.11ac Wave 2 beamforming, making it perfect for hotels and resorts, multi-unit homes, or any indoor location requiring a wall-mounted access point with multiple Gigabit Ethernet ports to handle indoor Wi-Fi and network access.

The cnPilot e425H can be managed by Cambium Networks' cnMaestro cloud controller or on-premises and offers zero-touch onboarding, inventory tracking, monitoring, configuration, dashboard views with alerts, updates, troubleshooting, and a splash page guest portal for wireless and wired ports.

Controller-less Roaming, Powerful Simplicity

The e425H supports roaming for up to 1,024 clients. The access point hosts the hotspot portal, which can be managed without a controller or via cnMaestro, providing a powerful network-wide portal.

Monetization: Vouchers, Social Login

Monetize your Wi-Fi service: cnMaestro's guest access feature supports splash page hosting, social login, and payment gateway for wired and wireless clients. Advanced integrated features are available directly on the controller. These features, combined with the ability to create time-, rate-, and volume-limited traffic profiles, as well as vouchers for temporary guest access, make the e425H ideal for hotels, cafes, campsites, and Wi-Fi.

A Better User Experience

Nothing is more frustrating than connecting to an access point, but not accessing the Internet because the WAN link is down. When the connection to a critical resource, such as an external gateway or AAA, is lost, the e425H monitors the uplink gigabit interface for network disruption. If a disruption is detected, the affected WLANs are disabled, allowing client devices to select a neighboring access point.

Wi-Fi Mesh: Flexibility

Meshing is supported on the e425H and any other Cambium Networks indoor or outdoor access point, making it a cost-effective way to expand Wi-Fi coverage without having to run cabling.

Coverage, Capacity, and Speed

The e425H provides high transmit power and all the flexible controls needed to manage transmit power for high-density deployments. Throughput management via airtime fairness, improved performance with autoRF, and faster client device speeds thanks to bandwidth management ensure that the e425H network can adapt to the dynamics of ever-changing client profiles.

High Density, High Availability

A maximum capacity of 100 simultaneous client associations and 16 SSIDs, along with two built-in active/standby memory banks, ensure that the e425H effectively combines high density with high availability.

Low Total Cost of Operations

All cnPilot access points offer complete management flexibility. The e425H can be managed as a standalone access point, by a local cnMaestro controller, or by a cnMaestro account with cloud access. cnPilot access points also support AutoPilot, allowing an access point to act as a controller for a small network.

Accessories

The e425H package comes with a wall mounting bracket.
