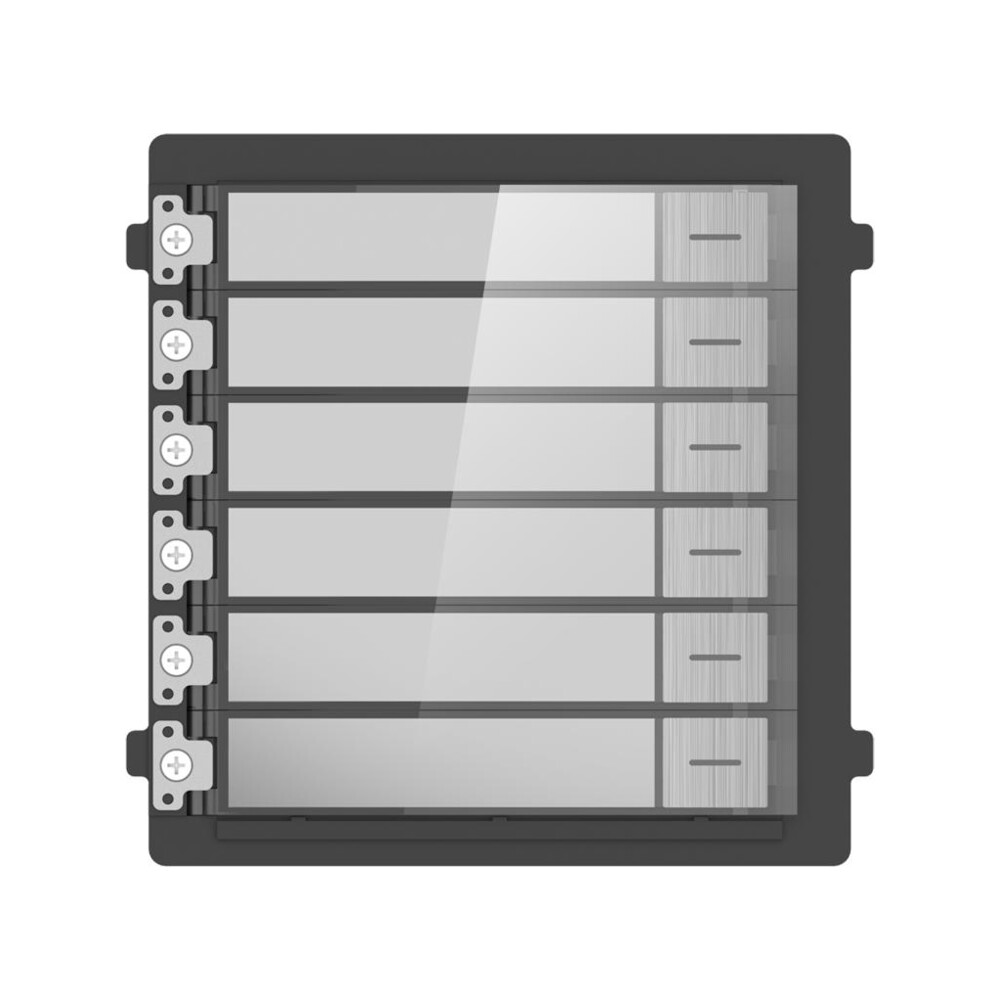

External name plate module for KD8 series

DS-KD-KK/S | Hikvision
The external name plate module for Hikvision's KD8 series integrates six call buttons with backlight compensation, making it easy to identify names. Its stainless steel construction, IP65 and IK07 protection ratings, and flush-mount or surface-mounted options make it suitable for outdoor environments.
Please login to view price
Request information
This product is subject to the promotion:
Buy Hikvision, Aikom rewards you Valid until December 31, 2026 Go to the promotion details
Description
Request information

Description

The external name plate module for the KD8 series allows you to expand a modular video intercom station with 6 call buttons. The backlight compensation behind the buttons makes it easier to identify names and makes the Hikvision module easy to use and expand.

The stainless steel construction and IP65 and IK07 protection levels allow it to be used in outdoor environments. The module supports flush-mounted or wall-mounted installation and features a high-performance embedded processor with a Linux operating system.

Main features

  • Name plate module for modular video intercom station
  • 6 call buttons
  • Backlight compensation behind the buttons
  • Stainless steel structure
  • IP65 protection and IK07 resistance
  • Flush-mounted or wall-mounted installation
  • Outdoor application environment
  • Linux operating system
  • High-performance embedded processor
  • TCP/IP and RTSP network protocols
  • 1 self-adaptive 10/100 Mbps RJ45 port
  • 2 RS-485 interfaces
  • 12 VDC power supply via another module
  • Power consumption of 0.8 W
  • Operating temperature -40°C to 55°C
  • Operating humidity 10% to 95%
  • Dimensions 98.5 x 100 x 34.2 mm
  • Net weight 265 g
