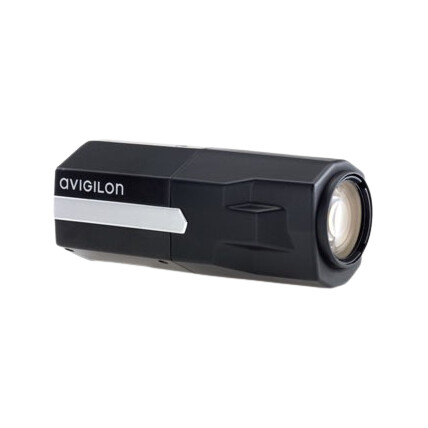

HD H.264 2MP 4.7-84.6mm camera
Description
The Avigilon 2MP 4.7-84.6mm HD H.264 camera is a high-definition IP video surveillance solution designed for installations requiring image quality, optical flexibility and efficient video management. It supports H.264 and Motion JPEG compression and uses a 1/3" progressive scan CMOS sensor with a resolution of 1920 x 1080.
The 4.7-84.6 mm F1.6 lens with P-Iris integrates remote focus and remote zoom, with a viewing angle of 3 degrees to 52 degrees. The Avigilon camera also offers day/night mode, a dynamic range of 69 dB and onboard storage via SD/SDHC/SDXC slot.
On the integration level, it has a 100BASE-TX network with RJ-45 connector, ONVIF Profile S compliance, advanced streaming protocols, Alarm In and Alarm Out terminals and power supply via PoE IEEE802.3af Class 3, 12 V DC or 24 V AC. The specifications also include a power consumption of 6 W, dimensions of 156 x 69 x 64 mm and a weight of 0.56 kg. kg.
Main Features
- 2 MP resolution with 1/3" progressive scan CMOS sensor.
- H.264 and Motion JPEG compression.
- 4.7-84.6 mm F1.6 lens with P-Iris.
- Remote focus and remote zoom.
- Viewing angle from 3 degrees to 52 degrees.
- Minimum illumination of 0.4 lux in color and 0.04 lux in monochrome.
- Dynamic range of 69 dB.
- Onboard storage via SD/SDHC/SDXC slot.
- 100BASE-TX network interface with RJ-45 connector.
- ONVIF versions 1.02 and 2.00 Profile S compliance.
- External Alarm In and Alarm terminals Out.
- Power supply: IEEE802.3af Class 3 PoE, 12 V DC or 24 V AC.
- Power consumption: 6 W.
- Dimensions: 156 x 69 x 64 mm.
- Weight: 0.56 kg.
