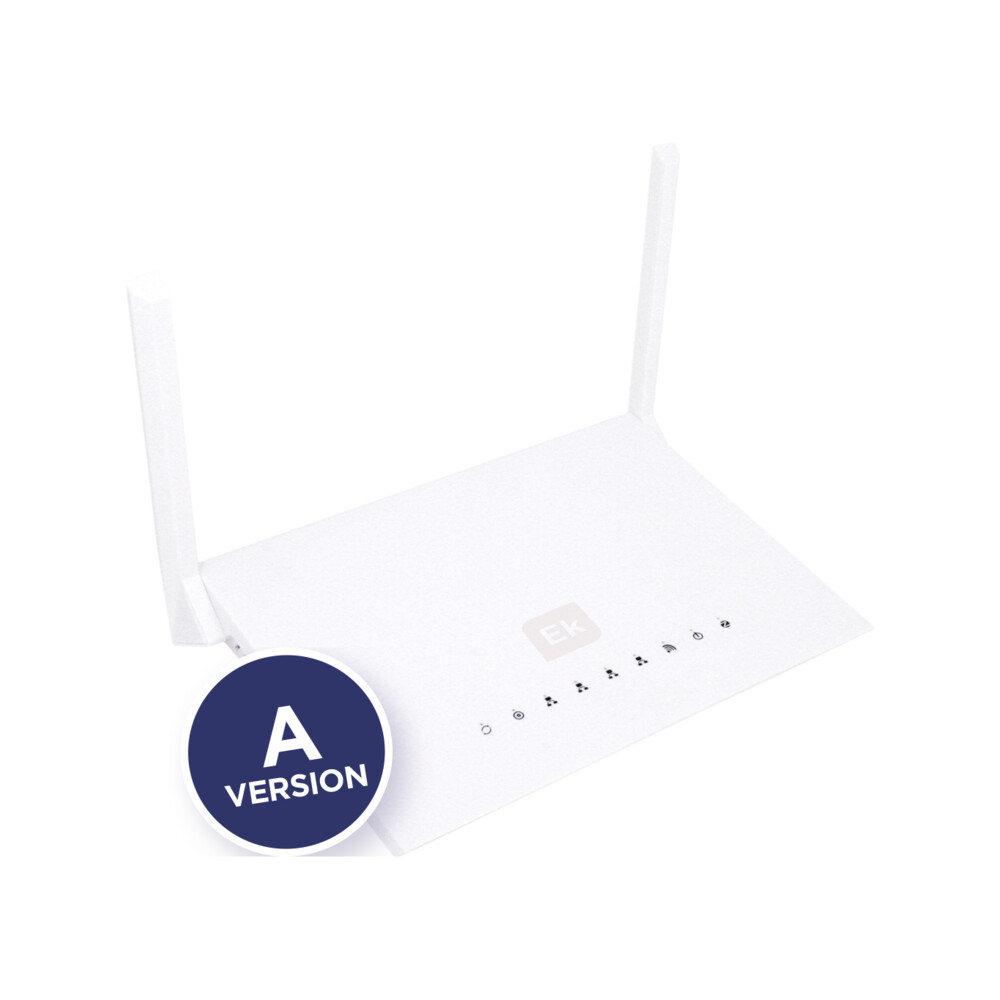

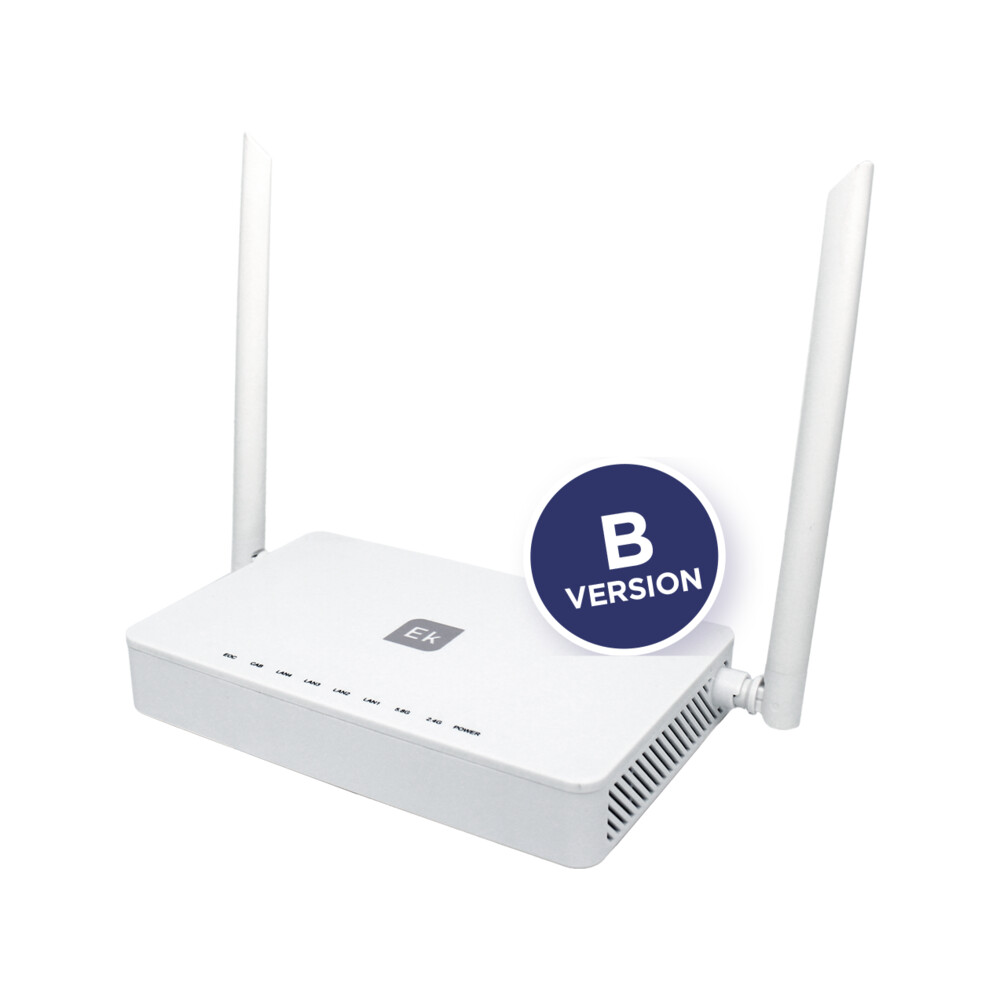

EKOAX Plus slave Wi-Fi module 4 RJ45 ports

250021 | Ekselans
The EKOAX Plus slave IPC AC module from Ekselans is designed for data reception over coaxial cable and integrates 4 10/100M RJ45 Ethernet ports, RF IN and RF OUT with F connector and dual-band Wi-Fi at 2.4 GHz and 5 GHz. The Ekselans solution supports Router or Bridge mode, WEB CLI and SNMP management, AES-128 encryption and IEEE P1901 and HomePlug AV standards for flexible and controlled data distribution.
Please login to view price
Request information
Description Attachments
Request information

Description

The EKOAX Plus slave IPC AC module from Ekselans is a solution for data reception over coaxial cable, designed to integrate Ethernet and Wi-Fi connectivity in a single device. It supports EOC IEEE P1901 and HomePlug AV standards, has 4 10/100M RJ45 Ethernet ports and RF IN and RF OUT connections with F connector, offering a structure suitable for data networks distributed over coaxial infrastructure.

From an operational standpoint, the device works in TDMA or CSMA mode with AES-128 encryption and is managed via WEB, CLI, and SNMP. Ekselans also integrates software functions such as VLAN, QoS, bandwidth control and broadcast storm limitation, while the Wi-Fi part operates in Router or Bridge mode with 2 antennas at 2.4 GHz and 2 antennas at 5 GHz.

Wi-Fi performance includes throughput up to 300 Mbps in IEEE802.11n and up to 800 Mbps in IEEE802.11ac, with support for channels 1-13 for 2.4 GHz and 36-165 for 5.8 GHz. The device uses 12 Vdc power with consumption less than 5 W.

Main features

  • EKOAX Plus slave module for data reception on coaxial cable
  • Item code 250021
  • EOC IEEE P1901 and HomePlug AV standard

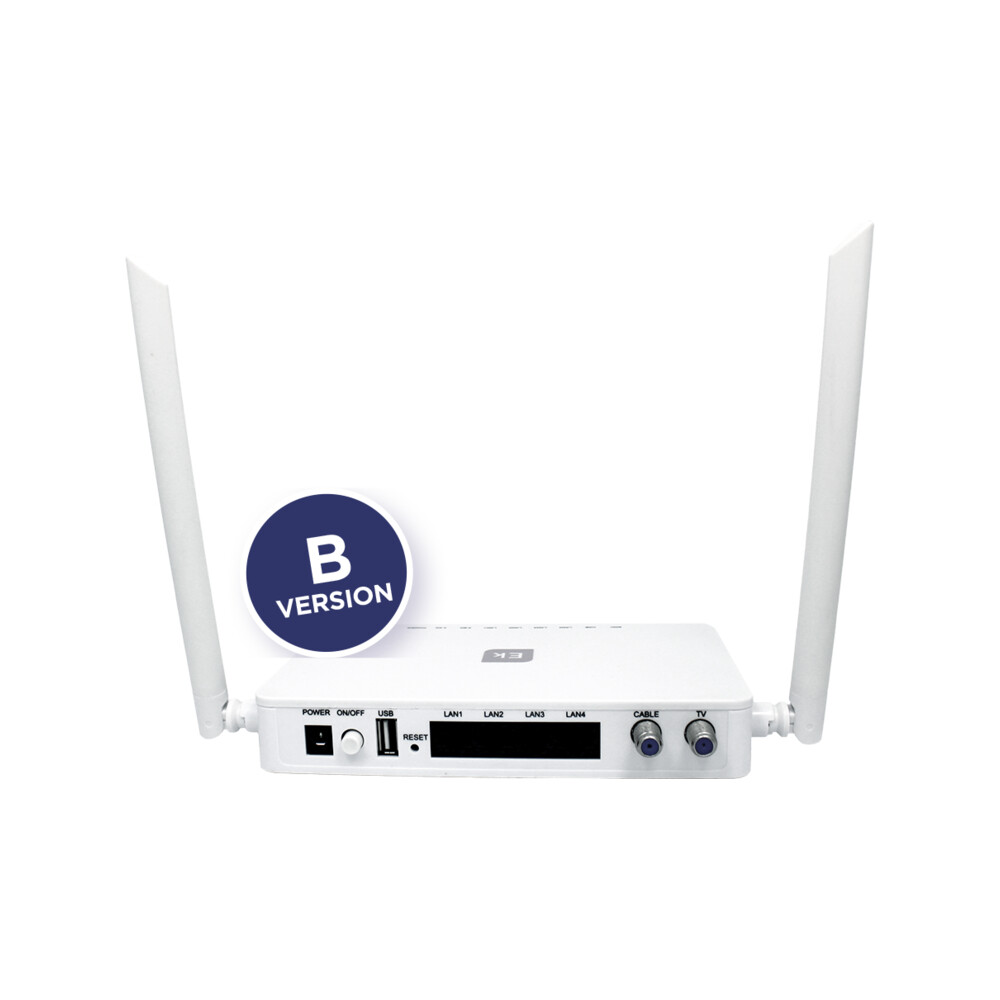

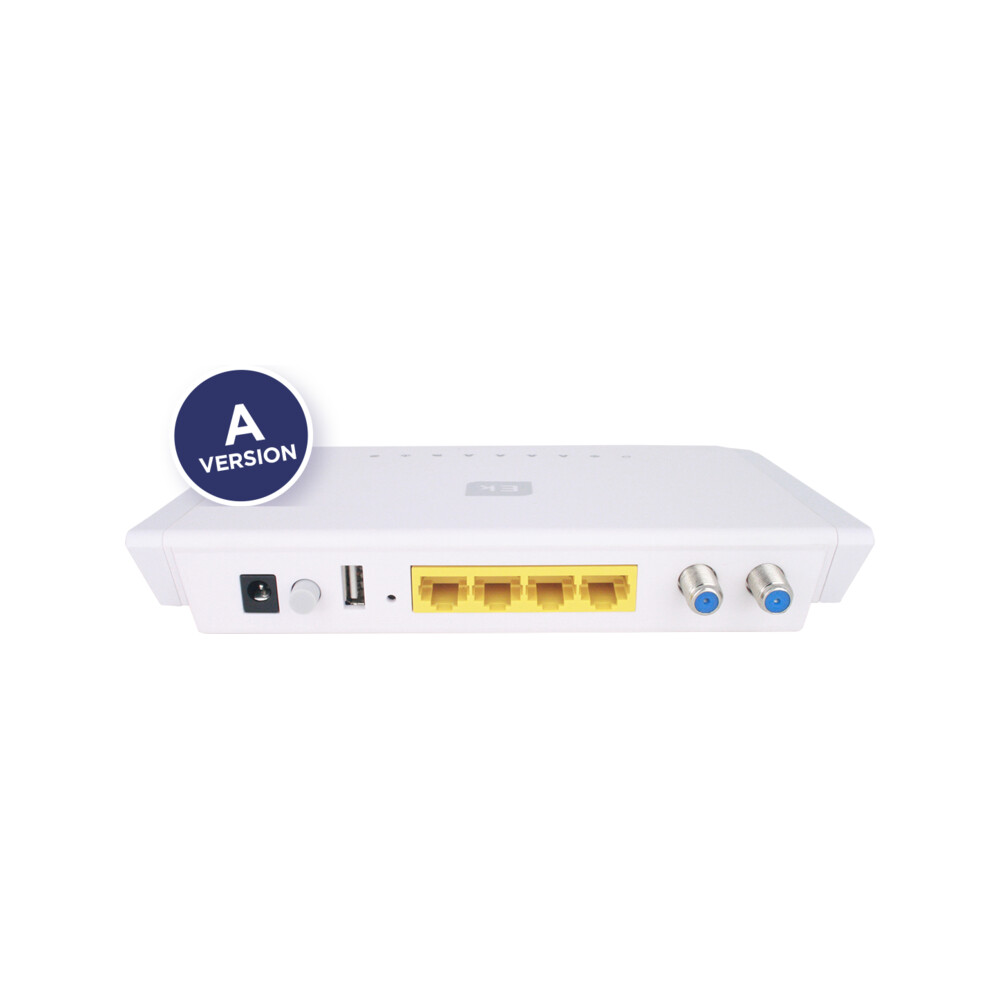

  • 4 Ethernet ports 10/100M with RJ45 connectors
  • 1 RF IN and 1 RF OUT with F connector
  • Dual-band Wi-Fi at 2.4 GHz and 5 GHz
  • Router or Bridge operating modes
  • 2 antennas at 2.4 GHz and 2 antennas at 5 GHz
  • Wi-Fi throughput up to 300 Mbps in IEEE802.11n and up to 800 Mbps in IEEE802.11ac
  • TDMA and CSMA operating modes
  • AES-128 encryption and Wi-Fi security 802.11i with WEP-64/128, TKIP WPA-PSK and AES WPA2-PSK
  • Management via WEB, CLI and SNMP
  • Software functions VLAN, QoS, bandwidth control and broadcast limitation storm
  • 12 Vdc power supply with consumption less than 5 W
