H5A 4 x 8 MP 3.3-5.7 mm Multi-Sensor Camera
Description

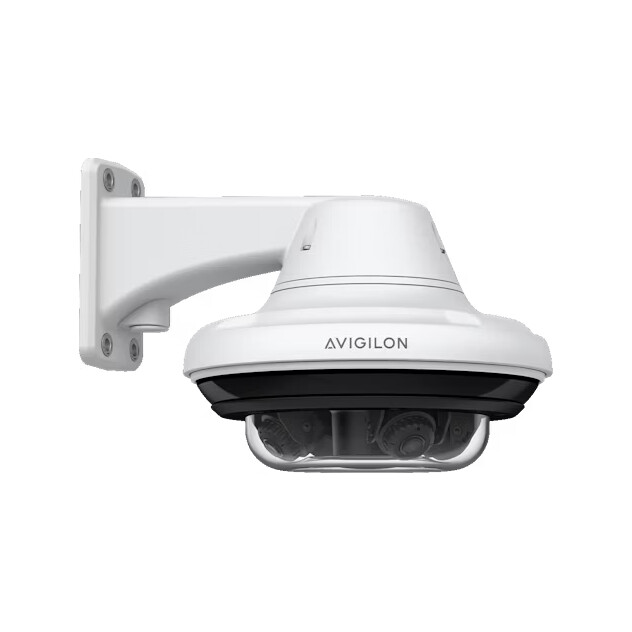

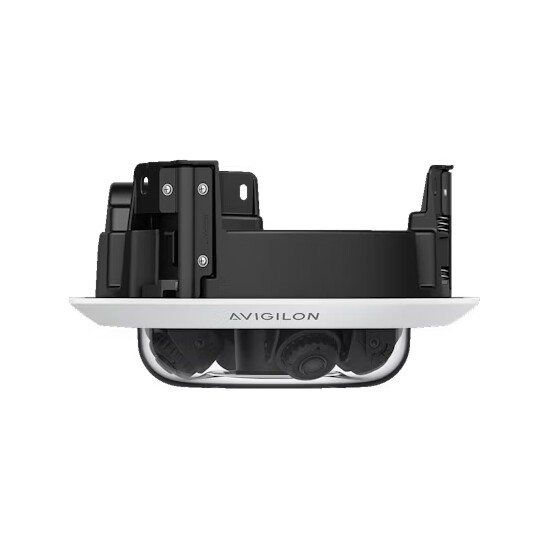

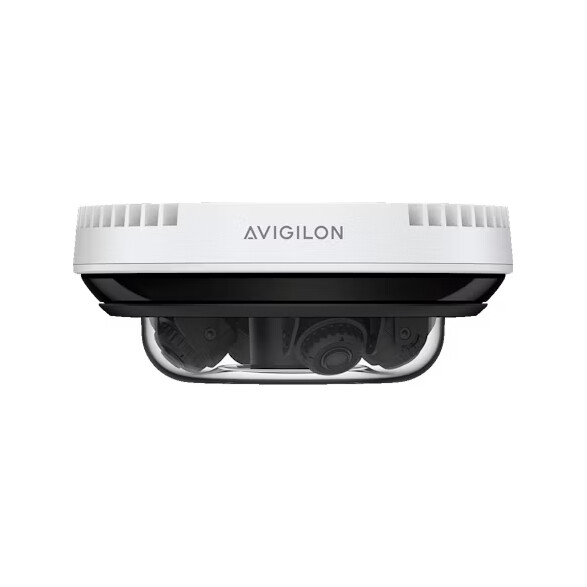

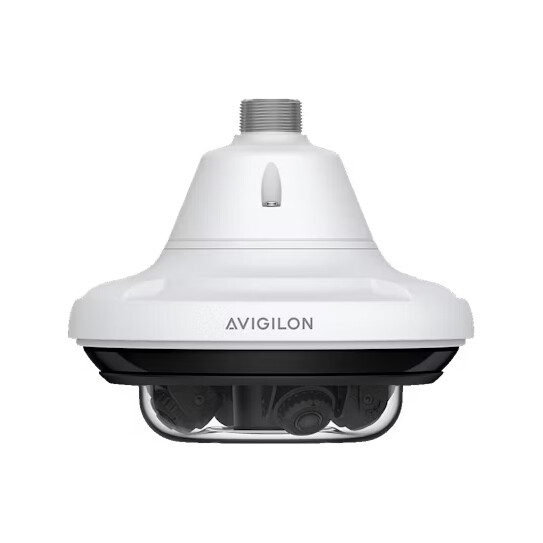

The H5A 4 x 8 MP 3.3-5.7 mm Multisensor Camera is a camera module designed for versatile installations thanks to the modular design of the H5A Multisensor Series. Avigilon offers the module with a matching mounting adapter and dome cover to accommodate a variety of installation scenarios.
This version integrates four 8 MP sensors with a maximum 360-degree field of view and 3.3-5.7 mm lenses for each sensor, with remote focus and zoom. The camera supports true WDR up to 120 dB with double exposure, H.264 HDSM SmartCodec, H.265 HDSM SmartCodec and Motion JPEG compression, as well as advanced networking and security features such as TLS1.3, secure boot and built-in FIPS140-2 Level 3 TPM.
Operational benefits also include the optional 850 nm IR illuminator with a maximum range of 30 m at 0 lux, Gigabit Ethernet connection, dual MicroSD slots and audio support with line-level input and output.
Key Features
- H5A Multisensor Camera Module with 4 x 8 MP sensors.
- Maximum 360-degree field of view.
- 3.3-5.7 mm lens for each sensor.
- Remote focus and zoom with fixed iris.
- True WDR up to at 120 dB with double exposure.
- Multi-stream H.264, Multi-stream H.265 and Motion JPEG streaming.
- Minimum illumination down to 0 lux with optional IR illuminator.
- Optional 850 nm IR illuminator with range up to 30 m.
- Gigabit Ethernet network with RJ-45 connector and CAT5E cabling.
- Security with signed and encrypted firmware, HTTPS, TLS1.3 and integrated TPM FIPS140-2 Level 3.
- Dual slots for MicroSD, microSDHC and microSDXC.
- Line-level audio input and output and alarm I/O.
