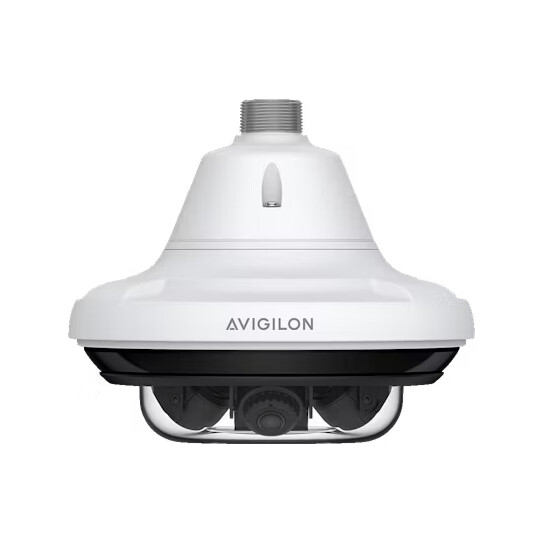

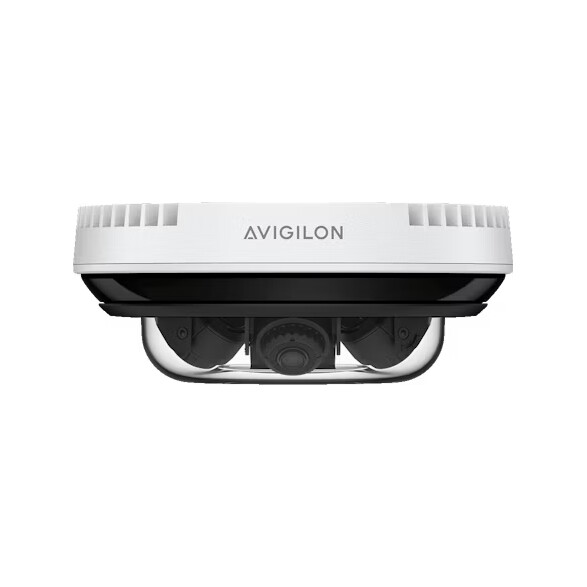

H5A 3x8 MP 3.3-5.7 mm multi-sensor camera
Description

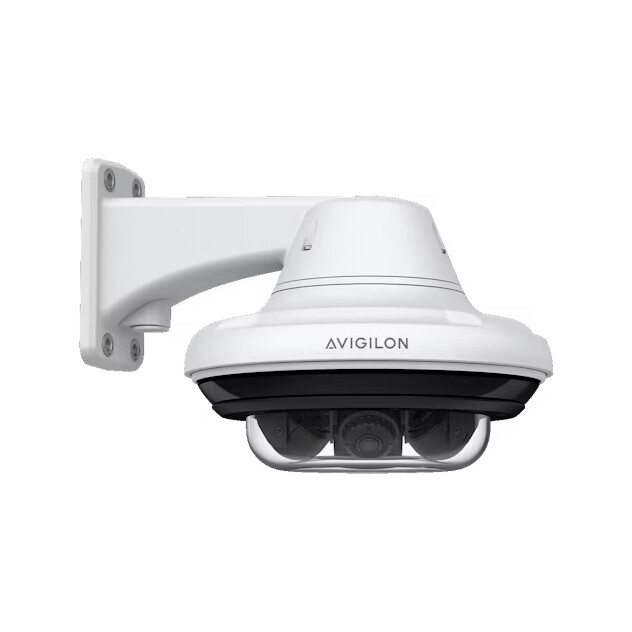

The Avigilon H5A 3x8 MP 3.3-5.7 mm Multisensor Camera is a camera module from the H5A Multisensor range designed for versatile installations thanks to its modular design, which allows for combination with various mounting adapters and the corresponding dome cover. This version integrates three 8 MP sensors, LightCatcher technology, WDR, and a maximum 270-degree field of view.
Each sensor uses a 3.3-5.7 mm lens with a fixed iris and supports remote focus and zoom. The camera reaches a maximum resolution of 11520 x 2160 in 16:9 format with 3 sensors, offers true WDR up to 120 dB with double exposure and supports multi-stream H.264, multi-stream H.265 and Motion JPEG.
Avigilon also integrates Gigabit Ethernet connectivity, dual MicroSD slots, USB 2.0 port, line-level audio input and output and an external I/O terminal. On the security front, there is signed and encrypted firmware, 802.1x port-based authentication, TLS1.3 and FIPS140-2 Level 3 via integrated TPM.
Key Features
- H5A Multisensor Camera Module with 3 x 8 MP sensors
- Maximum field of view of 270 degrees
- Focal length 3.3-5.7 mm for each sensor
- LightCatcher technology and true WDR up to 120 dB
- Maximum resolution 11520 x 2160 in 16:9 format with 3 sensors
- Minimum illumination of 0.020 lux in color and 0 lux with optional IR illuminator
- Multi-stream H.264 streaming, multi-stream H.265 and Motion JPEG
- Focus and zoom remote
- Gigabit Ethernet network with RJ-45 connector and CAT5E cabling
- Dual MicroSD slot, USB 2.0 port, audio line in/out and external I/O
