NVR6 Standard Form D 16TB
Description
The NVR6 Standard Form D 16 TB is a network video recorder designed to handle intensive video workloads and flexible retention requirements, while maintaining high performance and reliability. In this configuration, Avigilon offers 16 TB of capacity with 24 TB raw storage, along with Windows Server 2022 LTSC and ACC 7 factory-installed, for a ready-to-use platform for professional video surveillance environments.

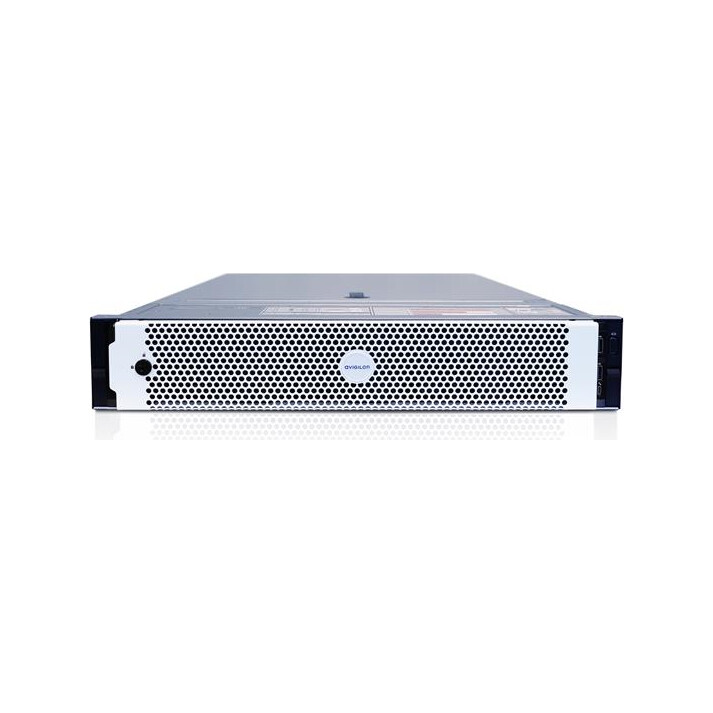

The system is part of the NVR6 series, designed to simplify server deployment with a pre-set and optimized configuration. The Standard Form D model uses a 2U rack chassis with dimensions of 721.6 x 482.0 x 86.8 mm and a weight of 28.6 kg when fully populated with hard drives.
In terms of performance, the Avigilon NVR6 Standard Form D offers up to 800 Mbps recording and up to 800 Mbps live streaming over a non-teamed 1GbE network, with support for up to 120 channels of both recording and live streaming. Playback speeds of up to 600 Mbps and up to 80 channels are supported. Power is provided by a single 1400W power supply, with the option for redundant power supply available.
Key Features
- 16 TB capacity with 24 TB raw.
- Windows Server 2022 LTSC and ACC 7 pre-installed from the factory.
- Up to 800 Mbps recording performance over a 1GbE unteamed network.
- Up to 800 Mbps live streaming performance over a 1GbE unteamed network.
- Supports up to 120 recording channels and up to 120 live streaming channels.
- Playback up to 600 Mbps with up to 80 channels.
- 2U Form D rack format.
- Dimensions 721.6 x 482.0 x 86.8 mm.
- Weight 28.6 kg with hard drives installed.
- Single 1400 W power supply with redundant option.
- 5-year NBD warranty with onsite parts delivery and upgrade options available.
