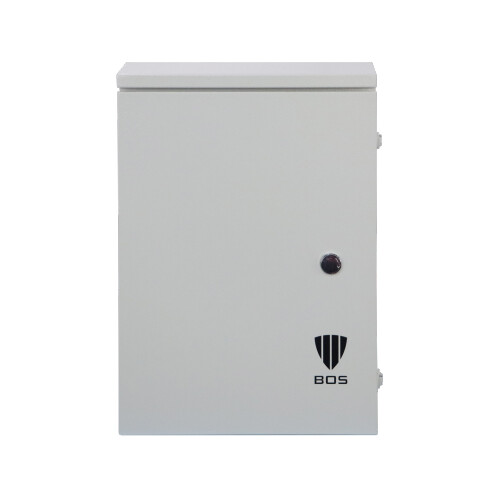

48V IP54 backup power station

BS-BBAL00PCV1 | BOS Italy
The IP54-rated, tamper-proof steel BOS backup power station integrates a 48V DC output for third-party switches, an optical cassette for 4 fibers, and a maximum PoE budget of 200W. The Smart Controller and included software enable remote management of battery, temperature, fans, humidity, alarms, and power outputs, making it easy to monitor and maintain the infrastructure.
Please login to view price
Request information
Description Attachments
Request information

Description

The BOS backup power station is designed to power third-party switches via a 48 V DC output. The tamper-resistant, powder-coated galvanized steel cabinet offers IP54 protection and IK10 resistance, with a side DIN rail for the switch and an optical drawer equipped with 4 blue LC sockets.

The Smart Controller allows you to check the battery status, internal temperature, and power outputs, as well as send alarms for offline battery, voltage, temperature, and door opening. The included software supports remote monitoring, geo-localization, updates, email notifications, user management, and system log viewing.

Key Features

  • Primary Power: 230V AC with screw terminal.
  • Switch Power: 1 x 48V DC output for third-party switches.
  • PoE Budget: Maximum 200W.
  • Supported Battery: 12V DC lead-acid battery not included, with 1A charging capacity.
  • Controllable Outputs: 3 x 12V DC outputs, 3A each, remotely controllable.
  • System Outputs: 1 x 12V DC output for fan control and 1 x 12V DC output for the backlight courtesy.
  • Connectivity: 1 RJ45 port for the Smart Controller and optical drawer with 4 blue LC sockets included.
  • Alarm inputs: Door opening control and support for optional flood sensor.
  • Electrical protection: 10 A circuit breaker on the primary circuit, 20 kA surge arrester and 16 A circuit breaker on the battery circuit.
  • Installation: Lateral DIN rail, provision for floor base and 230 V AC service multi-socket.
  • Structure: Powder-coated galvanized steel according to UNI EN ISO 12944 C3-H, lock with toothed key and 2 lateral lever locks.
  • Protection: IP54 rating and resistance IK10.
  • Operating conditions: Operating temperature from -20 °C to 70 °C and humidity from 0 to 90 %.
  • Dimensions: 560 x 380 x 220 mm.
  • Weight: 14.48 kg net and 17.22 kg gross.
  • Compliance: Complies with EN IEC 61439-3:2024 and the EMC, RoHS and LVD directives.
