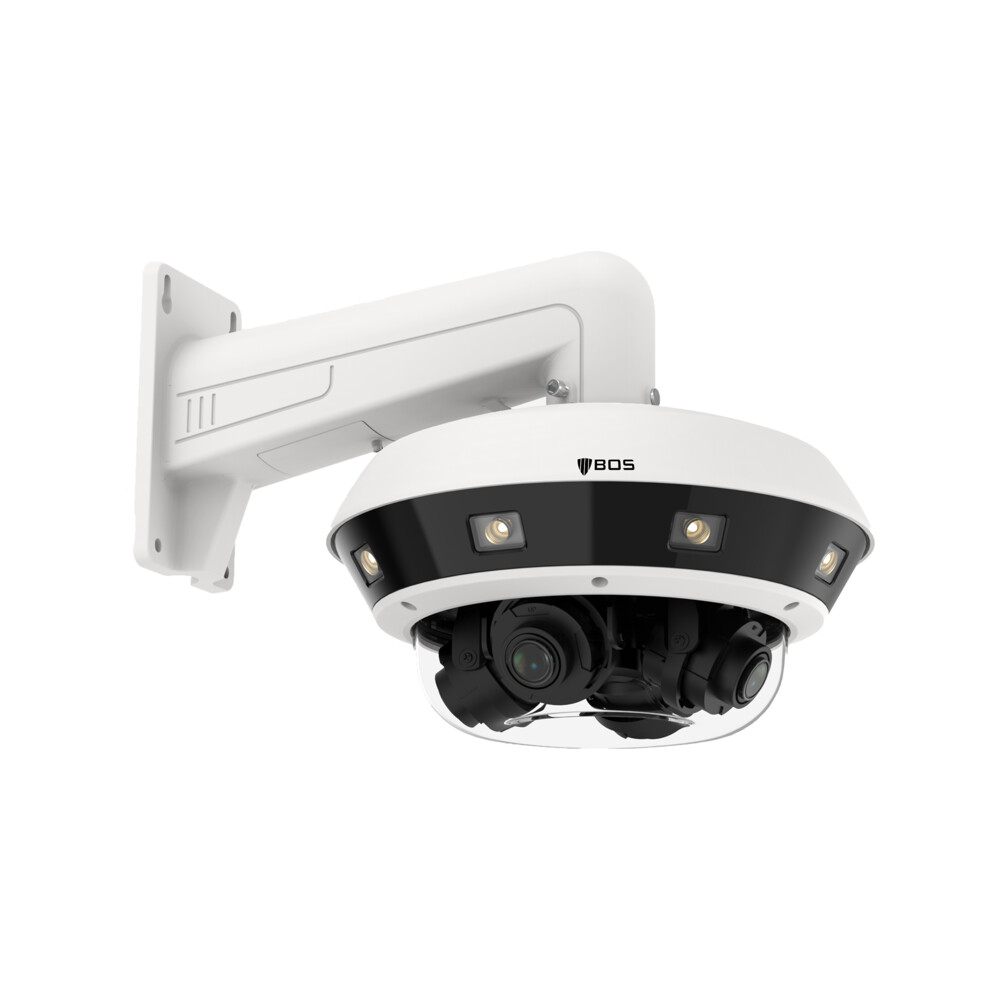

4 x 5 MP PoE Multi-Sensor Camera
Description
The multi-sensor camera offers a maximum resolution of 20 MP thanks to 4 5 MP Progressive Scan CMOS sensors with manually adjustable position for each sensor. The BOS solution supports 4 autofocus lenses from 2.8 - 12 mm, frame rate up to 25 fps at 5 MP, H.265, H.264, H.264+ and H.265+ compression, as well as multiple streaming with up to 4 profiles for flexible management of video streams.
Designed for professional applications, it integrates 120 dB WDR, minimum illumination up to 0.006 Lux in color and 0.002 Lux in black and white, Smart IR LEDs with a range of 35 m and white LEDs with a range of 25 m. BOS also includes independent video analytics for each module, micro SD storage up to 256 GB with failover, ONVIF profile S, G and T interface and IP66, IK10 and NEMA 4X protection.
Main Features
- Maximum resolution 20 MP with 4 1/2.7 Progressive Scan CMOS sensors
- 4 autofocus lenses from 2.8 - 12 mm
- Up to 25 fps at 5 MP
- Video compression H.265, H.264, H.264+ and H.265+ with MJPEG on the Sub Stream
- Multiple streaming up to 4 profiles
- WDR 120 dB and 3D Noise Reduction
- Minimum illumination 0.006 Lux in color and 0.002 Lux in black and white
- Smart IR LED with 35 m range and 25 m range white LEDs
- Advanced video analytics with face recognition, human and vehicle detection, line crossing, perimeter intrusion, heat map and crossing counting
- Micro SD slot up to 256 GB with failover
- RJ-45 10/100/1000 BASE-T Ethernet port
- IEEE802.3af Class 3 PoE power supply
- IP66, IK10 and NEMA 4X ratings
