80W Solar Panel Kit with 12V 40Ah Battery
Description

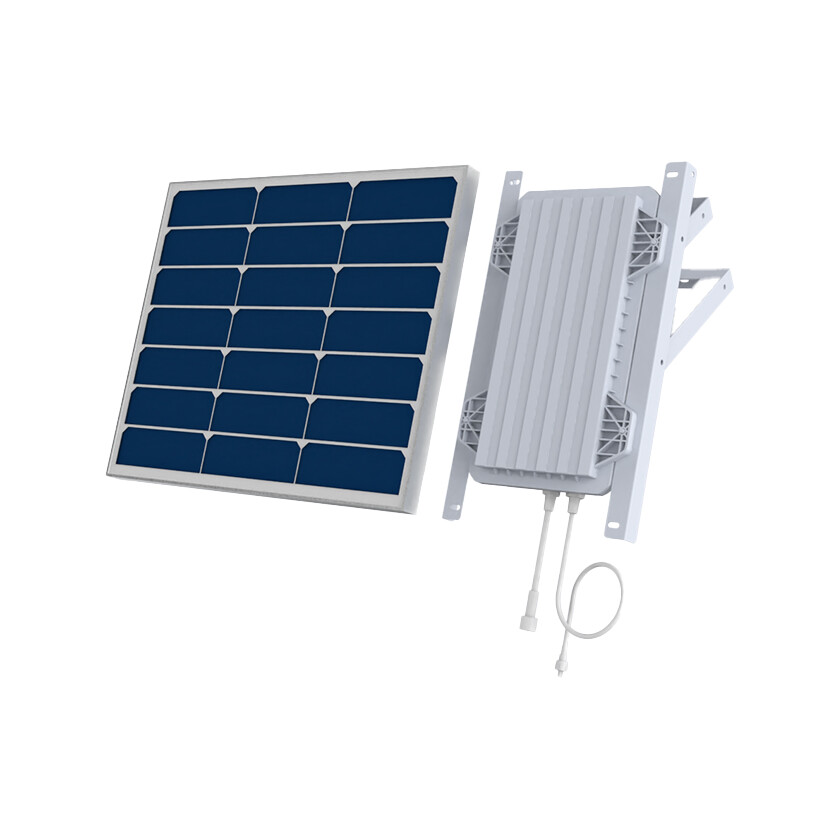

The 80W solar panel kit with 12V 40Ah battery is a BOS solution designed for outdoor power supply, featuring an 80W solar panel and an integrated 40Ah battery pack. The system provides 12V DC power and uses Class A monocrystalline silicon cells combined with lithium-ion batteries, offering a compact solution for video surveillance applications.
Thanks to the SOC algorithm, the BOS kit can intelligently adapt to variations in the PV panel's charging current and automatically recalibrate the configuration based on power generation conditions. The battery module also integrates protection functions against overcharge, overdischarge, overcurrent, overtemperature, and short circuit, as well as an intelligent heating function for operation at low temperatures.
The kit is ready for installation and comes with accessories for mounting on a pole or wall. For scalability needs, up to 8 kits can be connected in parallel to power the same device.
Main features
- 80 W solar panel with 18 V peak voltage
- Integrated 40 Ah lithium-ion battery pack
- 12 Vdc output power supply
- Class A monocrystalline silicon
- RS485 communication
- Maximum charging current 10 A
- SOC algorithm for intelligent charge calibration
- Protection against overload, overdischarge, overcurrent, overtemperature and short circuit
- Protection degree IP66 according to datasheet and IP67 according to brochure
- Working temperature from -20 °C to +65 °C according to datasheet, with 100% energy delivery indication from -20 °C to +60 °C and discharge up to -30 °C in the brochure
- Dimensions 765 x 480 x 70 mm
- Weight 10 kg according to datasheet and 10.5 kg according to brochure

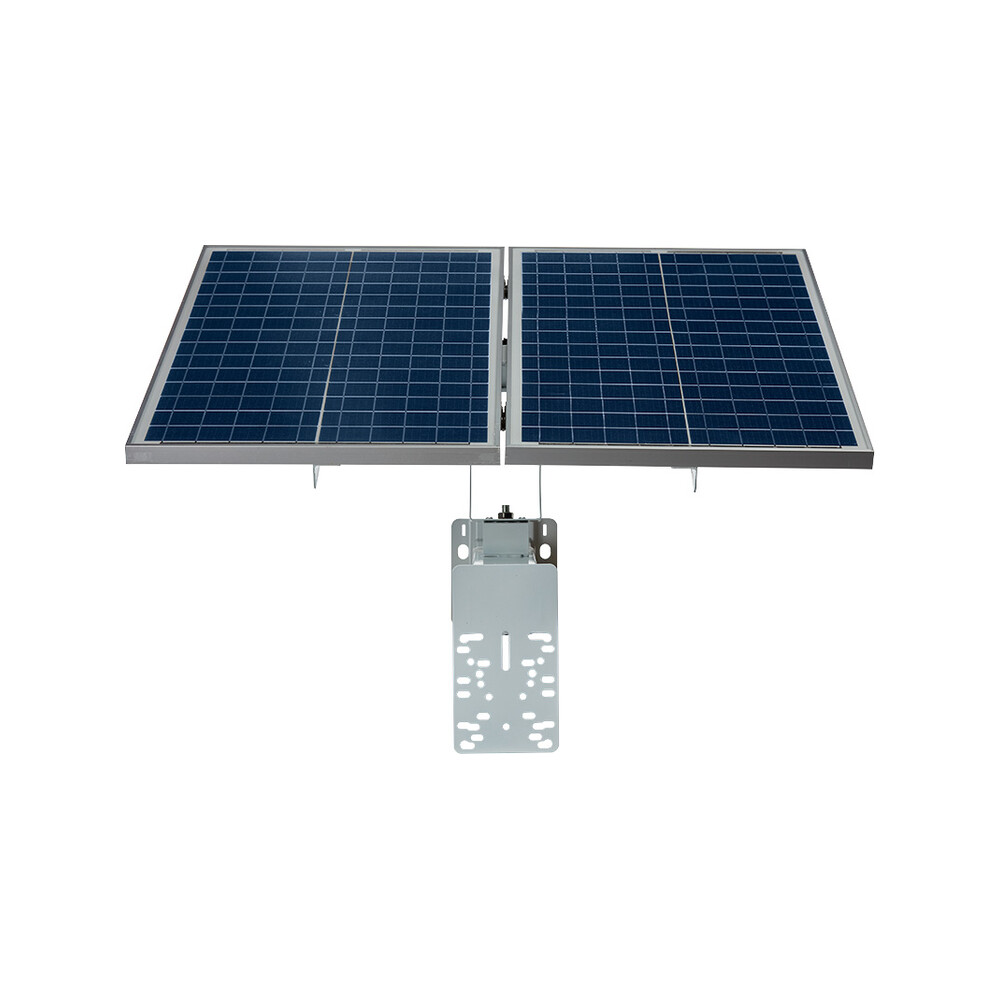

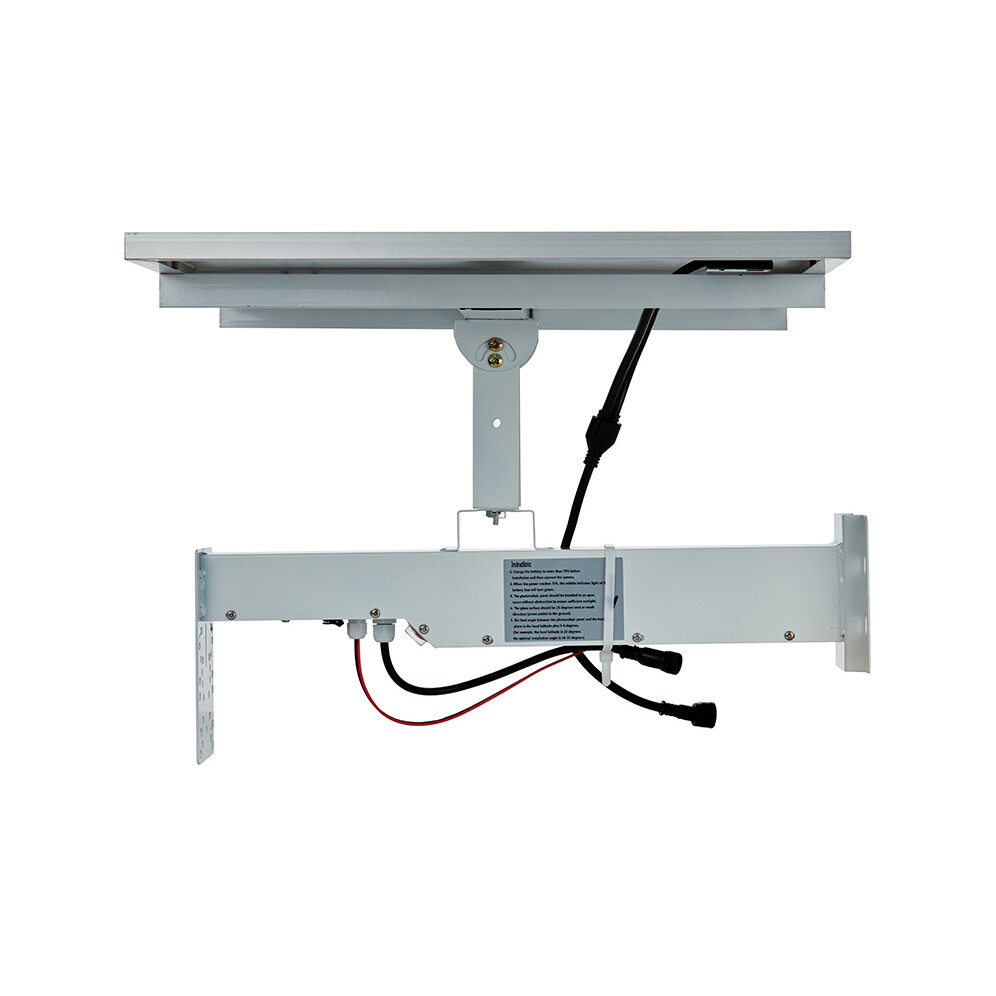

- Pole or wall installation
- Parallel connection up to 8 kits
