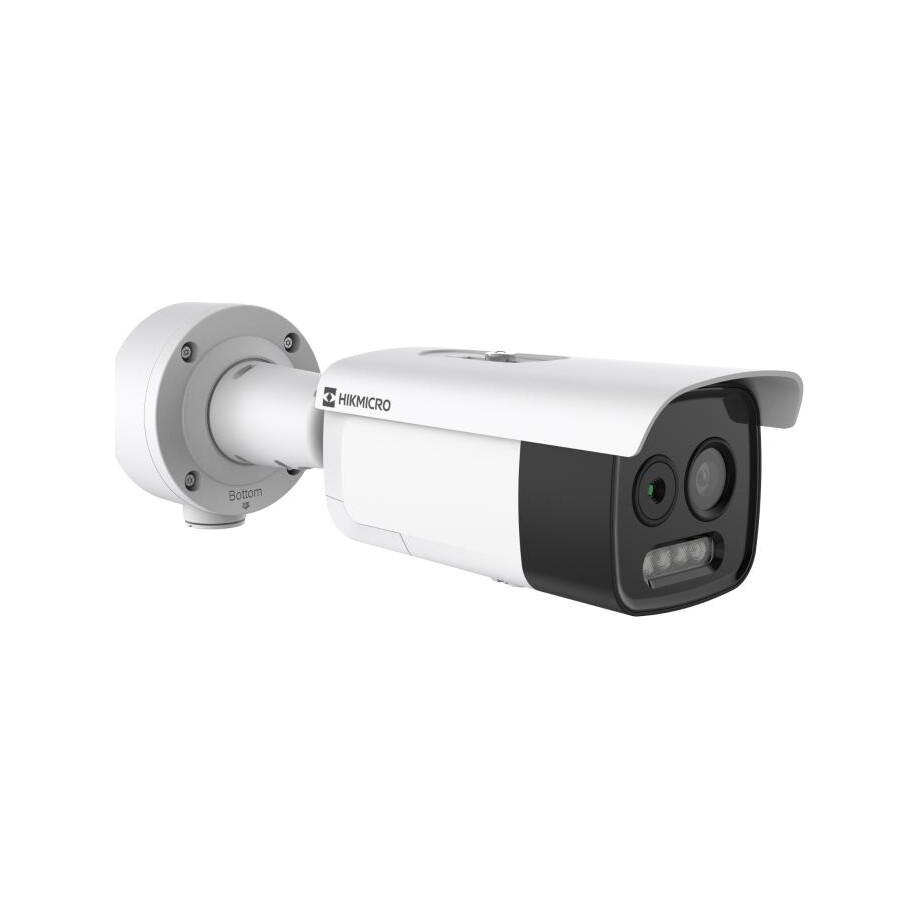

Bi-spectrum thermal and optical bullet camera
Description
The Bi-spectrum thermal and optical bullet camera integrates a 256 x 192 pixel thermal sensor with a 6.9 mm lens and a 5 MP optical module with an 8 mm lens. HIKMICRO's AI GUANLAN model improves perimeter protection through precise detection of people and vehicles, reducing false alarms.
Bi-spectrum image fusion and Picture-in-Picture mode facilitate event verification. The camera also supports temperature measurement, thermal anomaly alarms, and dynamic fire and smoke detection. Hybrid IR and white light illumination reaches 60 m, while audible and visual alerts encourage immediate response.
IP67 IK10 protection, operation from -40 °C to 65 °C and PoE power supply make the device suitable for monitoring villas, communities, parking lots, warehouses and construction sites.
Main Features
- Uncooled VOx UFPA thermal sensor with a resolution of 256 x 192 pixels.
- Pixel pitch of 12 micrometers and NETD less than or equal to 25 mK.
- 6.9 mm thermal lens with a field of view of 24.9° x 18.7°.
- 5 MP optical module with a resolution of 2688 x 1944 pixels.
- 8 mm optical lens with F1.6 aperture and WDR 120 dB.
- Bi-spectrum image fusion and Picture in Picture mode.
- AI analysis for line crossing, intrusion, entry and exit from a region.
- Support for up to 8 VCA rules in total.
- Temperature measurement from -20 °C to 150 °C with an accuracy of plus or minus 8 °C.
- Point, area and line measurement, with up to 21 rules.
- Dynamic detection of up to 10 fire points and smoke detection algorithm.
- Hybrid IR, white light and Smart mode illumination with a range of up to 60 m.
- Audio and visual alarms with adjustable flash frequency.
- H.265, H.264 and MJPEG video compression.
- Local storage on MicroSD, SDHC and SDXC and support NAS.
- 10M/100M RJ45 Ethernet interface and half-duplex RS-485 interface.
- Two alarm inputs and outputs, one audio input and output.
- 12 VDC power supply or PoE 802.3at class 4, with a maximum consumption of 16 W.
- IP67 IK10 protection and operation from -40 °C to 65 °C.
- Dimensions: 349.1 x 113 x 105 mm and weight: 1710 g.
