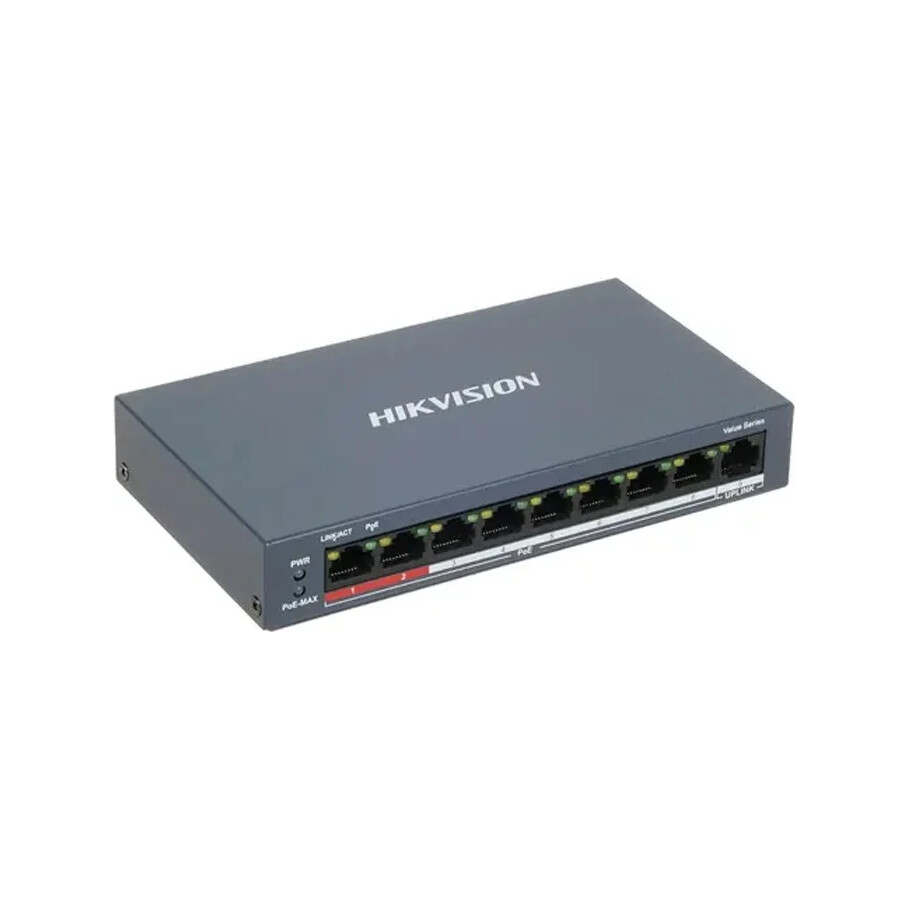

Unmanaged PoE switch 8 Fast Ethernet ports

DS-3E0109P-E/M | Hikvision
Hikvision's 8-port Fast Ethernet PoE unmanaged switch integrates eight 10/100 Mbps PoE ports and one 10/100 Mbps RJ45 port, with a 60W PoE budget. Long range transmission up to 300 m, intelligent power management, VIP port and 6 kV surge protection improve reliability and continuity in video transmission.
Please login to view price
Request information
This product is subject to the promotion:
Acquista Hikvision, Aikom ti premia Valida fino al 31 dicembre 2026 Go to the promotion details
Description
Request information

Description

Designed for video transmission, the Hikvision 8-Port Fast Ethernet PoE Unmanaged Switch combines eight 10/100 Mbps PoE ports with one 10/100 Mbps RJ45 port. Support for IEEE 802.3af and IEEE 802.3at standards, a total PoE budget of 60 W and a maximum power output of 30 W per port allow you to power connected devices over the network cable.

Long Range mode allows a maximum distance of 300 m on ports 1 to 8, while the VIP port protects the transmission of important data in case of network congestion. Intelligent PoE management intervenes when power exceeds the limit, helping to extend the life of the switch.

Key Features

  • Eight 10/100 Mbps PoE ports.
  • One 10/100 Mbps RJ45 port.
  • Total PoE budget of 60 W.
  • Maximum power of 30 W per port.
  • Long Range transmission up to 300 m on ports 1 to 8.
  • Support for IEEE 802.3af and IEEE 802.3at standards.
  • Intelligent PoE power management.
  • Adaptive 4- or 8-wire power to reduce cable losses.
  • VIP port to protect important data during network congestion.
  • Surge protection of 6 kV.
  • Switching capacity of 1.8 Gbps.
  • Forwarding rate of 1.34 Mpps.
  • 2K MAC table and 1 Mbit internal cache.
  • Metal frame for wall or desktop installation.
  • Dimensions of 170 x 27.6 x 93.1 mm and net weight of 0.35 kg.
  • Maximum consumption of 65 W and idle consumption of 5 W.
