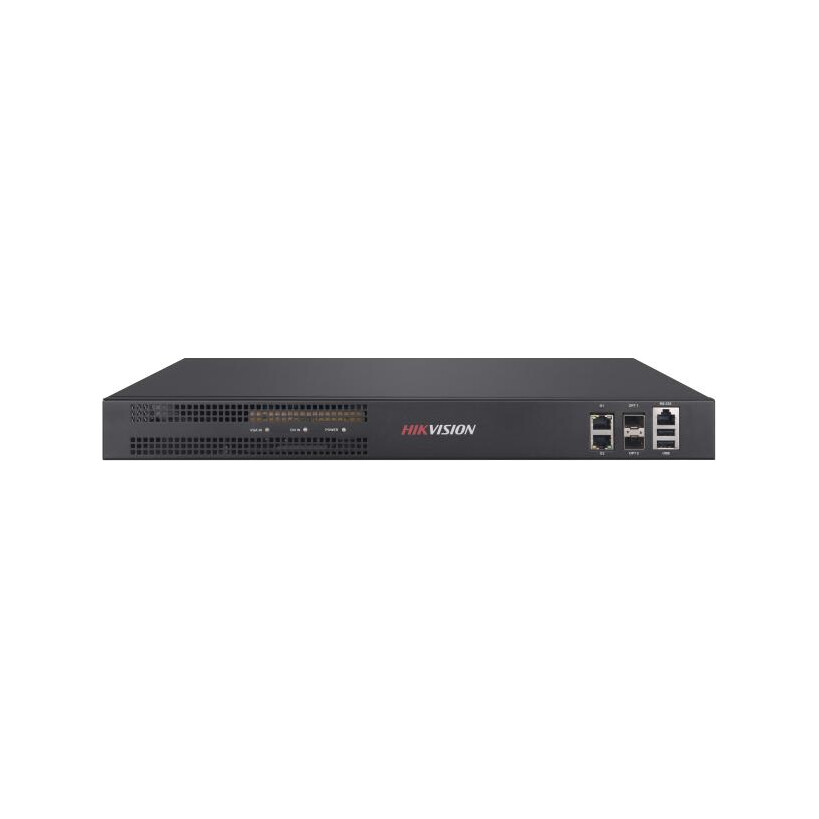

4K Video Decoder 64 Channels 8 HDMI Outputs

DS-6908UDI | Hikvision
Hikvision's 64-channel 4K video decoder features 8 HDMI outputs, 4 BNC outputs, and decoding capabilities of up to 24 MP. It supports video walls, screen splitting, multi-screen control, two-way audio, and streams captured via URL and RTSP.
Please login to view price
Request information
This product is subject to the promotion:
Buy Hikvision, Aikom rewards you Valid until December 31, 2026 Go to the promotion details
Description Attachments
Request information

Description

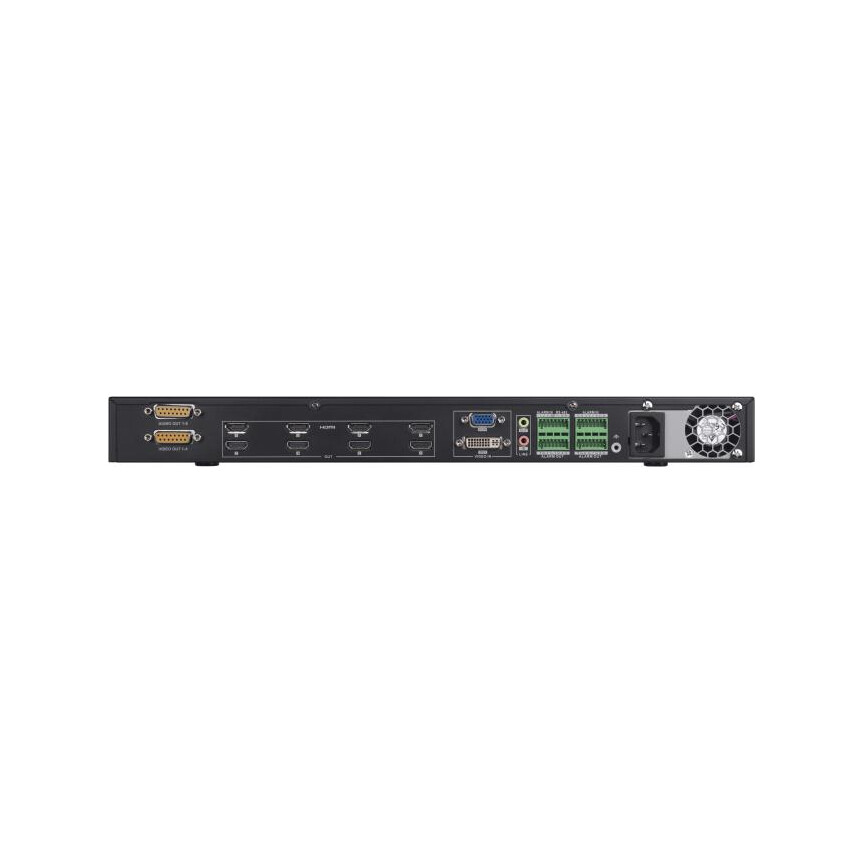

Hikvision's 64-channel 4K video decoder allows you to manage and display video streams on video walls via 8 HDMI outputs and 4 BNC outputs. The HDMI outputs support a maximum resolution of 3840 x 2160 at 30 Hz on odd-numbered interfaces, while decoding capacity reaches 24 MP in 3-track encoder mode.

The device offers active and passive decoding modes, remote video file playback, and stream ingestion via URL and RTSP. Window opening, moving, and splitting functions make it easy to set up regular and irregular virtual screens with multiple video sources.

Key Features

  • Up to 64-channel decoding.
  • Up to 24MP decoding resolution in 3-track encoder mode.
  • 4-channel decoding capability at 24MP and 30fps.
  • 8-channel decoding capability at 12MP and 20fps.
  • 16-channel decoding capability at 8MP and 30fps.
  • 64-channel decoding capability at 1080p and 30fps.
  • 8 HDMI outputs with resolutions up to 3840 x 2160 at 30Hz on odd-numbered interfaces.
  • 4 BNC outputs with PAL and NTSC.
  • VGA and DVI-I inputs with resolution up to 1920 x 1080 at 60 Hz.
  • Support for H.265+, H.265, H.264+, H.264, Hik264, MPEG4 and MJPEG video formats.
  • Support for G.722, G711A, G726, G711U, MPEG2-L2 and AAC audio formats.
  • Active and passive decoding modes.
  • Stream acquisition and decoding via URL and RTSP.
  • Screen division into 1, 4, 6, 8, 9, 12, 16, 25 or 36 windows.
  • Multi-screen control via PC with RSC server.
  • 2 adaptive RJ45 interfaces of 10, 100 and 1000 Mbps.
  • 2 optical interfaces 100 base-FX and 1000 base-X.
  • Bidirectional audio with 3.5 mm input and output and 1 kOhm impedance.
  • 8 alarm inputs, 8 alarm outputs and 8 audio outputs.
  • RS-232 and RS-485 serial interfaces.
  • Ethernet Channel port aggregation technology.
  • 220 VAC power supply with consumption less than or equal to 70 W.
  • Operating temperature from -10 °C to 55 °C and humidity from 10% to 90%.
  • Dimensions of 440 x 320.8 x 44.5 mm and weight less than or equal to 5.2 kg.
