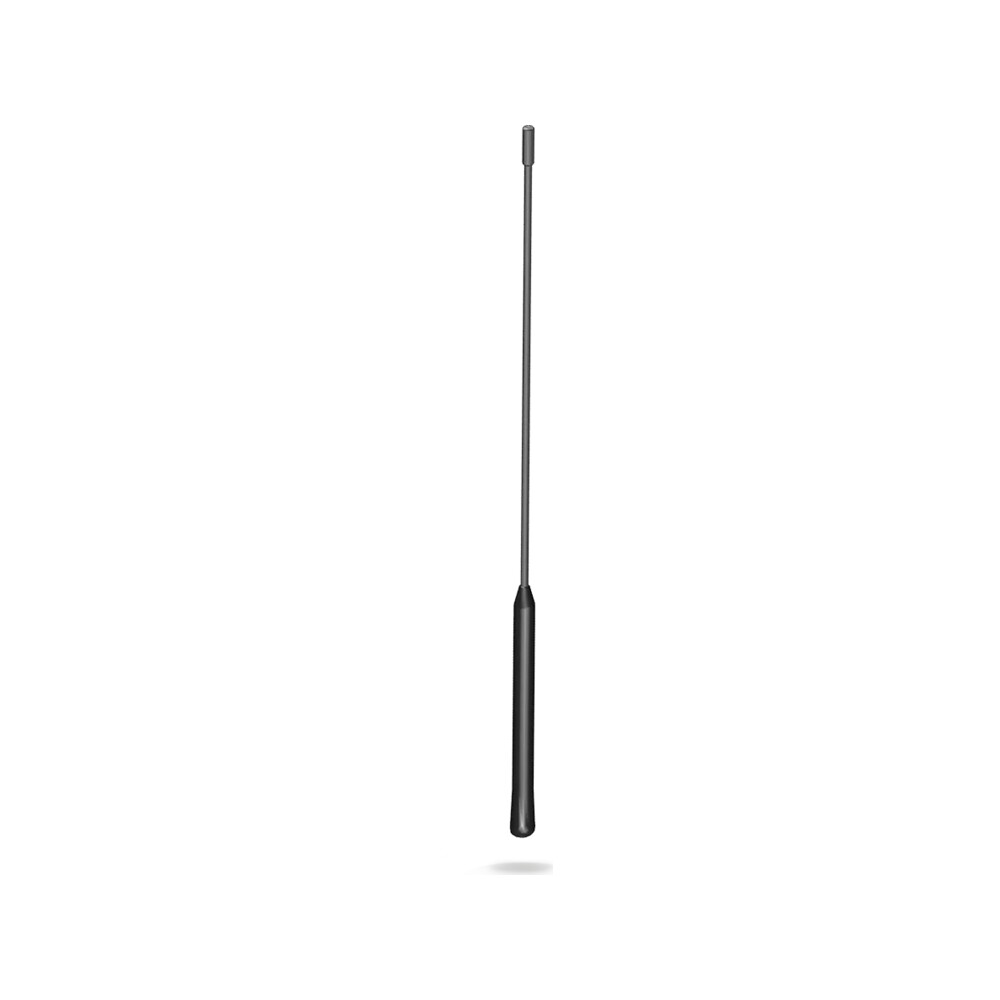

VHF 162-174 MHz flexible whip antenna

AFBQ | Panorama Antennas
Panorama Antennas' 162-174 MHz VHF band flexible whip antenna offers omni-directional coverage with vertical polarization, a typical gain of 2 dBi and a maximum input power of 100 W. Designed with a coated stainless steel shaft and shock spring base, it is suitable for temporary or permanent installations and is removable for car washes or low-headroom spaces.
Please login to view price
Request information
Description Attachments
Request information

Description

The Panorama Antennas flexible whip antenna for the 162-174 MHz VHF band is a solution designed for applications requiring mechanical resistance and good RF performance. Electrically equivalent to a standard 1/4 wave VHF antenna, it features a rigid, resilient stainless steel stem inside a shrink sleeve and a robust base with an integrated shock spring, designed to improve resistance to damage without compromising performance.

The Panorama mounting system ensures a high level of interchangeability between whips and bases, making the product suitable for both temporary and permanent installations. This antenna from the AFBQ range is compatible with all Panorama GPS combination bases and with the medium duty magnetic bases of the MD series, and is also removable for car washes or in environments with limited height.

Main Features

  • Frequency Band: 162-174 MHz
  • Typical Isotropic Gain: 2 dBi
  • Comparison to 1/4 wave: 0 dB
  • Vertical Polarization
  • Omni-directional Radiation Pattern
  • Impedance: 50 Ohm
  • Maximum Input Power: 100 W
  • Height: 397 mm
  • Diameter: 12.5 mm
  • Operating Temperature: -40 °C to +80 °C
  • Material: TPE
  • Color: Black
  • Fixing: M6 x 0.75, compatible with GPSB, GPSK and MD bases
  • Stainless steel stem coated with a shock spring-molded base
  • Removable for car washes or low-headroom spaces
