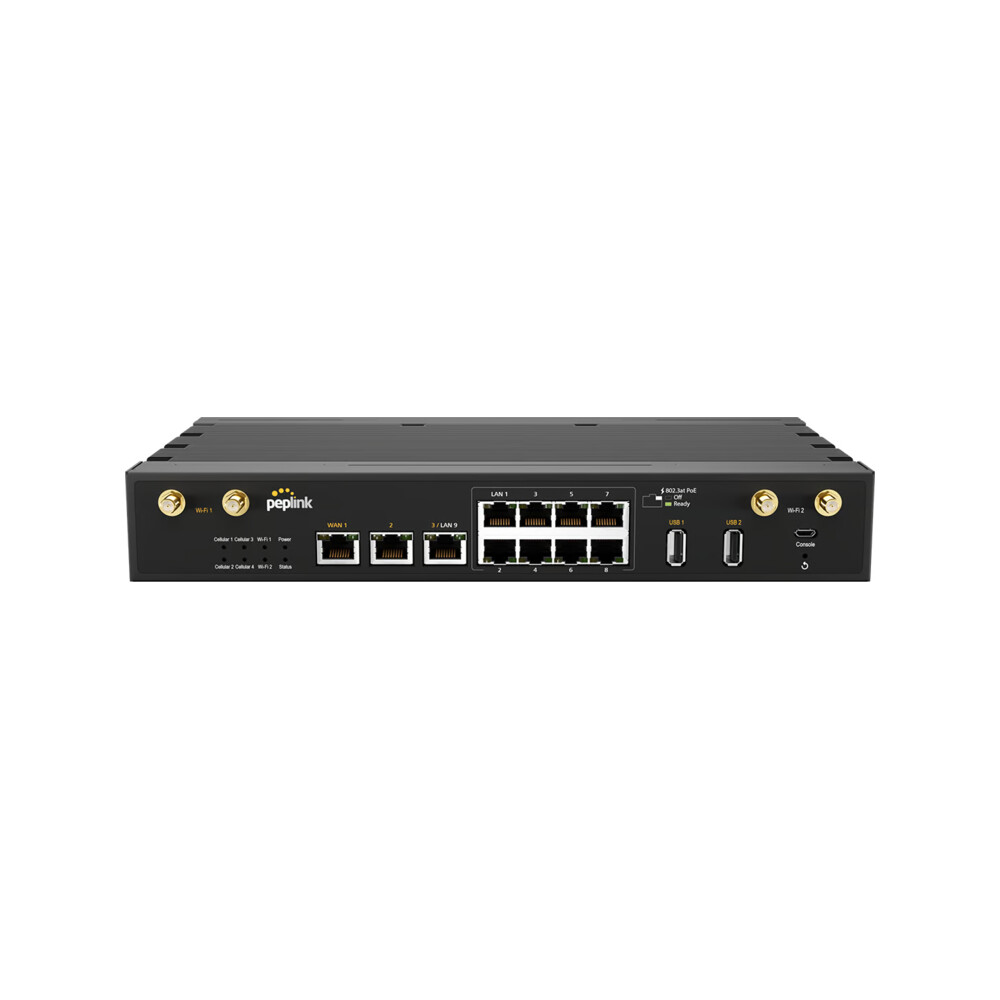

Dual LTE CAT-20 HD2 MBX router
Description
The HD2 MBX dual LTE CAT-20 router is a Peplink professional solution designed for mobile and industrial applications that require business continuity, connection flexibility, and high performance. It integrates 2 LTE-A Pro CAT-20 modems, supports dual-band 2x2 MIMO Wi-Fi 5, and combines cellular, Ethernet, and USB connectivity in a compact, fanless design with Ignition Sensing.
The device provides 3 10/100/1000M Ethernet WAN ports, 9 10/100/1000M Ethernet LAN ports, Wi-Fi WAN and/or AP, and up to 8 802.3at PoE outputs. Peplink completes the platform with SpeedFusion features such as Hot Failover, Smoothing and Bandwidth Bonding, router throughput up to 2.5 Gbps, SpeedFusion throughput up to 600 Mbps without encryption and 500 Mbps with 256-bit AES, plus SIM options including Mini-SIM, eSIM, BYO eSIM, Remote SIM and FusionSIM.
Key Features
- 2 Built-in LTE-A Pro CAT-20 modems
- Global Region for model MAX-HD2-MBX-GLTE-S-T
- 3 10/100/1000M Ethernet WAN ports and 9 10/100/1000M Ethernet LAN ports
- Dual-band 2.4 GHz and 5 GHz Wi-Fi 5 with 2x2 MIMO
- Wi-Fi support WAN and/or AP
- Up to 8 802.3at PoE outputs
- Router throughput up to 2.5 Gbps
- SpeedFusion with Hot Failover, Smoothing and Bandwidth Bonding
- SpeedFusion throughput up to 600 Mbps without encryption and 500 Mbps with 256-bit AES
- Theoretical cellular data rates up to 2 Gbps downlink and 211 Mbps uplink
- Support for 3, 20 or 50 SpeedFusion PepVPN peers based on license
- SIM options: Mini-SIM 2FF, Peplink eSIM, BYO eSIM with 2 profiles, Remote SIM from SIM Injector and FusionSIM
- 8 cellular SMA connectors, 4 Wi-Fi RP-SMA connectors and 1 SMA connector GPS
- Power supply 12V to 56V DC
- Operating temperature -40 to 65°C
- Dimensions 43 x 292 x 177 mm and weight 3.3 kg
- Recommended users: 50-500
- 1-year limited warranty
