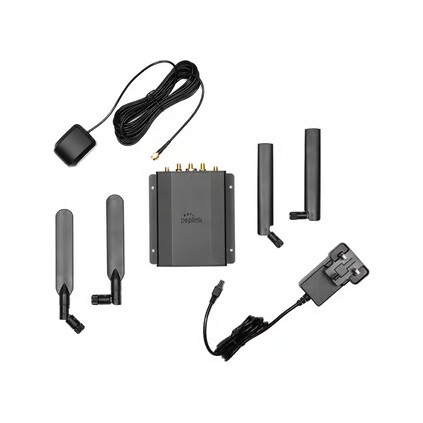

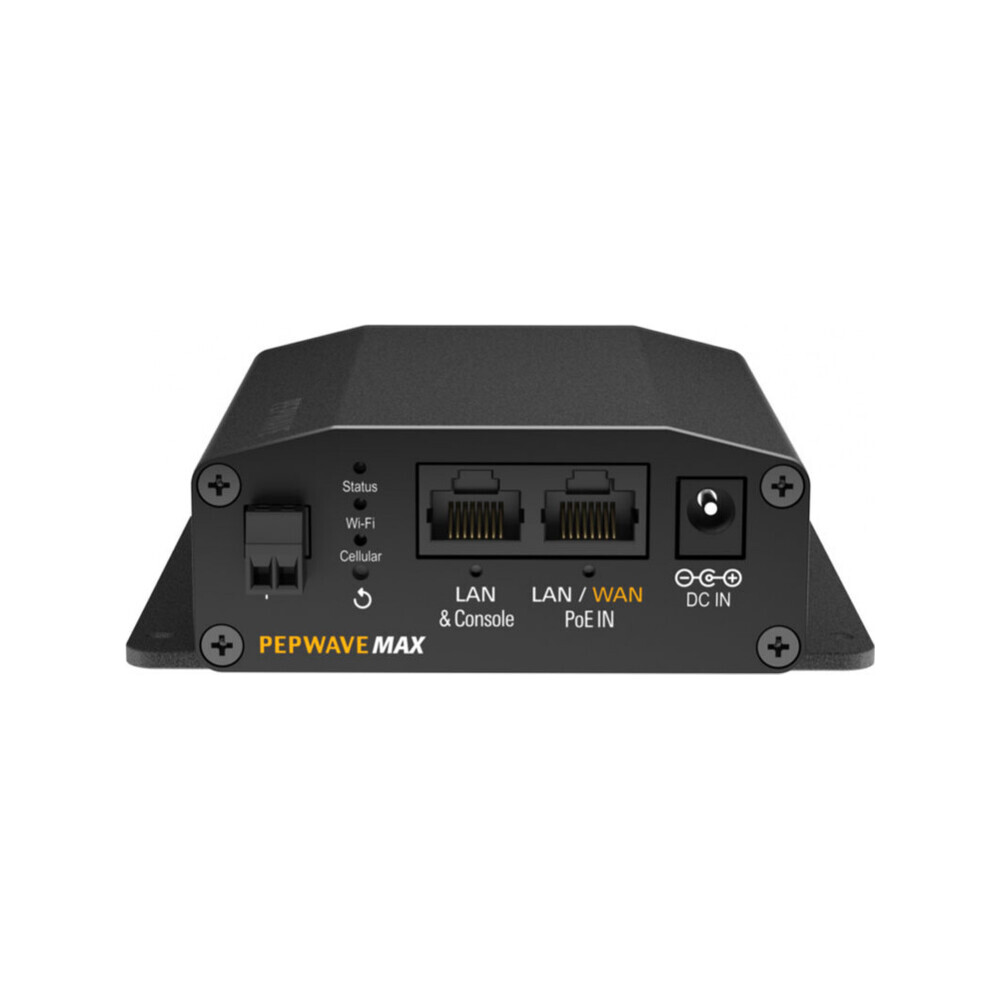

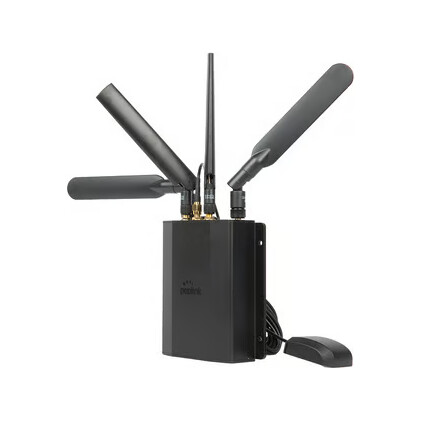

BR1 Mini dual-band LTEA cellular router

MAX-BR1-MINI-LTEA-B-T-PRM | Peplink
Peplink BR1 Mini dual-band LTEA cellular router with integrated CAT-6 modem for APAC and EMEA, redundant dual SIM, concurrent dual-band Wi-Fi 5, and 3 Gigabit Ethernet ports. Offers GPS, GPIO, ignition sensing, and management via InControl2, with advanced features such as Wi-Fi WAN, Hot Failover, and Smoothing available with PrimeCare or a dedicated license.
Please login to view price
Request information
Description Attachments
Request information

Description

The BR1 Mini dual-band LTEA cellular router is a compact solution for reliable professional connectivity in distributed and mobile environments. Peplink integrates a CAT-6 modem for APAC and EMEA regions, dual redundant SIM slots, concurrent dual-band Wi-Fi 5 with 2x2 MIMO, and 3 Gigabit Ethernet ports for integration into enterprise networks.

The device also supports GPS, GPIO, and ignition sensing, making it suitable for scenarios where business continuity and flexible deployment are required. Management can be done via InControl2 and, with PrimeCare or dedicated licenses, features such as Wi-Fi WAN, Hot Failover, Smoothing, Bandwidth Bonding and a higher number of SpeedFusion VPN peers are available.

Key Features

  • Integrated CAT-6 cellular modem in the MAX-BR1-MINI-LTEA-B-T-PRM variant for APAC and EMEA

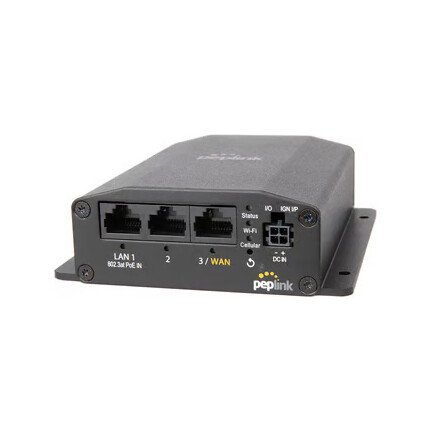

  • 1 x 10/100/1000M Ethernet WAN port and 2 x 10/100/1000M Ethernet LAN ports
  • Dual redundant SIM with 4FF Nano-SIM support
  • Concurrent dual-band 2.4GHz and 5GHz Wi-Fi 5 with 2x2 MIMO
  • Wi-Fi WAN and access point support

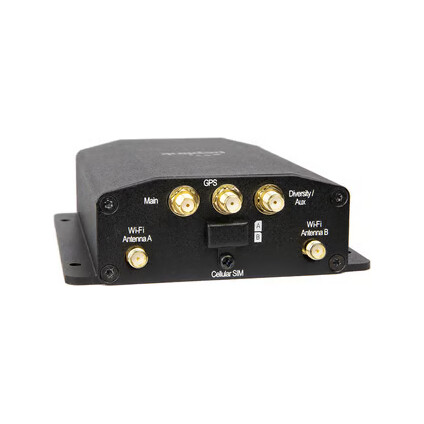

  • 2 x SMA connectors for cellular antenna, 2 x RP-SMA connectors for Wi-Fi antenna and 1 SMA connector for GPS antenna
  • Router throughput up to 300 Mbps
  • SpeedFusion VPN throughput up to 80 Mbps without encryption and 60 Mbps with 256-bit AES
  • Available SpeedFusion features: Hot Failover, Smoothing and Bandwidth Bonding
  • Built-in GPIO and ignition sensing
  • Power supply via 10V - 30V DC port, AC adapter or 802.3at PoE
  • Power consumption 13W nominal and 18W maximum
  • Operating temperature -40°C to 65°C
  • Dimensions 125.7 x 107 x 35 mm and weight 430 g
  • Recommended users 1 to 60
  • LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71
  • 3G HSPA+/WCDMA bands: B1, B2, B4, B5, B6, B8, B9, B19
