iZero 3 Dual Sensor ANPR-OCR Box Camera

J-IZERO3 | SELEA
The iZero 3 dual-sensor ANPR-OCR Box Camera is designed for professional access control and parking systems with single-lane license plate recognition and a maximum capture speed of up to 30 km/h. SELEA integrates a 2.3 Megapixel Global Shutter OCR sensor, a 2 Megapixel Sony Ultra Night Vision context sensor, a Gigabit LAN port, 12 Vdc or 802.3af PoE power supply, and 8 GB microSD memory.
Please login to view price
Request information
Description Attachments
Request information

Description

The iZero 3 dual sensor ANPR-OCR Box Camera is a license plate OCR recognition solution designed to create professional access control and parking systems. In this Box version, SELEA adopts a dual sensor technology that combines license plate reading and context recording, with support for single-lane reading and a maximum capture speed of up to 30 km/h.

The hardware configuration includes a 2.3 Megapixel Global Shutter 1/2.6" B/W CMOS OCR sensor with a frame rate of 60 fps and a 2 Megapixel Sony Ultra Night Vision color CMOS context sensor, designed to obtain color images even at night. Both lenses are 6 mm with F1.2 aperture and M12 mount, while the illuminator integrates 3 high-power 820 nm IR LEDs.

On the connectivity and management front, the camera has a 10/100/1000 Mbps LAN port, 12 Vdc power supply or PoE 802.3af, 8 GB SLC microSD memory and dedicated outputs for the Box version with opto-isolated output, dry contact relay and Wiegand interface or, on request, RS232 - RS485 interface. The Linux Embedded-based software system also includes dual FTP server, dual IP notification server, recording on local server or remote NAS, integration with third-party VMS and data protection via HTTPS, FTPS, AES256 and SHA2.

Main features

  • Dual sensor ANPR OCR Box Camera for access control and parking
  • Single lane license plate reading with maximum capture speed up to 30 km/h
  • 2.3 Megapixel Global Shutter OCR sensor 1/2.6" B/W CMOS at 60 fps
  • 2 Megapixel Sony Ultra Night Vision color CMOS context sensor
  • 6 mm OCR lens with F1.2 aperture and M12 mount
  • 6 mm context lens with F1.2 aperture and M12 connection
  • Illuminator with 3 high-power 820 nm IR LEDs
  • 10/100/1000 Mbps LAN port
  • 12 Vdc power supply or PoE 802.3af
  • 8 GB SLC microSD memory
  • Box version output with opto-isolated output, relay with dry contact and Wiegand interface or RS232 - RS485 on request
  • Ethernet protocols TCP/IP, UDP, HTTP, HTTPS, FTP, FTPS, RTP/RTSP, DHCP, SNMP
  • Embedded Linux operating system
  • Direct recording on local server or remote NAS and integration with third-party VMS
  • HTTPS, FTPS, AES256, SHA2 encryption and automatic data deletion for privacy
  • Protection level IP66
  • Operating temperature -25 °C to +45 °C

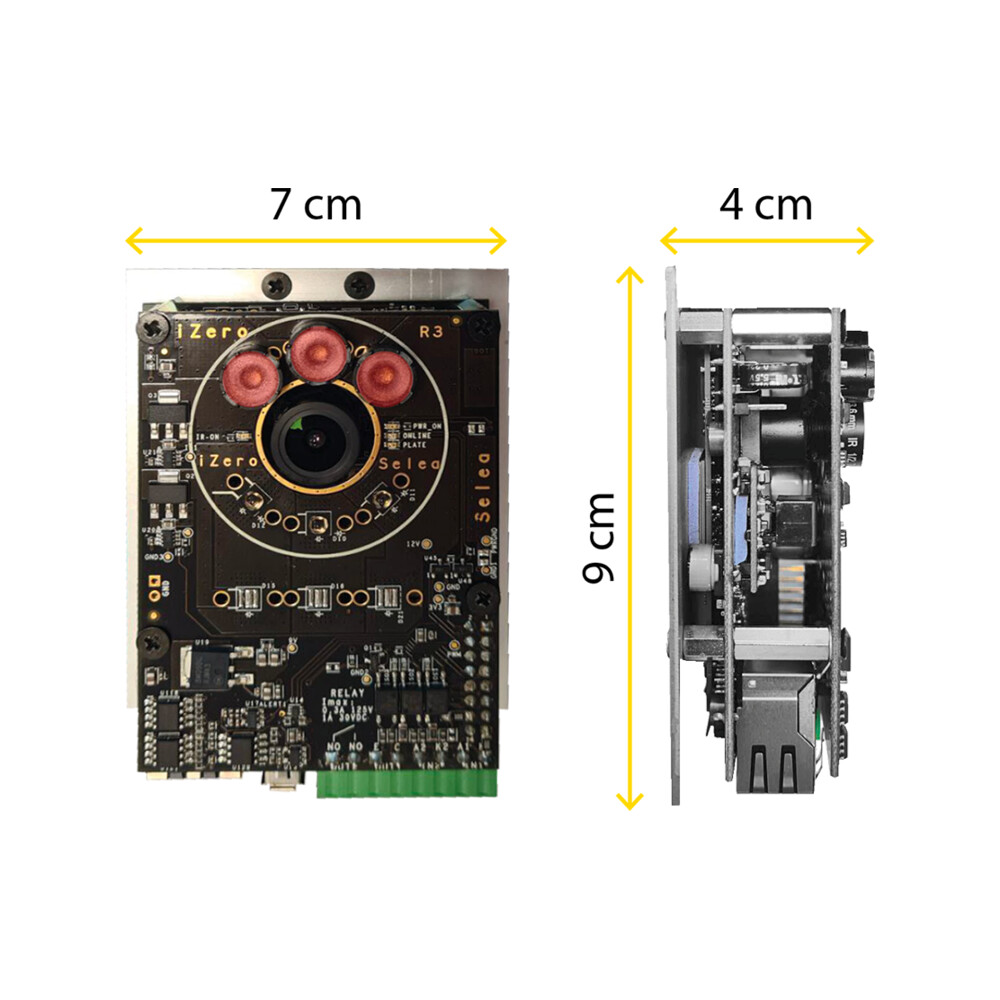

  • Box version dimensions 80 x 170 x 83 mm
  • Box version weight 855 g
