Single Lane PoE+ ANPR OCR Camera Targa 504
Description

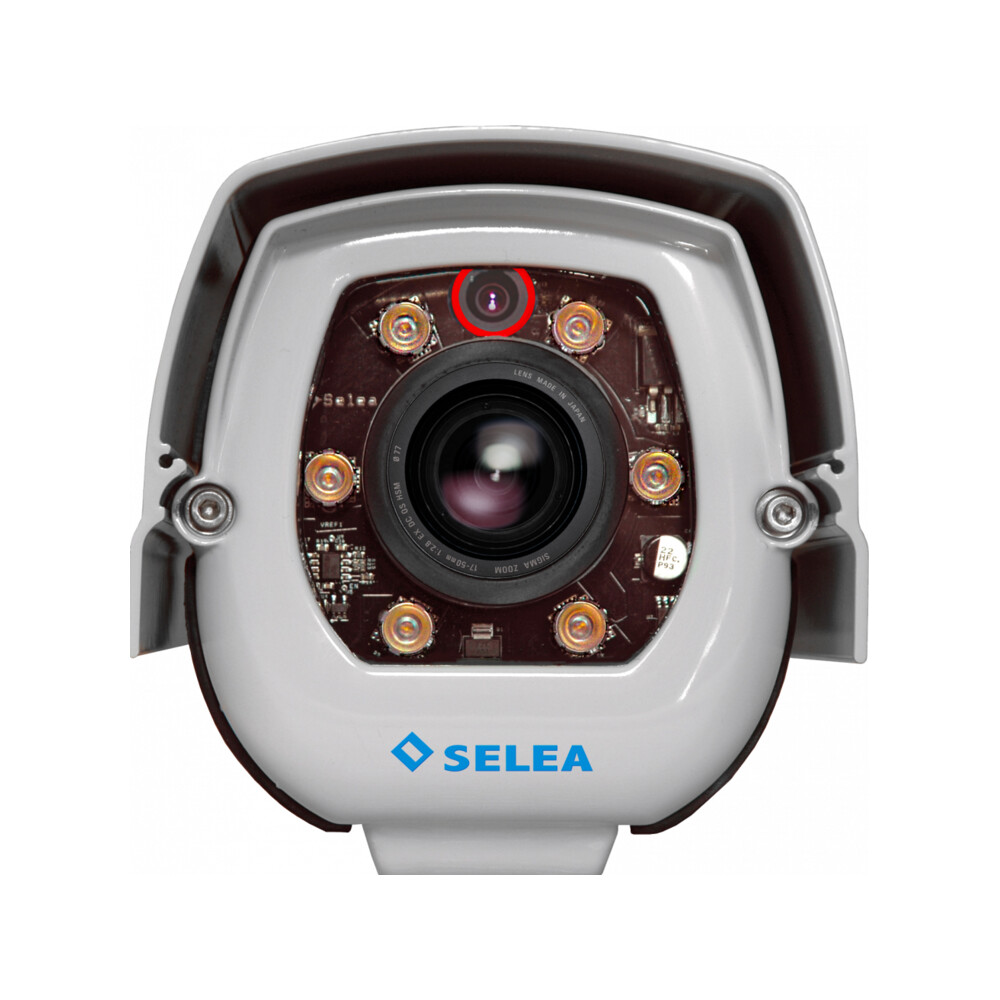

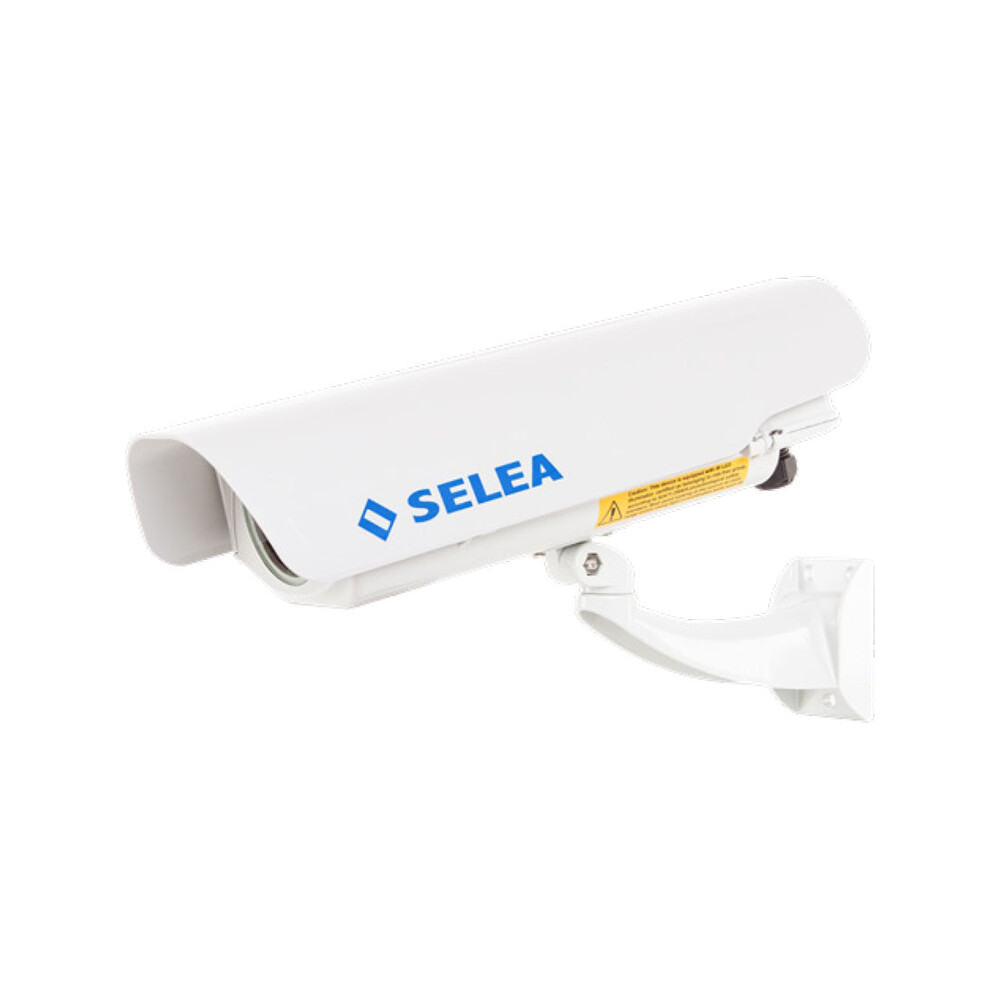

Single-lane ANPR OCR PoE+ camera Targa 504 is a SELEA solution for parking and vehicle access control, designed for high-accuracy OCR recognition of license plates and dangerous goods even in critical conditions such as dirty and damaged license plates, both day and night. It is a single-lane camera and combines a 2 Megapixel Global Shutter OCR sensor with a 5-55 mm lens with a 5 Megapixel Rolling Shutter color contextual sensor with an 8 mm lens.
The model includes 8 GB internal memory for white and black lists, IR illuminator for readings from 3 to 10 m, 10/100 Mbps LAN port, 4 USB ports, RS232/485 serial interface, Input and Output. The T configuration adds PoE+ power with high-power injector, while the software functions support notifications, synchronized saving of metadata and images, privacy management with automatic data deletion and integration with third-party access control and VMS systems.
Main Features
- ANPR OCR camera for parking and vehicle access control.
- License plate reading on a single lane with a width of up to 4 m, a reading distance of up to 10 m and an installation height of up to 2.5 m.
- 2 Mpx Global Shutter OCR sensor 1/2.6 inch B/W CMOS with a frame rate of 54 Fps.
- 5-55 mm OCR lens with 10x zoom, F1.4 aperture and C/CS mount.
- 5 Mpx CMOS Rolling Shutter color contextual sensor.
- Lens 8 mm context sensor with standard IR filter and M12 connection as a D8 accessory.
- PoE+ power supply with high-power injector as a T accessory.
- 8 GB internal memory for white and black lists.
- 10/100 Mbps LAN port and 4 USB ports.
- RS232/485 serial interface as standard, with Input and Output.
- Ethernet protocols TCP/IP, UDP, HTTP, HTTPS, FTP, FTPS, RTP/RTSP, DHCP and SNMP.
- OCR accuracy up to 99.9% of transits and maximum capture speed of 50 km/h.
