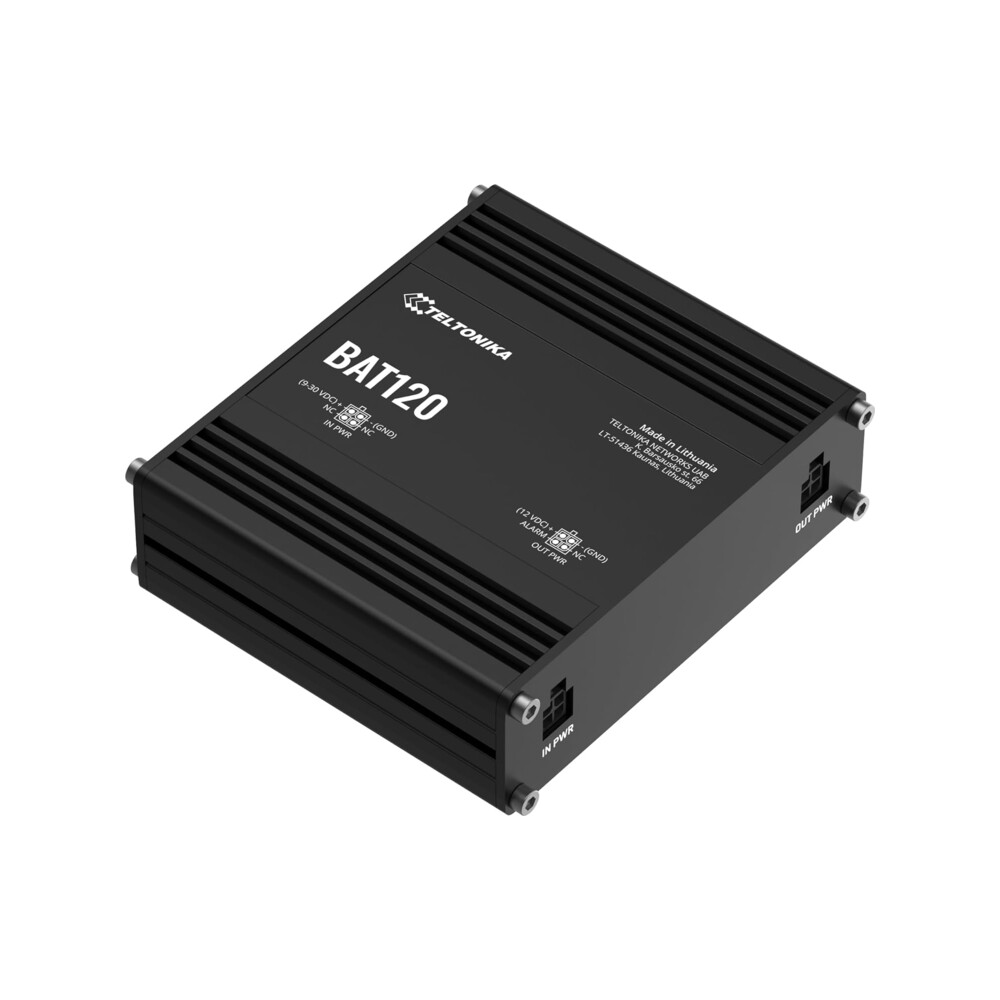

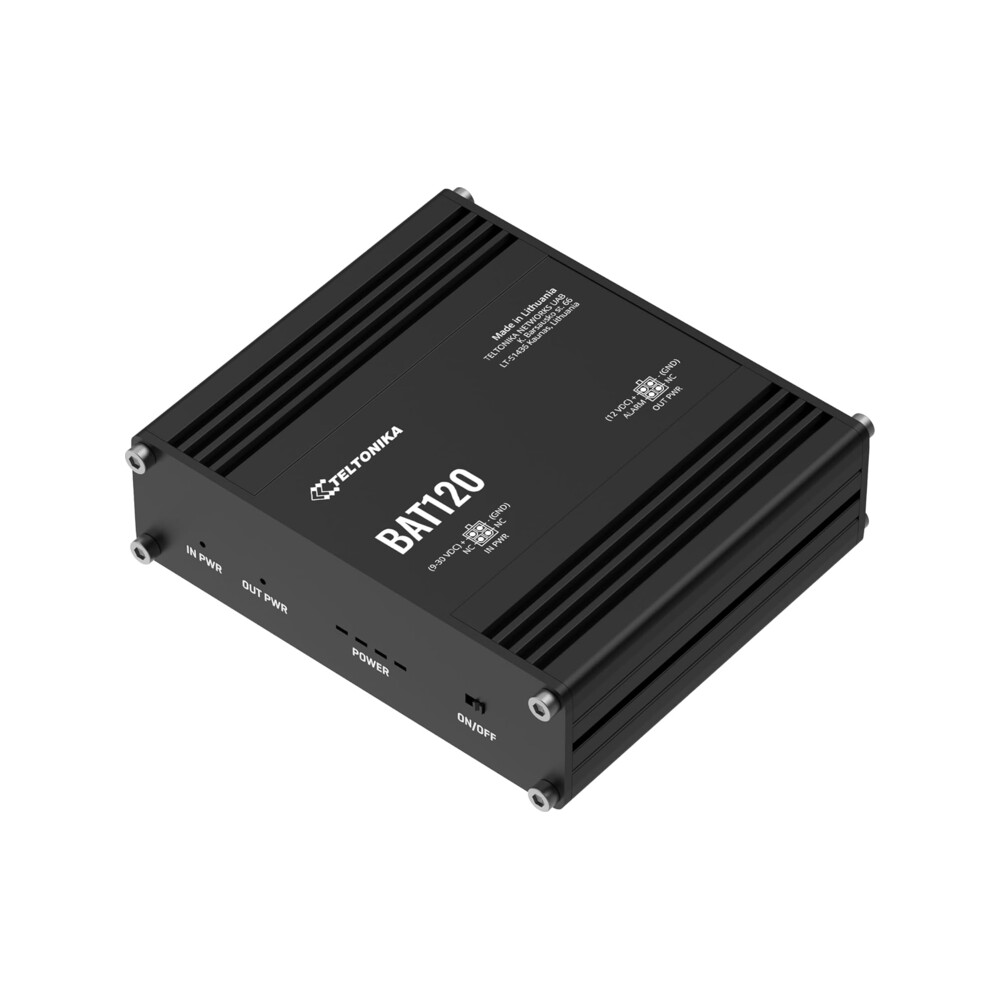

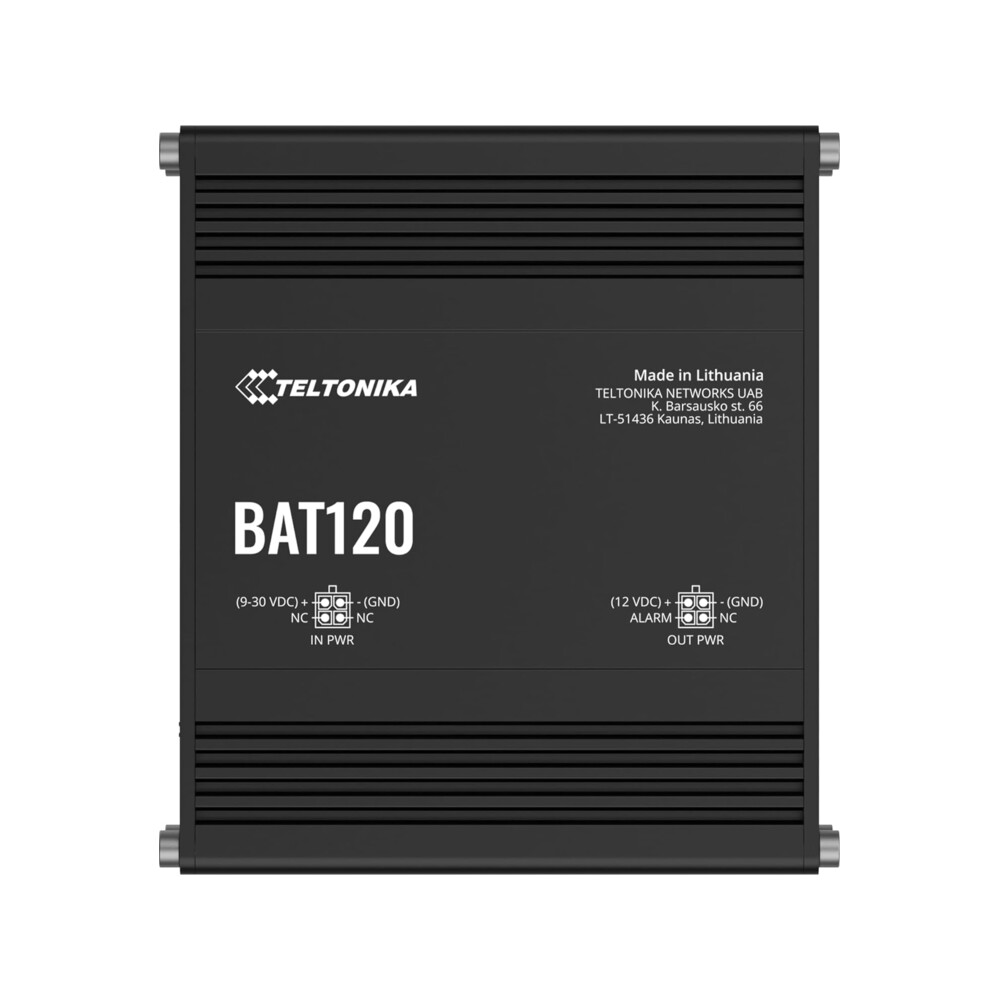

4-pin 22W BAT120 power supply module

Description

The BAT120 22W 4-Pin Power Module is an uninterruptible power system designed to ensure power continuity for compatible Teltonika Networks devices even in the event of a power outage or fluctuation. It supports input voltages from 9 to 30 VDC and provides a 12 VDC output when operating in battery mode.

With a maximum power output of 22 W and current of up to 1.8 A in battery mode, the BAT120 ensures reliable performance. It features reverse polarity and input overvoltage protection, as well as 3 A output overcurrent protection, ensuring maximum operational safety.

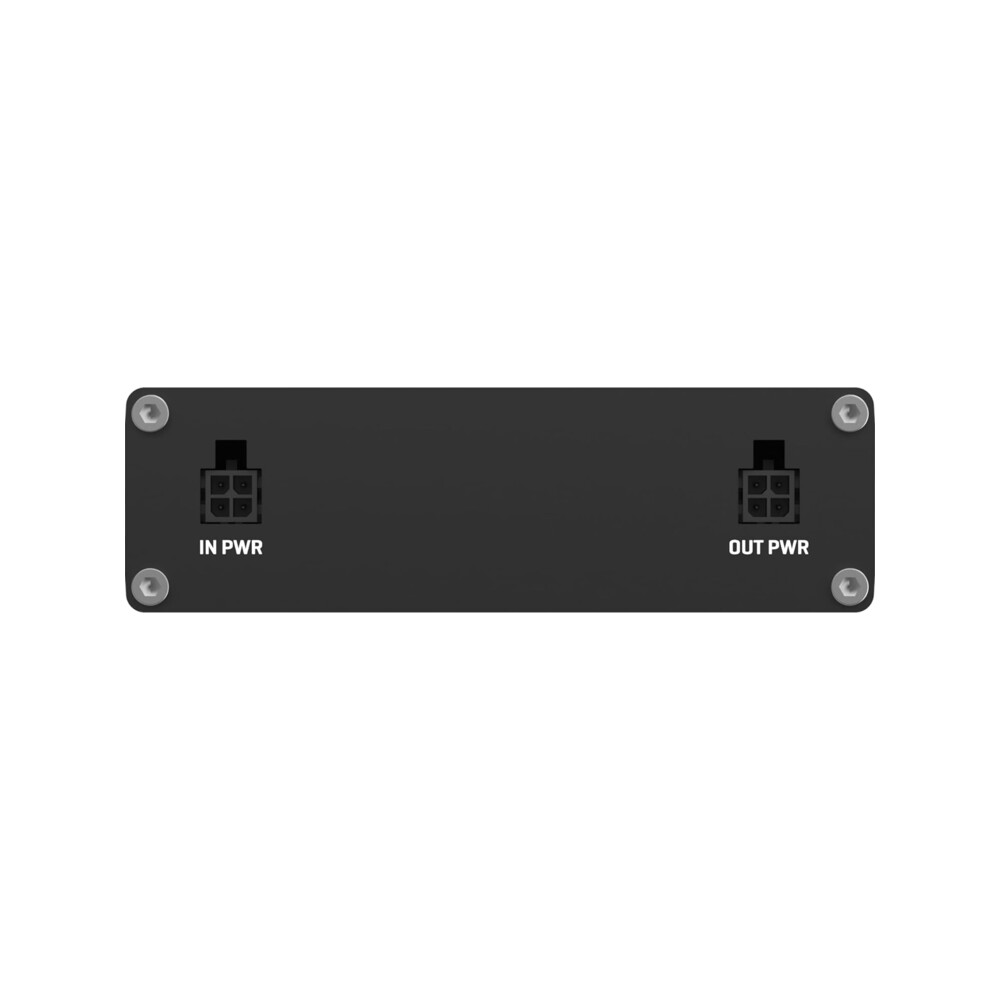

The device is equipped with two 4-pin industrial DC ports for Power IN and Power OUT, dedicated status LEDs, and an On/Off switch. The built-in 2600 mAh 17 Wh battery can power devices for up to 6 hours, depending on the application.

Key Features

• UPS module with 4-pin industrial DC connectors
• 9 - 30 VDC input
• 12 VDC output in battery mode
• Maximum power 22 W 1.8 A in battery mode
• 2600 mAh 17 Wh battery capacity
• Reverse polarity and overvoltage protection
• 3 A overcurrent protection
• Up to 6 hours of power supply

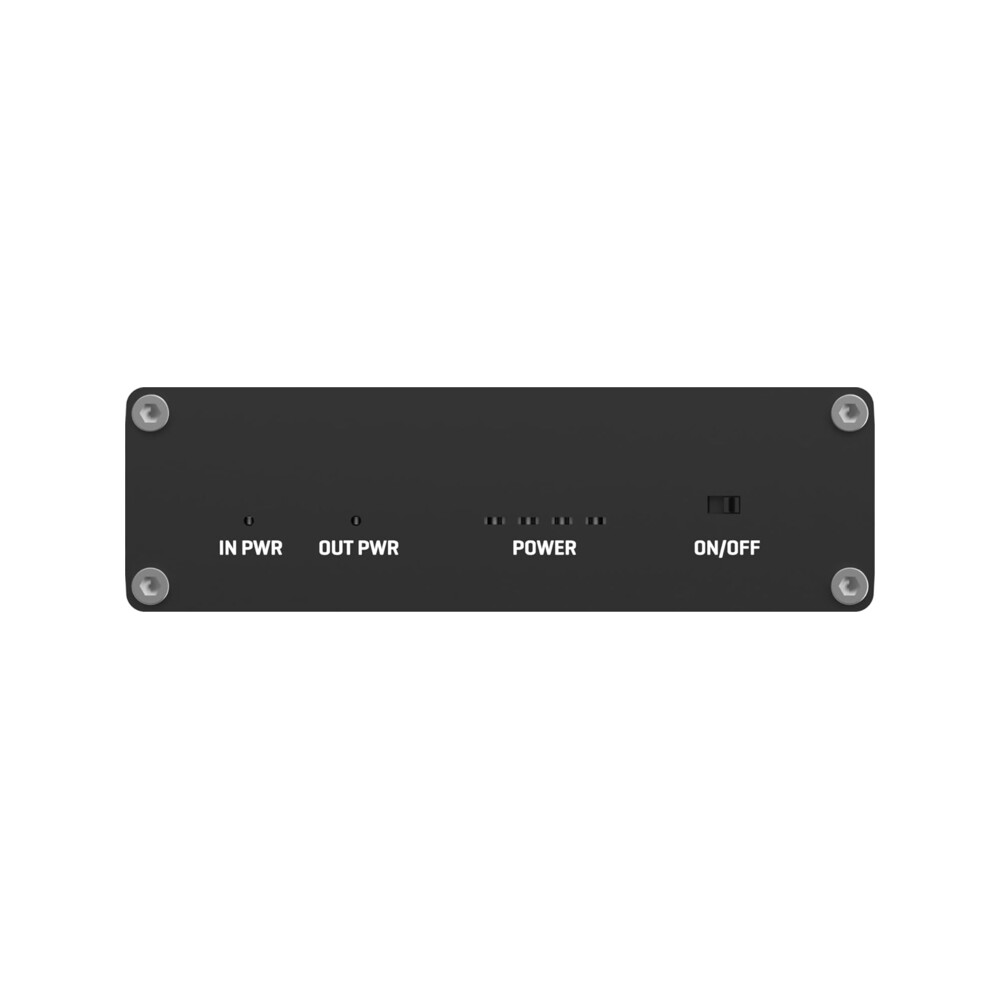

• 1 x IN PWR LED, 1 x OUT PWR LED, 4 x Power status LEDs
• On/Off switch Sled
• Aluminum enclosure
• Dimensions 100 x 30 x 85 mm, weight 315 g
• DIN rail or flat surface mount
