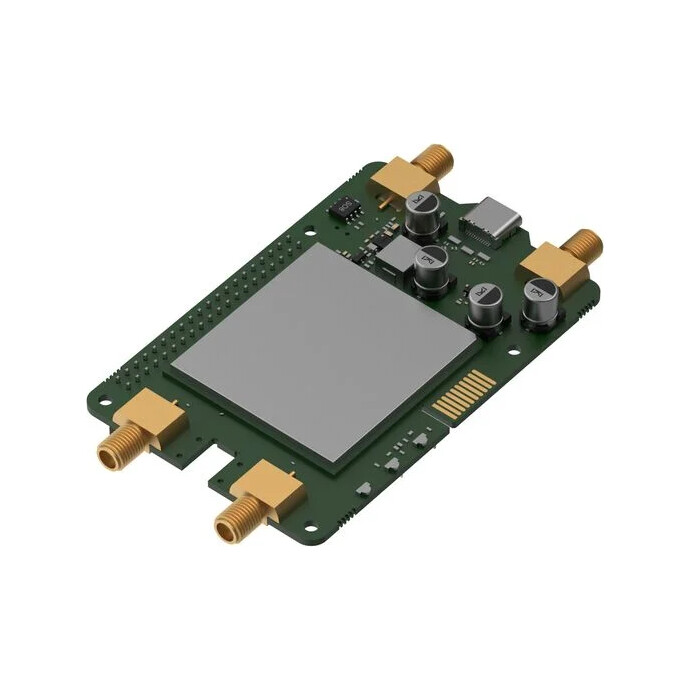

Raspberry Pi HAT+ 4G Calyx module
EBD021000000 | Teltonika Networks
The Calyx 4G is a Raspberry Pi HAT+ module from Teltonika with LTE Cat 4 connectivity designed for Raspberry Pi 4 and 5, ideal when Wi-Fi or Ethernet are unavailable or unreliable. It supports up to 75 Mbps download and 50 Mbps upload over LTE-FDD, features a Nano SIM slot, two SMA connectors, and modem control via GPIO for professional embedded integrations.
Please login to view price
Description
Description
The Teltonika Raspberry Pi HAT+ 4G Calyx module is an embedded cellular connectivity solution designed to provide mobile internet access to Raspberry Pi 4 and 5-based systems in scenarios where Wi-Fi or Ethernet are unavailable or unreliable. It mounts directly onto the SBC via a 40-pin header, ensuring compact and tidy integration.
The 4G version supports LTE Cat 4 with speeds up to 75 Mbps download and 50 Mbps upload over LTE-FDD, as well as LTE-TDD, DC-HSPA+, 3G, and 2G. It features a push-pull Nano SIM slot, two SMA connectors for mobile antenna, status LEDs, and power via a 40-pin header or USB Type-C. Modem control via GPIO allows wake and reset functions directly from the Raspberry Pi pins.
Main Features
- Raspberry Pi HAT+ module with 4G LTE Cat 4 connectivity
- Up to 75 Mbps DL and 50 Mbps UL on LTE-FDD
- Supports LTE-TDD, DC-HSPA+, 3G, and 2G
- Compatible with Raspberry Pi 4 and 5, mounts on a 40-pin header
- One 4FF push-pull Nano SIM slot
- Two SMA connectors for mobile antenna
- Status LEDs: Power, NET IND, NET STAT
- Modem control via GPIO
- Dimensions: 56 x 23.11 x 95.48 mm; weight: 57 g
