Raspberry Pi HAT+ 5G RedCap Calyx Module

Description

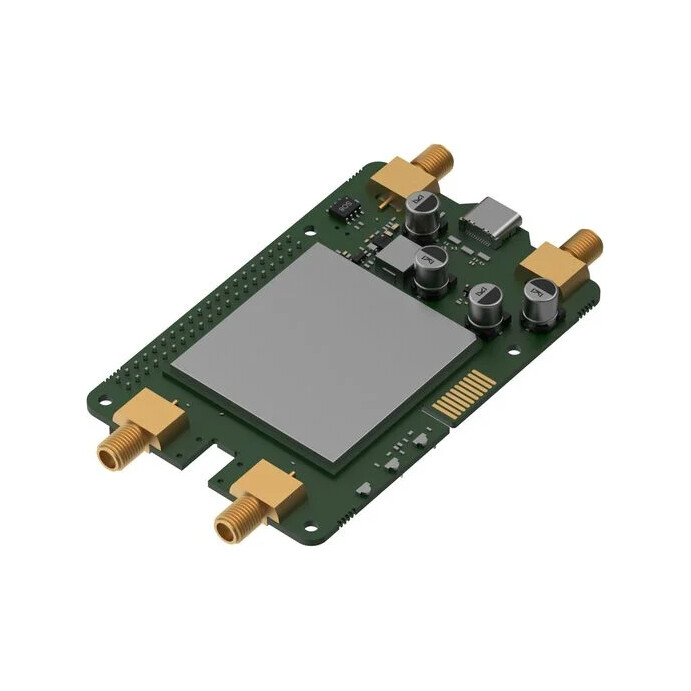

The Teltonika RedCap Calyx Raspberry Pi HAT+ 5G module is designed to provide 5G mobile connectivity on Raspberry Pi 4 and 5 platforms via a 40-pin GPIO header. It offers a compact solution that can be integrated into IoT and industrial projects requiring reliable cellular communication.

It supports Sub-6GHz 5G NR SA networks with speeds up to 223 Mbps download and 123 Mbps upload, as well as backward compatibility with 4G LTE Cat 4 with speeds up to 195 Mbps download and 105 Mbps upload. It features two SMA connectors for mobile antennas, one 4FF push-pull Nano SIM slot, and status LEDs for Power, NET IND, and NET STAT.

Power can be supplied via the Raspberry Pi headers at 5 VDC and 3.3 VDC or via USB Type-C at 5 VDC. The module operates over a temperature range of -40°C to 75°C, measures 56 x 23.11 x 95.48 mm, and weighs 57 g.

Key Features

• Raspberry Pi HAT+ Module with 5G NR SA Sub-6GHz
• Up to 223 Mbps DL and 123 Mbps UL in 5G
• 4G LTE Cat 4 up to 195 Mbps DL and 105 Mbps UL
• 2 SMA connectors for mobile antenna
• 1 4FF push-pull Nano SIM slot
• 40-pin GPIO header compatible with Raspberry Pi 4 and 5
• 5 VDC and 3.3 VDC power supply Header or USB Type-C 5 VDC
• Status LEDs: Power, NET IND, NET STAT
• Operating temperature: -40°C to 75°C
• Dimensions: 56 x 23.11 x 95.48 mm; weight: 57 g
