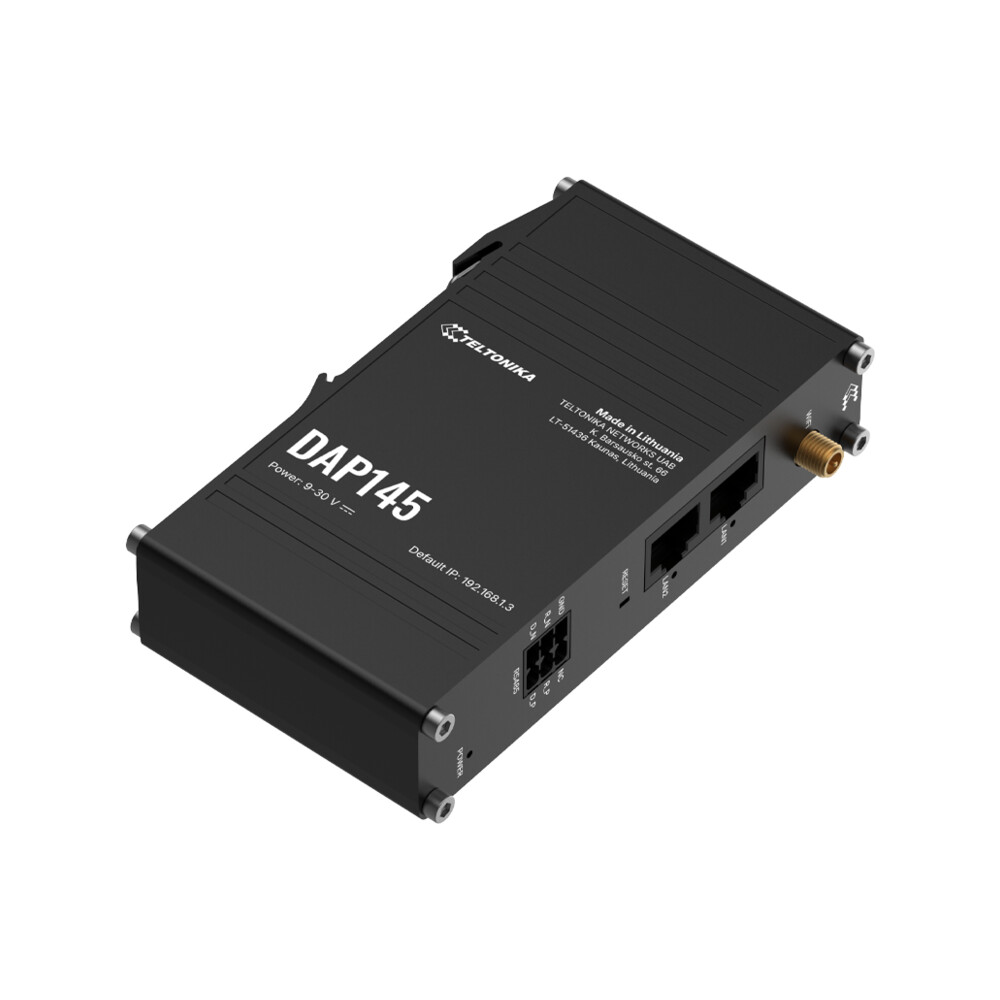

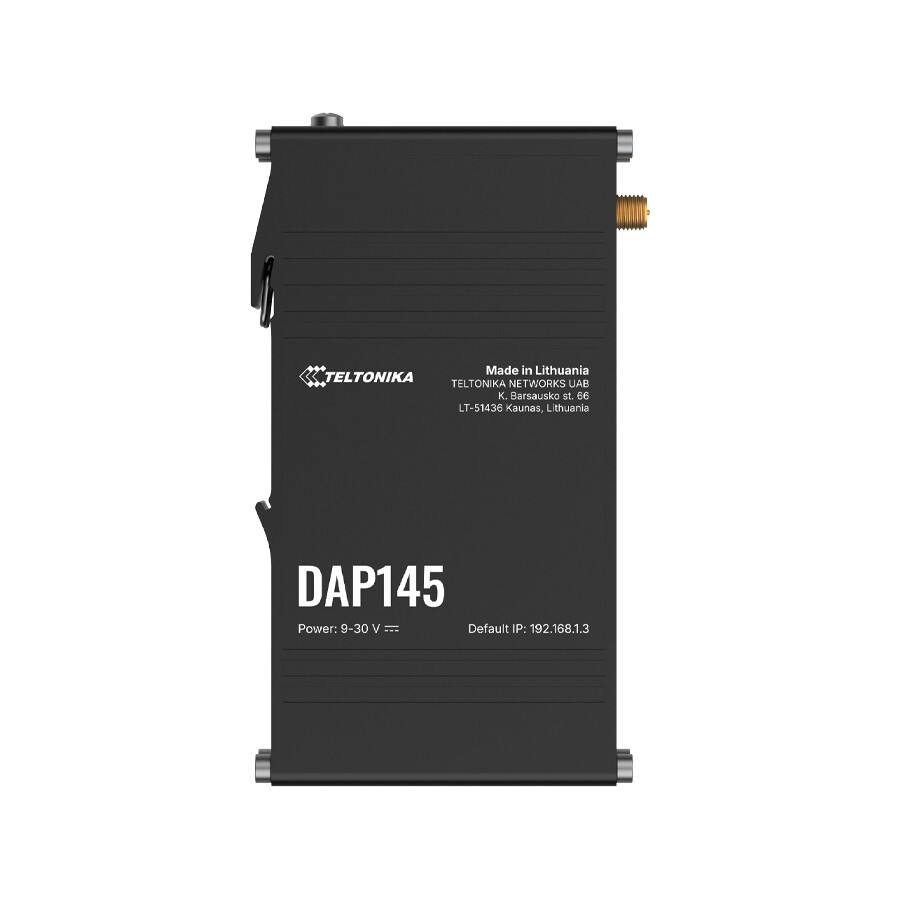

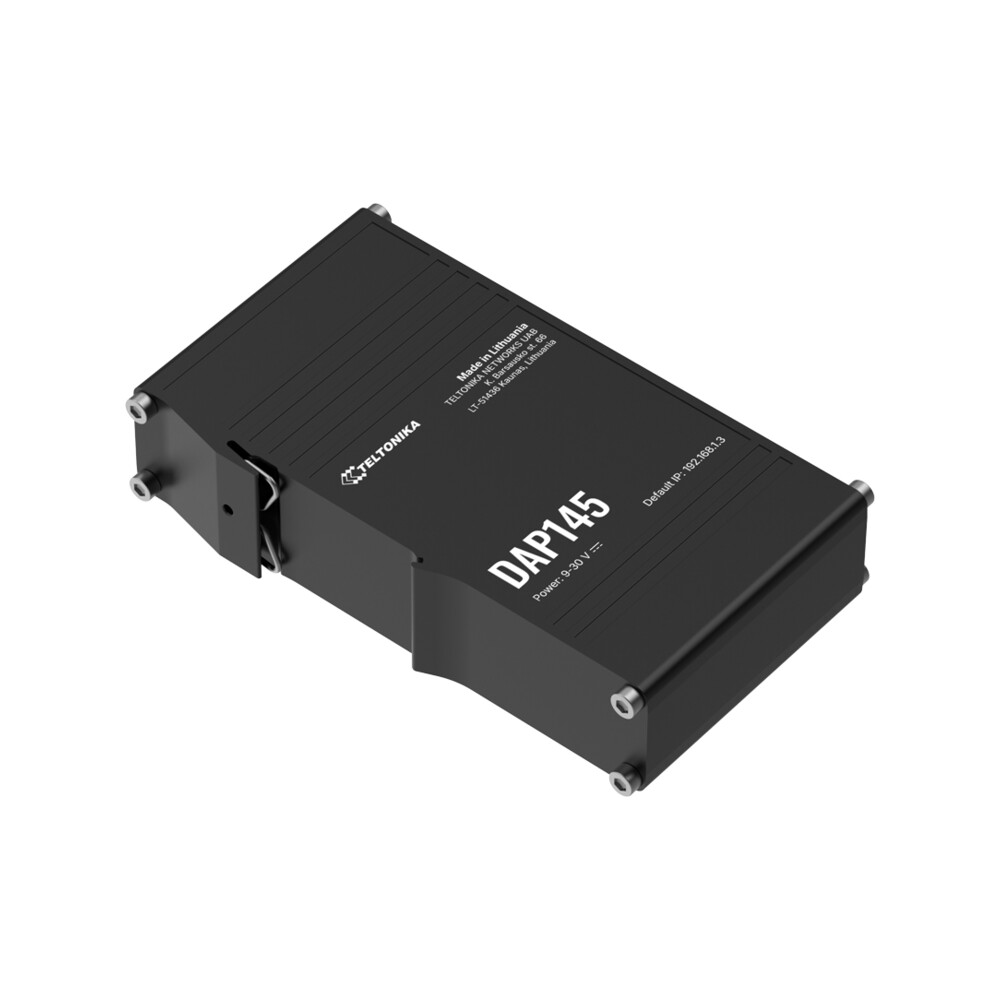

Wi-Fi access point with RS485 DAP145

DAP145000000 | Teltonika Networks
The Teltonika Networks DAP145 RS485 Wi-Fi access point is an industrial solution with two 10/100 Mbps RJ45 ports and a serial interface for automation, energy, and smart city integration. It supports IEEE 802.11b/g/n modes, up to 50 concurrent users, and RS485-to-IP bridging capabilities with Serial over IP and Modbus.
Please login to view price
Request information
Description
Request information

Description

The DAP145 RS485 Wi-Fi access point is an industrial device designed for automation, energy, and smart city applications. Teltonika Networks integrates IEEE 802.11b/g/n wireless connectivity with bridging functionality between RS485 devices and IP networks, enabling integration via Serial over IP and Modbus.

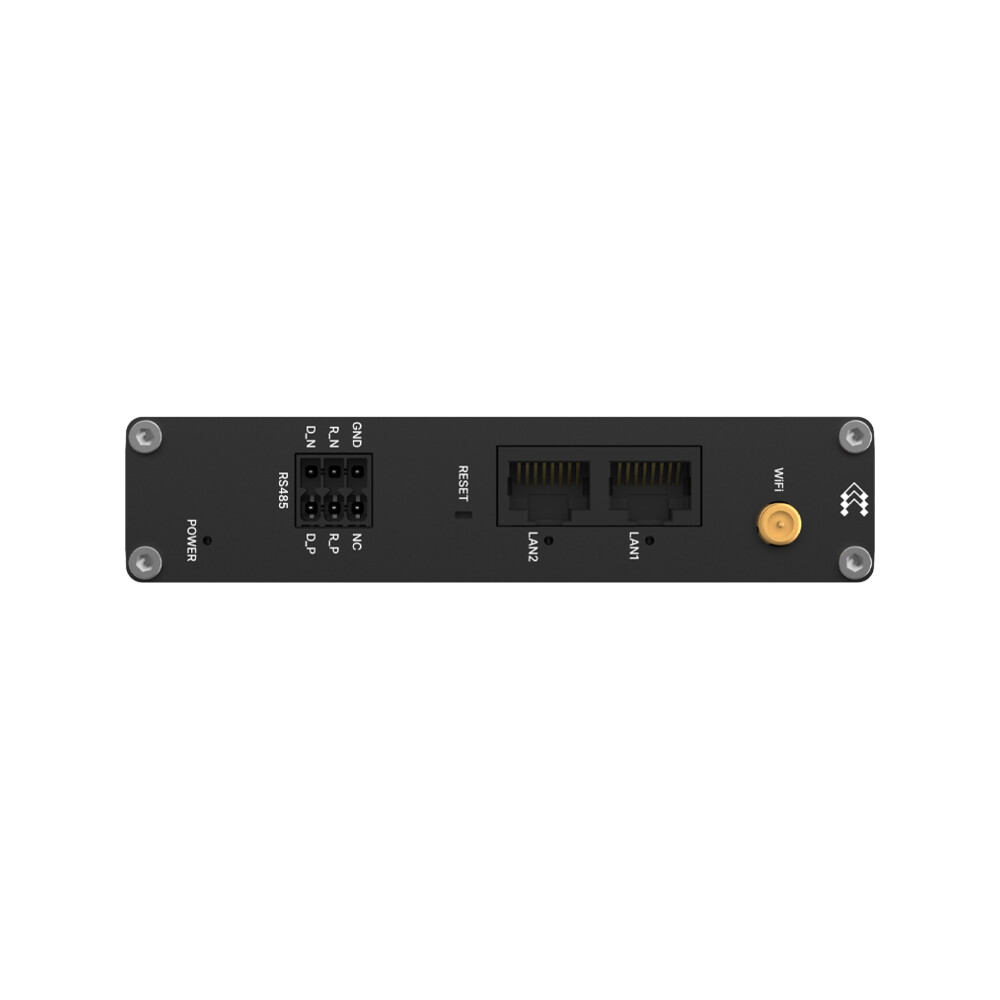

The device features two 10/100 Mbps RJ45 Ethernet ports, an RP-SMA Wi-Fi antenna connector, and a 6-pin RS485 terminal block for a 2-wire or 4-wire interface. It supports Access Point and Station modes, up to 50 simultaneous connections, 802.11s wireless mesh capabilities, and advanced security tools, including a configurable firewall, VLANs, and multiple VPN protocols such as OpenVPN and IPsec.Key Features

  • Wireless IEEE 802.11b/g/n Wi-Fi 4 AP and STA modes
  • Up to 50 simultaneous Wi-Fi connections
  • 2 RJ45 10/100 Mbps Ethernet ports
  • 1 6-pin RS485 interface (2-wire or 4-wire)
  • RS485 bridging over IP with Serial over IP and Modbus
  • Advanced security with firewall, VLANs, 802.1x, and VPN OpenVPN IPsec GRE PPTP L2TP
  • RP-SMA Wi-Fi antenna connector
