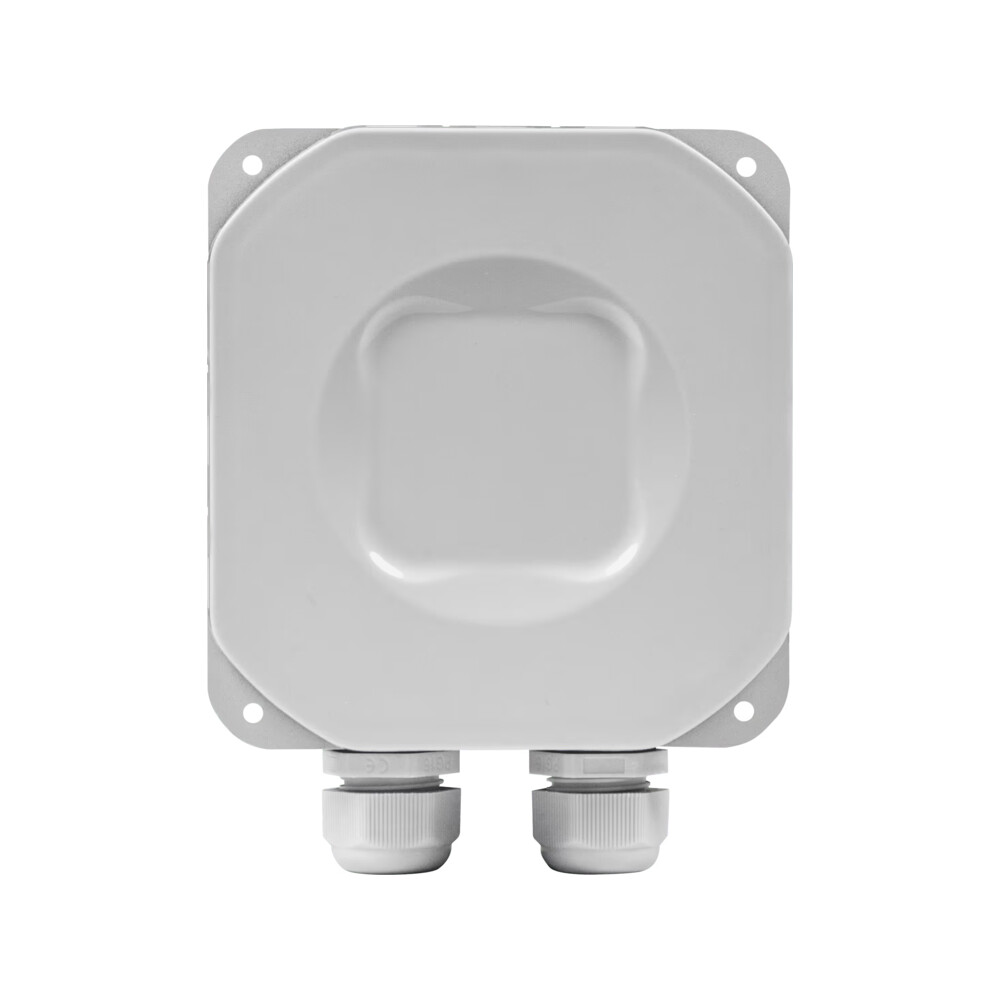

FreeMile 60 60 GHz outdoor radio
Description
FreeMile 60 is an outdoor radio solution designed to efficiently utilize the 60 GHz spectrum, reducing interference and maximizing coverage. According to the datasheet, the product offers multi-Gigabit speeds, aggregate Ethernet throughput of up to 2.3 Gbps, and a modular structure consisting of outdoor units with optional antenna kits, making it suitable for both point-to-point and point-to-multipoint connections.
In the SAF Tehnika portfolio, FreeMile 60 stands out for its support for Access Point and Station modes, the management of up to 32 stations per AP, and its proprietary TDMA protocol with dynamic scheduling, suitable for networks requiring high upload capacity. The platform also integrates management functions via HTTP/HTTPS, SSH, SNMP and RESTful API, with a web-based interface and in-band management via LAN.
Main features
- Modular outdoor radio with optional external unit and antenna kit
- Operating frequency 57 - 71 GHz with channels 1 to 6
- Access Point and Station operating modes
- Support for up to 32 stations per Access Point
- Aggregate Ethernet throughput up to 2.3 Gbps

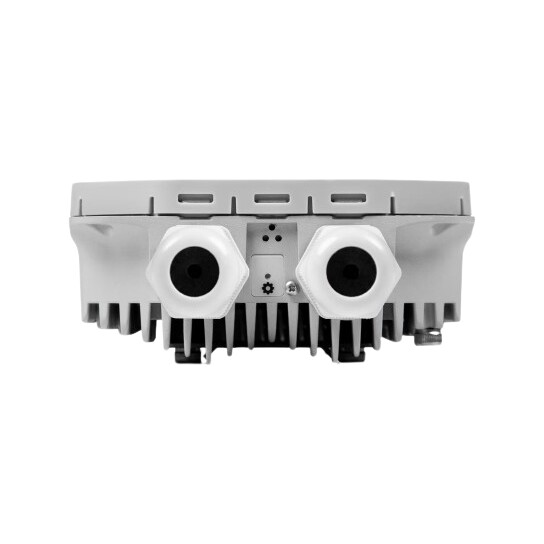

- 2 Ethernet ports: 1 x 10/100/1000/2500 RJ-45 PoE-In and 1 x 10/100/1000 RJ-45 PoE-Out
- Range up to 6 km in PTP with 300 mm antenna and up to 1.6 km in PTMP with station and 100 mm antenna
- AES + GCMP encryption and TDD duplexing
- Management via HTTP/HTTPS, SSH, SNMP v1, v2, v3 and RESTful API
- IP67 protection, operating temperature from -30 °C to +55 °C and Active PoE 38 - 57 VDC power supply
Request information
Related items
30 dBi 45° x 5° FreeMile 60 antenna kit
The SAF Tehnika FreeMile 60 30 dBi 45° x 5° antenna kit is an antenna kit for outdoor installations, compatible with the FreeMile 60 radio (code Z60FEE01). The documentation indicates an antenna gain of 30 dBi and a beam steering of 45° x 5° for this model, useful features for creating networks with targeted specifications in terms of coverage and directivity.
The product has approximate dimensions of 18 cm x 15 cm x 15 cm. Mounting bracket not included, Precision Mounting Kit (P/N Z60AAMK1) recommended.
Key Features- Compatible with FreeMile 60 radio (P/N Z60FEE01)
- 30 dBi antenna gain
- 45° x 5° beam steering
- Approximate dimensions 18cm x 15cm x 15cm
- Mounting bracket not included
- Recommended mount Z60AAMK1
30 dBi 90° x 5° FreeMile 60 antenna kit
The SAF Tehnika FreeMile 60 30 dBi 90° x 5° antenna kit is designed for outdoor 60 GHz installations in point-to-point scenarios and as a client in point-to-multipoint configurations. When paired with a compatible TNA radio, it provides a highly focused connection, resistant to interference and suitable for increasing link distance.
This model offers 30 dBi antenna gain, 90° x 5° beam steering, and approximate dimensions of 18 cm x 30 cm x 15 cm. It is compatible with the FreeMile 60 radio (part number Z60FEE01) and the mounting bracket is not included, (precision mounting kit recommended: part number Z60AAMK1).
Key Features- 60 GHz outdoor antenna kit for PTP links and PTMP clients
- 30 dBi antenna gain
- 90° x 5° beam steering
- Compatible with the FreeMile 60 radio (part number Z60FEE01)
- Approximate dimensions of 18 cm x 30 cm x 15 cm
- Interference-resilient connections suitable for longer distances
- Mounting bracket not included
- Recommended mount Z60AAMK1
33 dBi 6° x 6° FreeMile 60 antenna kit
The SAF Tehnika FreeMile 60 33 dBi 6° x 6° antenna kit is designed for outdoor 60 GHz networks requiring highly focused links. The datasheet presents it as a kit antenna for point-to-point scenarios and as a client in point-to-multipoint configurations, with advantages in terms of interference resilience and increased range when paired with a compatible radio.
This model offers 33 dBi antenna gain, 6° x 6° beam steering, and approximate dimensions of 13 cm x 13 cm x 13 cm. The included L-shaped mounting bracket simplifies installation, while the modular design allows you to choose the antenna based on the gain, scan rate, and physical characteristics required by your project.
Key Features- 60 GHz outdoor antenna kit for PTP and PTMP networks
- 33 dBi antenna gain
- 6° x 6° beam steering
- Compatible with FreeMile 60 radio (part number Z60FEE01)
- Approximate dimensions of 13 cm x 13 cm x 13 cm
- L-shaped mounting bracket included
- Very focused and interference-resilient connection
- Modular design for more flexible installation choices
37 dBi 4° x 4° FreeMile 60 antenna kit
The SAF Tehnika FreeMile 60 37 dBi 4° x 4° antenna kit is designed for outdoor 60 GHz installations in point-to-point scenarios and as a client in point-to-multipoint configurations. When combined with a compatible TNA radio, it allows for highly focused connections, more resistant to interference and suitable for links over longer distances.
This model offers 37 dBi antenna gain, 4° x 4° beam steering, and approximate dimensions of 18 cm x 15 cm x 15 cm. The modular design makes it easy to choose the antenna based on gain, scanning, and physical characteristics of the installation, while assembly is quick and easy. The mounting bracket is not included and the precision mounting kit (code Z60AAMK1) is recommended.
Key Features- 60 GHz outdoor antenna kit for PTP links and PTMP clients
- 37 dBi antenna gain
- 4° x 4° beam steering
- Compatible with FreeMile 60 radio (code Z60FEE01)
- Approximate dimensions of 18 cm x 15 cm x 15 cm
- Modular design to adapt the kit to installation needs
- Very focused and interference-resilient connections
- Mounting bracket not included (precision mounting kit recommended: code Z60AAMK1)
42 dBi 2° x 2° FreeMile 60 antenna kit
The SAF Tehnika FreeMile 60 42 dBi 2° x 2° antenna kit is designed for outdoor 60 GHz networks requiring highly directional connections. According to the datasheet, it can be used in point-to-point links or as a client in point-to-multipoint configurations and, when combined with a compatible TNA radio, allows for a highly focused link, resilient to interference and suitable for increasing operating distance.
This model offers 42 dBi antenna gain, 2° x 2° beam steering, and approximate dimensions of 30 cm x 30 cm x 8 cm. The modular design allows you to select the most suitable antenna based on gain, scanning, and physical characteristics of the installation, while antenna assembly is quick and easy. The mounting bracket is not included and the precision mounting kit (code Z60AAMK1) is recommended.
Key Features- 60 GHz outdoor antenna kit for PTP links and PTMP clients
- 42 dBi antenna gain
- 2° x 2° beam steering
- Approximate dimensions of 30 cm x 30 cm x 8 cm
- Modular design to adapt the kit to installation needs
- Very focused and interference-resilient connections
- Compatible with FreeMile 60 radio (code Z60FEE01)
- Mounting bracket not included (precision mounting kit recommended: code Z60AAMK1)
FreeMile 60 Precision Mounting Kit
The SAF Tehnika FreeMile 60 Precision Mounting Kit is designed to provide a secure and adjustable mount for FreeMile 60 series radio installations. This solution helps optimize device placement with precise elevation and azimuth adjustment.
The kit measures approximately 15cm x 10cm x 10cm and supports poles up to 50mm in diameter using the included clamp. Alternatively, compatibility is indicated without diameter restrictions with hose clamp not included.
Key Features- Mounting kit for FreeMile 60 series radios
- Secure and adaptable solution
- Approximate dimensions 15 cm x 10 cm x 10 cm
- Elevation adjustment of plus or minus 15°
- Azimuth adjustment of plus or minus 15°
- Maximum mast diameter of 50 mm with included clamp
- Mast compatibility without diameter restrictions with hose clamp not included
