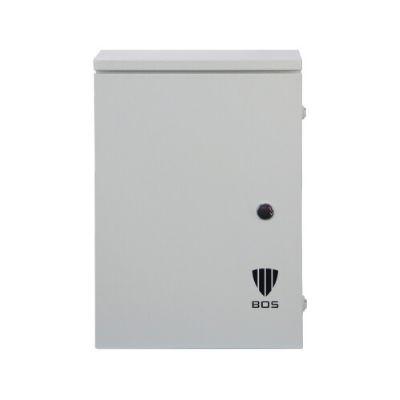

The BOS third-party switch-ready junction box is designed to efficiently manage power and device organization in professional installations. Made of powder-coated galvanized sheet metal and featuring IP53 protection, it integrates multiple outputs, ventilation, and internal lighting to facilitate maintenance and operation. Main Features

• Primary power supply: 230 VAC with screw terminal
• Outputs: 3 x 12 VDC 3 A, 1 x 48 VDC, 1 x 230 VAC
• 2 x 230 VAC Schuko power strips
• Circuit breakers and surge arrester
• Terminal block for ground connection
• Courtesy light controlled by door opening tamper
• Fan for hot air extraction
• DIN rail for installing third-party switches
• Operating temperature: -20°C to 70°C °C
• Dimensions: 350 mm x 350 mm x 220 mm
• Protection rating: IP53
• Material: Powder-coated galvanized sheet metal

The BOS junction box with 8-port PoE switch is designed to offer maximum protection and convenience for networking and video surveillance applications. The IP66-rated tamper-proof metal cabinet ensures resistance to shock and weather, ensuring reliability even in harsh outdoor environments. The integrated 8-port Megabit PoE switch plus 2 uplinks allows you to directly power and connect IP cameras and other network devices, simplifying the infrastructure.

The 3 dedicated 12V DC outputs, along with the cooling fan and multiple service outlets, increase the flexibility of the system, allowing you to manage additional accessories and peripherals in complete safety.

• IP66 tamper-proof metal BOS cabinet
• Integrated 8-port Megabit PoE switch + 2 uplinks
• 3 12V DC outputs of 1A each
• Integrated cooling fan
• 2 multiple service outlets for accessories

The BOS BS-BALB08PL2D1 Power Supply Box is designed to ensure efficient and secure network connectivity and power management in professional systems. Equipped with an 8-port Gigabit PoE Layer 2 switch plus 2 SFP uplink ports, it supports IEEE802.3bt, af/at standards and offers power up to 90 W on the first two ports. The remaining PoE ports provide up to 30 W each, ensuring flexibility for power-hungry devices such as IP cameras or access points.

The tamper-proof metal cabinet with IP66 protection rating is resistant to dust, water and shock, with a key lock and an extraction fan for active cooling. The box integrates 3 12 V DC 1 A outputs, 2 230 Vac Schuko service sockets and a courtesy light activated by the door opening. It is grounded, has waterproof PG7 and M25 cable glands, and is available with optional accessories for wall or pole mounting.Main Features

• IP66 tamper-proof metal cabinet with key lock
• Integrated L2 switch with 8 Gigabit PoE ports + 2 SFP uplinks
• Ports 1-2 up to 90 W (IEEE 802.3bt), ports 3-8 up to 30 W (IEEE 802.3af/at)
• 3 12 Vdc 1 A outputs and 2 230 Vac Schuko service sockets
• Cooling fan and courtesy light with opening tamper
• L2 management with QoS, VLAN, MSTP, and PoE control
• Dimensions 260 x 280 x 200 mm, white color
• Operation from -40 °C to +85 °C
• Optional accessories: wall or pole mounting kit

The BS-BALS08P4GM5D1 solar power station offers a complete solution for powering video surveillance devices in areas without a power grid. Equipped with a 7-port PoE switch, it supports powering cameras and other compatible devices. The integrated industrial 4G router enables remote connection, while the intelligent controller with a 5" LCD display enables efficient management and real-time monitoring. The IP66-rated metal cabinet ensures weather resistance and vandalism protection.

Main Features:

• 7-Port PoE Switch

• Integrated industrial 4G router

• Intelligent controller with a 5" LCD display

• IP66-rated metal cabinet

• Remote management via included software

• 3 12V DC outputs for device power supply

The BS-BALS08PL2M5D2 solar power station offers a complete solution for powering video surveillance devices in areas without a power grid. Equipped with a Layer 2 switch with 8 PoE ports and 2 SFP ports, it supports powering cameras and other compatible devices. The intelligent controller enables remote system management, while the IP66-rated metal cabinet ensures weather resistance and vandalism protection.

Key Features:

• Layer 2 switch with 8 PoE ports and 2 SFP ports

• Intelligent controller for remote management

• IP66-rated metal cabinet

• Ideal for outdoor environments without a power grid

• Support for video surveillance devices

The BOS 8-Port PoE L2 Switch Solar Power Station combines power, connectivity, and remote control in a tamper-resistant galvanized steel cabinet. The integrated switch features 8 Gigabit PoE ports, 2 SFP slots, a maximum PoE budget of 200W, and a data handling capacity of 20Gbps.

The Smart Controller allows you to check battery status, control switch ports, and monitor internal temperature, power outputs, and alarm events. The included software adds geo-localization functions, maintenance user management, remote upgrade, event logging and email notifications.

Main Features

• Layer 2 switch with 8 Gigabit PoE RJ45 ports and 2 SFP slots.
• Ports 1 and 2 with a maximum power of 90 W.
• Ports 3 to 8 with a maximum power of 30 W.
• Maximum PoE budget of 200 W.
• Data handling capacity of 20 Gbps.
• Support for L2 management, QoS, VLAN, MSTP, Multi-broadcast and PoE management.
• CAT5e or CAT6 cabling with a maximum distance of 100 m.
• Primary power supply via a recommended 400 W and 36 V solar panel. Vdc.
• Support for 24 Vdc LiFePo4 battery (not included).
• Maximum charging capacity of 20 A, variable based on the solar panel used.
• Three controllable 12 Vdc and 3 A outputs, one 12 Vdc and 5 A output for NVR and one 24 Vdc and 3 A output.
• Controllable system outputs for fans and courtesy light.
• NVR shelf with dedicated power output.
• Support for NVRs with maximum dimensions of 50 mm x 320 mm x 211 mm.
• Smart Controller with RJ45 port for remote management and monitoring.
• Preconfigured RS485 port for connection to BOS weather stations.
• Provision for optional 4G router with dedicated mounting plate and antenna.
• Input for door opening control and support for optional flood sensor.
• Internal temperature control with fan control.
• 5-inch LCD touch screen for system control.
• Powder-coated galvanized steel cabinet with IP54 and IK10 protection.
• Operating temperature range from -20°C to 70°C.
• Dimensions 660 mm x 380 mm x 270 mm and net weight 18.96 kg.
• Compliance with EN IEC 61439-1:2021, EN IEC 63000:2018 and EN IEC 61439-3:2024 standards.

The IP53 power box with 7 PoE ports and 2 SFP ports is a BOS solution designed for installations requiring physical protection, remote management, and integrated power and switch control. The product uses an IP53 tamper-proof metal cabinet, integrates a switch with 7 PoE ports and 2 SFP uplinks, and includes a Smart Controller with remote monitoring software for system status monitoring.

The platform allows you to check battery status, control switch ports, monitor internal temperature, and manage event alerts. The included software also allows for geographic location of devices, remote upgrades, data import and export, management of temperature, fans, humidity, battery, switch ports, door opening, maintenance users, system logs and email notifications.

On the hardware side, the switch offers 10/100 Base-T PoE RJ45 downlink ports with a maximum power of 30 W per port, 2 10/100/1000 Base-X SFP uplink slots, a maximum PoE budget of 200 W, a data handling capacity of 20 Gbps and support for QoS, VLAN, MSTP and PoE management functions. There are also 3 controllable 12 Vdc 3 A power outputs, as well as dedicated outputs for fan control and courtesy light.

The powder-coated galvanized sheet metal structure, the locking system with a toothed key and double lateral lever lock, together with the operating temperature from -20 °C to 70 °C, contribute to making this BOS solution suitable for demanding installation contexts. The equipment is completed by a 5" LCD touch screen display for system control, an input for door opening control and provision for an optional 4G router.

• Sabotage-proof metal cabinet with IP53 protection rating.
• Integrated switch with 7 10/100 RJ45 PoE ports and 2 10/100/1000 Base-X SFP uplink slots.
• PoE power up to 30 W per port and maximum PoE budget of 200 W.
• Smart Controller for checking battery status, switch ports, internal temperature and alarm management.
• Remote monitoring software included with email notifications, system logs and remote updates.
• 3 remotely controllable 12 Vdc 3 A power outputs.
• System outputs dedicated to fan control and backup light Courtesy.
• QoS, VLAN, MSTP, Multi-broadcast and PoE management.
• CAT5e/6 cabling up to 100 m, with extender mode up to 250 m.
• 5" LCD touch screen display for system control.
• Alarm input for door opening and optional flood sensor.
• EN IEC 61439-3:2024 compliant.

The BOS LiFePO4 battery combines a nominal voltage of 12.8 V with a capacity of 100 Ah and a nominal energy of 1,280 Wh. Lithium iron phosphate technology guarantees a lifespan of more than 4,000 cycles, while the integrated BMS provides complete protections during charging and discharging.

The recommended charging current is 50 A, with maximum charge and discharge values ​​of 100 A. The black ABS case, M8 terminals and weight of 10.5 kg complete a compact structure measuring 260 x 168 x 209 mm.

Main Features

• Lithium iron phosphate LiFePO4 technology.
• Nominal voltage of 12.8 V.
• Nominal capacity of 100 Ah.
• Nominal energy of 1,280 Wh.
• Lifespan of more than 4,000 cycles.
• Integrated BMS with complete protections.
• Absorption charging voltage of 14.4 V.
• Charge cut-off voltage of 14.6 V.
• Discharge cut-off voltage of 10 V.
• Recommended charging current of 50 A.
• Maximum charge and discharge current of 100 A.
• Internal resistance of 25 mOhm.
• Overheat protection during charging at 65 °C and during discharging at 75 °C.
• Low temperature protection during charging at -7 °C.
• Storage temperature of 20 to 30 °C.
• ABS case with M8 terminals.
• Dimensions of 260 x 168 x 209 mm and weight of 10.5 kg.

The 25.6V 50Ah lithium iron phosphate battery is a high-performance solution for applications requiring continuity, safety, and energy efficiency. Featuring a capacity of 1280 Wh and a lifespan of more than 4000 cycles, it ensures long-term reliability. The integrated BMS protects against overcharging, deep discharge, and overcurrent, while maximizing battery life. Thanks to LiFePO4 technology, the battery ensures thermal stability, low self-discharge, and safe operation. With IP65 protection rating, it is suitable for various industrial and professional contexts.

• LiFePO4 technology with a capacity of 25.6 V - 50 Ah (1280 Wh)
• Life cycle of over 4000 cycles at 80% DOD
• Integrated BMS management system for safety and control
• High efficiency: 100% in charge and up to 99% in discharge
• Operating range: charge from 0 °C to +55 °C, discharge from -20 °C to +60 °C
• ABS case with IP65 protection rating
• Compact dimensions: 260 à— 169 à— 208 mm
• Low weight: approximately 8.5 kg
• M8 screw terminals for secure connections

The BOS backup power station is designed to power third-party switches via a 48 V DC output. The tamper-resistant, powder-coated galvanized steel cabinet offers IP54 protection and IK10 resistance, with a side DIN rail for the switch and an optical drawer equipped with 4 blue LC sockets.

The Smart Controller allows you to check the battery status, internal temperature, and power outputs, as well as send alarms for offline battery, voltage, temperature, and door opening. The included software supports remote monitoring, geo-localization, updates, email notifications, user management, and system log viewing.

Key Features

• Primary Power: 230V AC with screw terminal.
• Switch Power: 1 x 48V DC output for third-party switches.
• PoE Budget: Maximum 200W.
• Supported Battery: 12V DC lead-acid battery not included, with 1A charging capacity.
• Controllable Outputs: 3 x 12V DC outputs, 3A each, remotely controllable.
• System Outputs: 1 x 12V DC output for fan control and 1 x 12V DC output for the backlight courtesy.
• Connectivity: 1 RJ45 port for the Smart Controller and optical drawer with 4 blue LC sockets included.
• Alarm inputs: Door opening control and support for optional flood sensor.
• Electrical protection: 10 A circuit breaker on the primary circuit, 20 kA surge arrester and 16 A circuit breaker on the battery circuit.
• Installation: Lateral DIN rail, provision for floor base and 230 V AC service multi-socket.
• Structure: Powder-coated galvanized steel according to UNI EN ISO 12944 C3-H, lock with toothed key and 2 lateral lever locks.
• Protection: IP54 rating and resistance IK10.
• Operating conditions: Operating temperature from -20 °C to 70 °C and humidity from 0 to 90 %.
• Dimensions: 560 x 380 x 220 mm.
• Weight: 14.48 kg net and 17.22 kg gross.
• Compliance: Complies with EN IEC 61439-3:2024 and the EMC, RoHS and LVD directives.

The BOS BS-BBAL08PD2 backup power station is a robust and reliable solution for ensuring continuous power supply for video surveillance devices in critical environments. Equipped with an 8-port PoE switch, it supports devices with up to 30W per port, for a total maximum power of 120W. The compact design and IP66 rating allow for outdoor installation, while the tamper-proof metal cabinet ensures the safety of internal components.

The system is powered by a 230V mains supply and supports LiFePO4 lithium batteries or 12V VRLA lead-acid batteries, ensuring backup power in the event of a mains power failure. Remote management is possible via dedicated software, which allows for monitoring operating status, viewing alarms, geographic location of devices, and firmware updates.

Main Features

• Support for up to 8 PoE-powered devices

• 8-port 10/100Base-TX PoE switch, 120W max

• Protection against surges and electromagnetic discharges up to 6kV

• Main power supply 230V, support for 12V batteries (LiFePO4 or VRLA lead)

• Remote management via dedicated software

• Status monitoring operating and alarm sending

• Geographical location of devices

• Remote firmware update

• Sabotage-proof metal cabinet

• IP66 protection rating

• Operating temperature: -20°C +70°C

• Storage temperature: -40°C +85°C

• Operating humidity: 0-90%

• Dimensions: 500 mm x 380 mm x 220 mm

• Weight: approximately 15 kg

The BOS BS-BBAL08PL2D2 backup power station is designed to ensure continuous and secure power for video surveillance devices. Equipped with a Layer 2 switch with 8 PoE ports and 2 SFP ports, it supports 24V batteries, providing backup power in the event of a main power outage. The compact design and IP66 rating allow for outdoor installation, while the tamper-proof metal cabinet ensures the safety of internal components.

The system allows remote management via dedicated software, which allows monitoring operating status, viewing alarms, geo-localizing devices, and updating firmware. Additionally, you can check battery status, switch port status and control, internal temperature, and receive notifications for critical events such as battery offline, low battery voltage, or output status.

Main Features

• Layer 2 switch with 8 PoE ports and 2 SFP ports

• Support for 24V batteries

• Sabotage-resistant metal cabinet with IP66 protection rating

• Remote management via dedicated software

• Monitoring of operating status and sending alarms

• Geographical location of devices

• Firmware update Remotely

• Battery status check and switch port control

• Internal temperature monitored

• Send notifications for critical events

• Compact design for outdoor installations

• Advanced security against unauthorized access
