Microset

The MICROSET 12V 9Ah battery offers consistent and reliable performance for applications requiring backup power or independent power. Thanks to its sealed construction and rechargeable technology, it represents a safe and versatile solution for various professional contexts, from video surveillance systems to UPS, alarm systems and access control.

This battery guarantees long operating life and reduced maintenance requirements, ensuring continuity of service even under intensive use.

• MICROSET 12V 9Ah rechargeable battery
• Ideal for UPS, video surveillance, and security systems
• Reliability and autonomy in the event of a power outage
• Sealed construction for greater safety
• Long life and low maintenance

The Microset 20 A DC/DC converter is a robust and reliable, high-efficiency solution designed to obtain a nominal 12 V from a 24 V system in automotive applications. It offers a 13.5 V output, stable, interference-free voltage, and low power dissipation, in a robust and compact anticorodal aluminum structure with quick-connect connections.

This model operates with a 20-30 V DC input and a 20 A output current. It integrates protection against overload, output overvoltage, and reverse polarity, with automotive approval pursuant to EC Directive 2009/19. It is suitable for trucks, buses, boats, rail transport, industrial systems and renewable energy plants.

Main features

• DC/DC converter to obtain 12 V nominal from a 24 V system
• Input 20-30 V DC
• Output 13.5 V DC
• Output current 20 A
• Efficiency greater than 90%
• Typical RMS ripple less than 80 mV
• Stability plus or minus 1%
• Low power dissipation
• Stable output voltage free from interference
• Protection against overload, output overvoltage and reverse polarity
• Quick-plug connections
• Anti-corrosive aluminum structure
• Dimensions 130 x 120 x 45 mm
• Weight 0.7 kg
• Ambient temperature -10 to +45 °C, limit -15 to +50 °C
• Maximum humidity 90% non-condensing

The Microset DC-DC converter performs step-up and step-down conversion with galvanic isolation between input and output. Designed for rail mounting, it accepts a nominal input voltage of 24 V with a range of 20 to 30 V and provides a nominal output of 13.5 V, adjustable from 10 to 17 V.

The output current of 15 to 20 A allows for use in a variety of applications. Fanless operation reduces the need for mechanical components, while floating polarity, overload and reverse polarity protections contribute to operational safety.

Key Features

• Step-up and step-down DC-DC conversion
• Nominal input voltage of 24 V
• Input range of 20 to 30 V
• Nominal output voltage of 13.5 V
• Adjustable output from 10 to 17 V
• Output current of 15 to 20 A
• Output voltage regulation of plus or minus 15%
• Galvanic isolation between input and output
• Floating polarity
• Rail mounting
• Fanless operation
• Overload protection
• Reverse polarity protection polarity

The 56 V, 12 A stabilized switching power supply with battery interface is designed to ensure high efficiency and continuity of service in the professional field. The Microset proposal ensures controlled ventilation and DIN rail installation, making it suitable for automation, radio telecommunications and general use applications.

The integrated 3 A battery charger allows battery management, offering a reliable system for contexts requiring stable power and continuous operation.

• Output voltage 56 Vdc
• Output current 12 A
• Integrated 3 A battery charger
• High efficiency
• Continuous service
• Controlled ventilation
• DIN rail installation
• For automation, radio telecommunications and general use

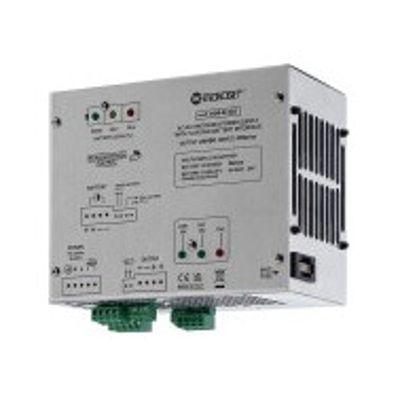

Designed for critical applications in radio telecommunications, networking, automation, industrial processes, and emergency systems, this Microset stabilized power supply delivers 56 V DC, 20 A continuous current, and a peak current of 35 A for one second. Its 1200 W power rating and efficiency exceeding 92 percent ensure high performance, while the IP20 aluminum case allows for DIN rail installation.

The two output channels power the load and connect an external battery with floating polarity. When mains power is available, the system powers the load and automatically recharges the battery; during a blackout, the battery takes over without interruption. The controller disconnects the load and the battery when the discharge limit is reached, with automatic resetting when the mains supply is restored.

Main features

• Output: 56 V DC and 20 A continuous.
• Inrush current: 35 A for one second.
• Power: 1200 W.
• Battery charger: 6 A with stabilized voltage and constant current for lead-acid batteries.
• Input: 230 V AC with tolerance plus or minus 10 percent and frequency of 50-60 Hz.
• Management: Microprocessor controller for continuous monitoring of the mains supply and battery status.
• Continuity of operation: Immediate switchover to external battery power in the event of a power failure. mains.
• Battery protection: Automatic disconnection when the discharge limit is reached and reset when the mains supply is restored.
• Indicators: Front LEDs and dry contacts on relays for battery status, mains failure and operating conditions.
• Protections: Overload, output overvoltage, short circuit, overtemperature, low battery and polarity reversal.
• Redundancy: 1+1 parallel connection.
• Cooling: Forced ventilation with speed control and MAGLEV technology.
• Installation: IP20 aluminum case with metal clips for DIN rail and quick-connect terminal blocks.
• Operating conditions: Temperature from -15 to +50 °C, maximum humidity of 90 percent non-condensing and maximum altitude of 2000 m m.
• Dimensions and weight: 265 x 105 x 165 mm and 3 kg.

The HP 114RM power supply from MICROSET is a stabilized switching power supply designed for professional applications requiring continuity and reliability. Built in a 2U 19'' rack format, it offers a 13.5 V DC output with a maximum current of 14 A. The microprocessor control system ensures constant monitoring of the mains and batteries, with visual and audible warnings in the event of anomalies. It is also possible to manage remote alarms for mains failure or battery failure.

• Stabilized output at 13.5 V DC
• Maximum output current: 14 A
• Format: 19'' rack drawer, 2U height
• Stabilized switching power supply
• Active control via microprocessor
• Optical and acoustic signals for low, disconnected or exhausted battery
• Remote alarm for mains failure or battery problems

The HP 125RM power supply from MICROSET is a professional device in a 19'' (2U) rack drawer format, ideal for applications requiring a reliable and stable power source with high capacity. It offers a 13.5 V DC output with a maximum current of 25-30 A. The integrated microprocessor control system ensures automatic monitoring of the mains and battery status, with local optical and acoustic signals in the event of low, disconnected or exhausted batteries, and the possibility of managing remote alarms.

• Stabilized output voltage: 13.5 V DC
• Maximum output current: 25-30 A
• Format: 19'' rack drawer, 2 U height
• Stabilized switching power supply
• Active microprocessor control
• Optical and acoustic signals for low, disconnected or exhausted batteries
• Remote alarm for mains failure or low/exhausted battery

The HP 135RM power supply from MICROSET is a professional device designed to ensure high performance and reliability in the most demanding applications. Built in a 2U 19'' rack drawer format, it offers a stabilized 13.5 V DC output with a maximum current of 35 A. Microprocessor control allows automatic monitoring of the mains and battery status, with visual and audible warnings in the event of low, disconnected or exhausted batteries, and supports remote alarm management.

• Stabilized output voltage: 13.5 V DC
• Maximum output current: 35 A
• Format: 19'' rack drawer, 2 U height
• Stabilized switching power supply
• Active microprocessor control
• Optical and acoustic warnings for low, disconnected or exhausted batteries
• Remote alarm for mains failure or low or exhausted battery

The HP 155RM power supply from MICROSET is designed for professional applications requiring high power and maximum reliability. Housed in a 2U 19'' rack cabinet, it delivers 13.5 V DC with a maximum current of 55 A. The microprocessor control system ensures constant monitoring of the electrical network and battery status, providing visual and audible warnings of low, disconnected, or flat battery conditions. It also includes a remote alarm function for remote management of anomalies.

• Stabilized output voltage: 13.5 V DC
• Maximum output current: 55 A
• Format: 19'' rack drawer, 2U height
• High-power stabilized switching power supply
• Active microprocessor control
• Optical and acoustic signals for low, disconnected or exhausted batteries
• Remote alarm for mains failure or low or exhausted battery

The HP 230RM power supply from MICROSET is a high-performance solution dedicated to professional applications that require very high power and maximum reliability. Built in a 19'' rack format with a height of 2U, it supplies a stabilized 13.5 V DC output with a maximum current of 230 A. Thanks to the microprocessor control system, it constantly monitors the mains and batteries, signaling any anomalies via visual and audible indicators. The remote alarm function also allows for safe and effective management even from a distance.

• Stabilized output voltage: 13.5 V DC
• Maximum output current: 230 A
• Format: 19'' rack drawer, 2U height
• Stabilized switching power supply with very high power
• Active control via microprocessor
• Optical and acoustic signals for low, disconnected or exhausted batteries
• Remote alarm for mains failure or low or exhausted battery

The HP 410RM power supply from MICROSET is a high-end solution designed for professional applications requiring very high power and operational continuity. In a 19'' rack format with a height of 2U, it provides a stabilized 13.5 V DC output with a maximum current of 410 A. Microprocessor control ensures constant monitoring of the electrical network and battery status, with visual and audible warnings for low, disconnected, or flat battery conditions. The remote alarm function is also available to ensure effective management even from a distance.

• Stabilized output voltage: 13.5 V DC
• Maximum output current: 410 A
• Format: 19'' rack drawer, 2U height
• Stabilized switching power supply with very high power
• Active control via microprocessor
• Optical and acoustic signals for low, disconnected or exhausted batteries
• Remote alarm for mains failure or low or exhausted battery
