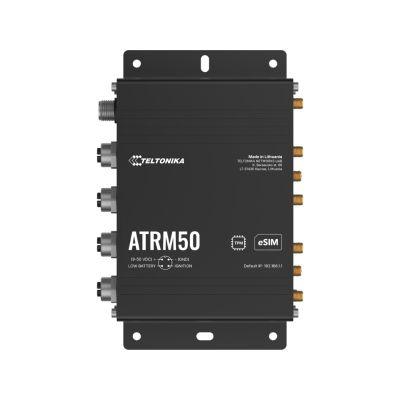

The Teltonika Networks ATRM50 5G vehicle router is a professional vehicle connectivity solution, designed with robust M12 interfaces and industrial power supplies to ensure reliability in the mobile environment. It integrates 4 Gigabit M12 X-code Ethernet ports, dual SIM, 2.4G and 5G Wi-Fi, GNSS, and a USB port, offering extensive integration flexibility.

Based on the RutOS (Linux OpenWrt) operating system, it supports advanced security, management, and remote monitoring features, as well as the possibility of firmware customization via SDK and Package Manager. The extensive set of authentication, firewall and attack prevention tools makes it suitable for professional and fleet applications.

• 4 M12 X-code 10/100/1000 Mbps Ethernet ports
• 2 Mini SIM 2FF 1.8 V/3 V SIM slots
• 2.4G and 5G dual band Wi-Fi
• 4 SMA connectors for Mobile, 2 RP-SMA for Wi-Fi, 1 SMA for GNSS
• 1 USB A port for external devices
• 2 I/O inputs for ignition detection and low battery
• 9 – 50 VDC power supply with reverse polarity and overvoltage protection
• Consumption: < 5.5 W idle, < 16 W max
• MediaTek Dual-Core 880 MHz CPU, 256 MB RAM, 16 MB NOR + 256 MB NAND
• Advanced firewall, VLAN, NAT, DMZ, DDOS prevention, TPM 2.0
• Management via Web UI, SSH, SNMP, MQTT, TR-069 and RMS
• RutOS operating system with SDK and Package Manager

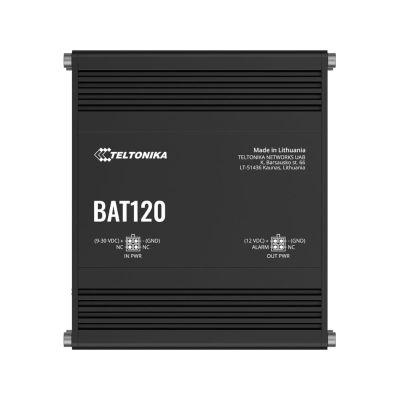

The BAT120 22W 4-Pin Power Module is an uninterruptible power system designed to ensure power continuity for compatible Teltonika Networks devices even in the event of a power outage or fluctuation. It supports input voltages from 9 to 30 VDC and provides a 12 VDC output when operating in battery mode.

With a maximum power output of 22 W and current of up to 1.8 A in battery mode, the BAT120 ensures reliable performance. It features reverse polarity and input overvoltage protection, as well as 3 A output overcurrent protection, ensuring maximum operational safety.

The device is equipped with two 4-pin industrial DC ports for Power IN and Power OUT, dedicated status LEDs, and an On/Off switch. The built-in 2600 mAh 17 Wh battery can power devices for up to 6 hours, depending on the application.

Key Features

• UPS module with 4-pin industrial DC connectors
• 9 - 30 VDC input
• 12 VDC output in battery mode
• Maximum power 22 W 1.8 A in battery mode
• 2600 mAh 17 Wh battery capacity
• Reverse polarity and overvoltage protection
• 3 A overcurrent protection
• Up to 6 hours of power supply
• 1 x IN PWR LED, 1 x OUT PWR LED, 4 x Power status LEDs
• On/Off switch Sled
• Aluminum enclosure
• Dimensions 100 x 30 x 85 mm, weight 315 g
• DIN rail or flat surface mount

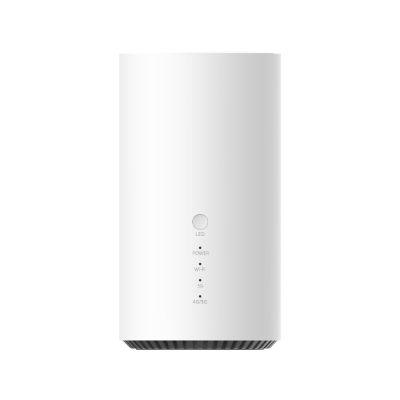

The Teltonika Networks Altos 5G Wi-Fi 7 router is designed for 5G Fixed Wireless Access applications, offering a dedicated solution for Enterprise and Smart City scenarios. It integrates into a unified ecosystem that includes access points and switches, with centralized management via the Remote Management System.

Thanks to support for the Teltonika Remote Management System RMS, the device enables remote monitoring and management on a single platform, even in multi-vendor environments. Management features include Web UI with HTTP and HTTPS, firmware updates, CLI, system logs and events, as well as FOTA for automatic updates from the server.

Advanced protocols and tools such as SSH, SMS, TR-069, MQTT, SNMP, JSON-RPC, and dedicated Teltonika Networks APIs for integration and automation are also supported. The ecosystem includes enterprise features with integrated VPN, VLAN and QoS, advanced security tools, and automation via RutOS and TswOS.Key Features

• Wi-Fi 7 Router for 5G Fixed Wireless Access
• Ideal for Enterprise and Smart City applications
• Centralized management via Teltonika Remote Management System RMS
• Web UI with HTTP and HTTPS, CLI, and system logs
• Firmware update via FOTA with automatic notifications
• Support for SSH, SMS, TR-069, MQTT, SNMP, JSON-RPC
• Teltonika Networks Web API beta
• Integrated ecosystem with access points and switches

The Teltonika DAP140 is a compact and reliable industrial access point designed to ensure stable Wi-Fi 4 connectivity in critical scenarios. With support for mesh mode (802.11s), fast roaming (802.11r), and intelligent network management (802.11k/v), it is ideal for environments where clients frequently roam.

The RutOS operating system allows for comprehensive management via a web interface, SNMP, JSON-RPC API, or Teltonika's RMS platform. Its hardware features make it suitable for DIN rail, wall, or flat surface installations.

• Wi-Fi standard 802.11b/g/n with AP, client, mesh (802.11s), Multi-AP modes
• Up to 50 simultaneous connected devices
• Advanced security: WPA3-SAE, WPA2/3-EAP, MAC filtering, SSID hiding
• Two 10/100 Mbps Ethernet ports, auto MDI/MDIX
• 9-30V DC power supply via industrial connector or passive PoE on LAN2
• Aluminum enclosure, DIN rail, wall, or flat surface mount
• Operating temperature: -40°C to +75°C
• Management via RutOS, RMS, SNMP, JSON-RPC API

The Teltonika DAP142 is an access point designed for industrial applications requiring reliable wireless connectivity, robustness and flexibility. Compatible with the WiFi 4 (802.11b/g/n) standard, it supports Access Point, Client and Mesh (802.11s) modes with fast roaming, offering stable coverage and the ability to manage up to 50 simultaneous devices.

The compact structure integrates two 10/100 Mbps RJ-45 ports, one RS-232 (DB9) port, status LEDs, reset button and RP-SMA antenna. Power can be supplied via 3-pin connector or via Passive PoE 9-30 V DC, with reverse polarity and surge protection. It consumes less than 2W and features software protections such as firewall, WPA/WPA2/WPA3, MAC filters and remote management via Web or CLI.

The aluminum enclosure with DIN rail support ensures resistance and durability in harsh environments. With IP30 protection rating and an operating range of -40°C to +75°C, the DAP142 is suitable for demanding and critical industrial scenarios.

• Wireless Standard: IEEE 802.11b/g/n (WiFi 4)
• Modes: Access Point, Client, Mesh (802.11s) with fast roaming
• Simultaneous Connections: Up to 50 Devices
• Ports: 2 - RJ-45 10/100 Mbps, 1 - RS-232 (DB9), removable RP-SMA antenna
• Power Supply: 9-30 V DC via 3-pin connector or Passive PoE
• Maximum Power Consumption: <2 W
• Construction: Aluminum enclosure, DIN rail mounting
• Protection: IP30
• Operating temperature: -40 °C to +75 °C
• Dimensions: 113.1 - 68.6 - 25 mm
• Weight: approx. 0.149 kg

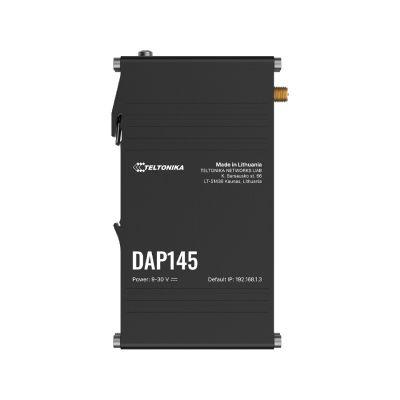

The DAP145 RS485 Wi-Fi access point is an industrial device designed for automation, energy, and smart city applications. Teltonika Networks integrates IEEE 802.11b/g/n wireless connectivity with bridging functionality between RS485 devices and IP networks, enabling integration via Serial over IP and Modbus.

The device features two 10/100 Mbps RJ45 Ethernet ports, an RP-SMA Wi-Fi antenna connector, and a 6-pin RS485 terminal block for a 2-wire or 4-wire interface. It supports Access Point and Station modes, up to 50 simultaneous connections, 802.11s wireless mesh capabilities, and advanced security tools, including a configurable firewall, VLANs, and multiple VPN protocols such as OpenVPN and IPsec.Key Features

• Wireless IEEE 802.11b/g/n Wi-Fi 4 AP and STA modes
• Up to 50 simultaneous Wi-Fi connections
• 2 RJ45 10/100 Mbps Ethernet ports
• 1 6-pin RS485 interface (2-wire or 4-wire)
• RS485 bridging over IP with Serial over IP and Modbus
• Advanced security with firewall, VLANs, 802.1x, and VPN OpenVPN IPsec GRE PPTP L2TP
• RP-SMA Wi-Fi antenna connector

The Teltonika Raspberry Pi HAT+ 4G Calyx module is an embedded cellular connectivity solution designed to provide mobile internet access to Raspberry Pi 4 and 5-based systems in scenarios where Wi-Fi or Ethernet are unavailable or unreliable. It mounts directly onto the SBC via a 40-pin header, ensuring compact and tidy integration.

The 4G version supports LTE Cat 4 with speeds up to 75 Mbps download and 50 Mbps upload over LTE-FDD, as well as LTE-TDD, DC-HSPA+, 3G, and 2G. It features a push-pull Nano SIM slot, two SMA connectors for mobile antenna, status LEDs, and power via a 40-pin header or USB Type-C. Modem control via GPIO allows wake and reset functions directly from the Raspberry Pi pins.

Main Features

• Raspberry Pi HAT+ module with 4G LTE Cat 4 connectivity
• Up to 75 Mbps DL and 50 Mbps UL on LTE-FDD
• Supports LTE-TDD, DC-HSPA+, 3G, and 2G
• Compatible with Raspberry Pi 4 and 5, mounts on a 40-pin header
• One 4FF push-pull Nano SIM slot
• Two SMA connectors for mobile antenna
• Status LEDs: Power, NET IND, NET STAT
• Modem control via GPIO
• Dimensions: 56 x 23.11 x 95.48 mm; weight: 57 g

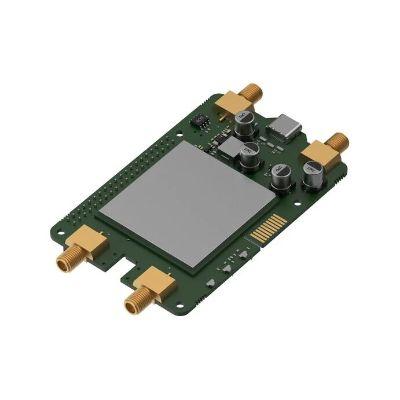

The Teltonika Raspberry Pi HAT+ 5G Calyx module is an embedded cellular connectivity solution designed to ensure reliable mobile internet access on Raspberry Pi 4 and 5, especially in environments where Wi-Fi or Ethernet are unavailable or unstable. It mounts directly onto the SBC via a 40-pin header, ensuring compact and tidy integration.

It supports Sub-6GHz 5G networks in SA and NSA modes with speeds of up to 3.4 Gbps download and 900 Mbps upload thanks to 4x4 MIMO technology in the downlink. It is backward compatible with 4G LTE Cat 19 up to 1.6 Gbps download and 200 Mbps upload, and with 3G up to 42 Mbps download and 5.76 Mbps upload. It features four SMA connectors for mobile antennas, one 4FF push-pull Nano SIM slot, Power, NET IND, and NET STAT status LEDs, PCM support for low-latency audio, and modem control via GPIO.

Power can be supplied via the Raspberry Pi header at 5 VDC and 3.3 VDC or via the 5 VDC USB Type-C port. The operating temperature ranges from -40°C to 75°C. The dimensions are 56 x 23.11 x 100.8 mm and the weight is 57 g.

Main Features

• Raspberry Pi HAT+ Module with 5G Sub-6GHz SA and NSA
• Up to 3.4 Gbps DL and 900 Mbps UL in 5G
• 4G LTE Cat 19 up to 1.6 Gbps DL and 200 Mbps UL
• 3G support up to 42 Mbps DL and 5.76 Mbps UL
• 4 SMA connectors for mobile antenna
• 1 4FF push-pull Nano SIM slot
• 40-pin header with GPIO and PCM audio functions
• Power supply 5 VDC and 3.3 VDC from header or USB Type-C 5 VDC
• Status LEDs: Power, NET IND, NET STAT
• Operating temperature: -40°C to 75°C
• Dimensions: 56 x 23.11 x 100.8 mm; weight: 57 g

The Teltonika RedCap Calyx Raspberry Pi HAT+ 5G module is designed to provide 5G mobile connectivity on Raspberry Pi 4 and 5 platforms via a 40-pin GPIO header. It offers a compact solution that can be integrated into IoT and industrial projects requiring reliable cellular communication.

It supports Sub-6GHz 5G NR SA networks with speeds up to 223 Mbps download and 123 Mbps upload, as well as backward compatibility with 4G LTE Cat 4 with speeds up to 195 Mbps download and 105 Mbps upload. It features two SMA connectors for mobile antennas, one 4FF push-pull Nano SIM slot, and status LEDs for Power, NET IND, and NET STAT.

Power can be supplied via the Raspberry Pi headers at 5 VDC and 3.3 VDC or via USB Type-C at 5 VDC. The module operates over a temperature range of -40°C to 75°C, measures 56 x 23.11 x 95.48 mm, and weighs 57 g.

Key Features

• Raspberry Pi HAT+ Module with 5G NR SA Sub-6GHz
• Up to 223 Mbps DL and 123 Mbps UL in 5G
• 4G LTE Cat 4 up to 195 Mbps DL and 105 Mbps UL
• 2 SMA connectors for mobile antenna
• 1 4FF push-pull Nano SIM slot
• 40-pin GPIO header compatible with Raspberry Pi 4 and 5
• 5 VDC and 3.3 VDC power supply Header or USB Type-C 5 VDC
• Status LEDs: Power, NET IND, NET STAT
• Operating temperature: -40°C to 75°C
• Dimensions: 56 x 23.11 x 95.48 mm; weight: 57 g

The NTP001 is a Teltonika Stratum1 network time server designed to synchronize UTC time with sub-millisecond accuracy in public or private networks, even without an Internet connection. Thanks to the GNSS module, it supports GPS, GLONASS, Galileo, BeiDou, and QZSS constellations to provide precise time guidance to network devices.

This compact plug-and-play solution includes one 10/100Mbps Ethernet LAN port (auto MDI/MDIX), RS232 and RS485 serial interfaces, three configurable digital inputs and three configurable digital outputs, and one analog input. It features remote monitoring and reboot functions, supports Modbus TCP and MQTT gateways, and can be managed via a web interface, SSH, SNMP, and JSON-RPC API. It also offers access control with TACACS+, RADIUS, and a web filter.

The Teltonika OTD140 is an industrial router designed for outdoor applications with LTE Cat4 mobile connectivity (up to 150Mbps download and 50Mbps upload), also compatible with 3G/2G networks. The dual-SIM design with automatic switching ensures always-on connection in the event of a main network failure.

The hardware structure is based on a robust PC+ASA plastic case with IP55 protection and an integrated bracket for pole or wall mounting. It features two 10/100Mbps auto MDI/MDIX Ethernet ports: one PoE-in port for powering via RJ45 cable and one PoE-out port for supplying power up to 15"24W. The power supply supports voltages from 42.5 to 57VDC and offers protection against reverse polarity and transient surge.

Key Features

• LTE Cat4 mobile connectivity with dual SIM and automatic failover
• 2 10/100Mbps auto MDI/MDIX RJ45 ports: PoE-in and PoE-out (802.3af/at)
• IP55 industrial PC+ASA enclosure with pole or surface mounting
• RutOS operating system (based on OpenWrt) with web interface, CLI, management via RMS, SNMP, MQTT, firewall and VPN
• QoS support, static and dynamic routing (BGP, OSPF v2, RIP, EIGRP, NHRP), Modbus TCP, NTP, DNS, SMS/USSD
• Mediatek 580MHz CPU, 128MB RAM, 16MB flash
• Operating temperature "40°C to +75°C, humidity 10"90% non-condensing
• Dimensions 110-49.3-235mm, weight varies depending on configuration
• Certifications CE, UKCA, FCC, IC, RCM, EAC; EMC and IEC62368-1 compliant
