The HikCentral 2-Lane Parking Module License from Hikvision is a package designed to expand the basic video surveillance system with functions dedicated to entry and exit management. The solution includes 2 lanes and 2 ANPR cameras, offering the basic functions needed for gate control.

With Hikvision it is possible to manage display screens, calls to the center from video intercom terminals or access control and barrier control, thus supporting a more orderly management of vehicle access.

• HikCentral parking module license with entry and exit management
• Includes 2 lanes
• Includes 2 ANPR cameras
• Based on a basic video surveillance system
• Basic functions for Entrance and Exit management
• Support for display screens
• Call to the center from video intercom terminals
• Call to the center from access control terminals
• Barrier control

The Bi-spectrum thermal and optical bullet camera integrates a 256 x 192 pixel thermal sensor with a 6.9 mm lens and a 5 MP optical module with an 8 mm lens. HIKMICRO's AI GUANLAN model improves perimeter protection through precise detection of people and vehicles, reducing false alarms.

Bi-spectrum image fusion and Picture-in-Picture mode facilitate event verification. The camera also supports temperature measurement, thermal anomaly alarms, and dynamic fire and smoke detection. Hybrid IR and white light illumination reaches 60 m, while audible and visual alerts encourage immediate response.

IP67 IK10 protection, operation from -40 °C to 65 °C and PoE power supply make the device suitable for monitoring villas, communities, parking lots, warehouses and construction sites.

Main Features

• Uncooled VOx UFPA thermal sensor with a resolution of 256 x 192 pixels.
• Pixel pitch of 12 micrometers and NETD less than or equal to 25 mK.
• 6.9 mm thermal lens with a field of view of 24.9° x 18.7°.
• 5 MP optical module with a resolution of 2688 x 1944 pixels.
• 8 mm optical lens with F1.6 aperture and WDR 120 dB.
• Bi-spectrum image fusion and Picture in Picture mode.
• AI analysis for line crossing, intrusion, entry and exit from a region.
• Support for up to 8 VCA rules in total.
• Temperature measurement from -20 °C to 150 °C with an accuracy of plus or minus 8 °C.
• Point, area and line measurement, with up to 21 rules.
• Dynamic detection of up to 10 fire points and smoke detection algorithm.
• Hybrid IR, white light and Smart mode illumination with a range of up to 60 m.
• Audio and visual alarms with adjustable flash frequency.
• H.265, H.264 and MJPEG video compression.
• Local storage on MicroSD, SDHC and SDXC and support NAS.
• 10M/100M RJ45 Ethernet interface and half-duplex RS-485 interface.
• Two alarm inputs and outputs, one audio input and output.
• 12 VDC power supply or PoE 802.3at class 4, with a maximum consumption of 16 W.
• IP67 IK10 protection and operation from -40 °C to 65 °C.
• Dimensions: 349.1 x 113 x 105 mm and weight: 1710 g.

Hikvision's 384 x 288 9.7 mm Bi-Spectrum Thermal Camera, part of the HikMicro catalog, is a network bullet camera designed for perimeter protection and fire prevention applications in critical infrastructure such as airports, railways, prisons, power plants, and 4S stores. The device combines a thermal module with a 384 x 288 Vanadium Oxide Uncooled Focal Plane Arrays sensor and 9.7 mm lens with a 2688 x 1520 optical module and 6.4 mm lens, offering Bi-spectrum viewing, image fusion, and Picture-in-Picture to improve scene recognition.

The solution supports temperature measurement with 3 rule types and up to 21 total rules, with a range from -20°C to 150°C, as well as dedicated functions such as dynamic fire detection and smoke detection. Thanks to the IR illuminator with a range of up to 50 m, VCA functionality and IP67, IK10 and NEMA 4X protections, it is suitable for outdoor operating environments where resistance and reliability are required.

• Bi-spectrum network bullet camera for perimeter protection and fire prevention
• Thermal module with 384 x 288 resolution, 12 um pixel pitch, NETD less than or equal to 20 mK and 9.7 mm lens
• Optical module with 1/2.7" CMOS sensor, 2688 x 1520 resolution and 6.4 mm lens
• Bi-spectrum Image Fusion, Picture in Picture and Target Coloration functions
• Temperature measurement with 3 types of rules and 21 total rules
• Temperature range from -20 °C to 150 °C with Accuracy +/- 8°C
• Dynamic fire detection up to 10 points and smoke detection up to 10 points
• VCA with 4 types of rules and up to 8 rules in total
• IR illuminator with a range of up to 50 m
• H.265 and H.264 video compression
• Local storage on MicroSD up to 512G and NAS support
• IP67, IK10 and NEMA 4X protections

The 384 x 288 15.4 mm Bi-Spectrum Thermal Camera is a network bullet solution designed for perimeter protection and fire prevention applications in critical infrastructure. This Hikvision model, part of the HikMicro catalog, combines advanced thermal capabilities, video analytics, and a ruggedized design for outdoor installations with moderate corrosion protection requirements.

The thermal channel supports video streams up to 384 x 288 at 25 fps, while the optical channel reaches up to 2688 x 1520 at 25 fps or 30 fps. The camera offers H.265 and H.264 compression, G.722.1, G.711ulaw, G.711alaw, MP2L2, G.726 and PCM audio compression, as well as local storage on microSD, SDHC or SDXC up to 512 GB, NAS and Auto Network Replenishment.

On the integration level, it has 1 10M/100M RJ45 port, 1 half-duplex RS-485 interface, 1 3.5mm audio input, 1 linear audio output, 2 alarm inputs and 2 relay outputs with configurable actions. IP67 protection, IK10 resistance, NEMA 4X housing, operation from -40 °C to 70 °C and the Moderate Protection classification of the HikMicro catalog make it suitable for harsh professional scenarios.

Main Features

• Bi-Spectrum network bullet camera for perimeter protection and fire prevention
• Thermal channel up to 384 x 288 at 25 fps
• Optical channel up to 2688 x 1520 at 25 fps or 30 fps
• H.265 and H.264 video compression, with MJPEG in the sub-stream
• G.722.1, G.711ulaw, G.711alaw, MP2L2, G.726 and PCM audio compression
• Local storage on microSD, SDHC and SDXC up to 512 GB, NAS and ANR
• 1 RJ45 10M/100M port, 1 RS-485 interface, 3.5 mm audio input and linear audio output
• 2 alarm inputs and 2 relay outputs with configurable actions
• IP67, IK10 protection and NEMA 4X corrosion-resistant housing
• HikMicro Moderate Protection rating for environments with moderate corrosion resistance needs

The Hikvision 384 x 288 7.6 mm Bi-Spectrum Thermal Camera, part of the HikMicro catalog, is a bi-spectrum network bullet camera designed for perimeter protection and fire prevention in critical infrastructure. It combines a thermal module with an uncooled 384 x 288 VOx sensor and a 12 m pixel pitch with a 2688 x 1520 optical channel, providing a combined view useful for monitoring complex scenarios.

The thermal module adopts a 7.6 mm lens, F1.0 aperture, 35° x 26.1° field of view, and NETD less than or equal to 20 mK at 25 °C. The optical channel uses a 1/2.7" progressive scan CMOS sensor with a 4.3 mm lens, 120 dB WDR and IR illuminator with a range of up to 30 m.

The camera supports advanced functions such as bi-spectrum image fusion, picture in picture, target colorization, EIS stabilization on the thermal channel, dynamic fire detection, smoke detection and temperature measurement with a total of 21 rules including points, areas and lines. It is also suitable for environments with moderate anti-corrosion requirements thanks to the anti-corrosion coating and NEMA 4X compliance.

Main features

• Bi-spectrum network bullet camera for perimeter protection and fire prevention
• Thermal module with 384 x 288 resolution, Vanadium Oxide Uncooled Focal Plane Arrays sensor and 12 m pixel pitch
• 7.6 mm thermal lens with F1.0 aperture and field of view 35° x 26.1°
• NETD less than or equal to 20 mK at 25 °C
• Optical channel with 2688 x 1520 resolution and 4.3 mm lens
• 120 dB WDR and minimum illumination of 0.0089 Lux, 0 Lux with IR
• IR up to 30 m with intensity and angle automatically adjusted
• 2x, 4x and 8x digital zoom
• VCA with 4 types of rules and up to 8 rules in total
• Temperature measurement from -20 °C to 150 °C with accuracy plus or minus 8 °C
• Dynamic fire detection up to 10 points and smoke detection up to 10 points
• H.265 and H.264 video compression
• Local storage on microSD up to 512 G, NAS and ANR
• IP67 protection, IK10 and NEMA 4X anti-corrosion

The 256GB MicroSD memory card is a MicroSD storage solution designed for devices compatible with the MicroSDHC, MicroSDXC, MicroSDHC UHS-I and MicroSDXC UHS-I standards. In the Hikvision catalog, this model offers a capacity of 256 GB, FAT32 file system and TLC NAND Flash technology, with a maximum read speed of up to 95 MB/s and a maximum write speed of up to 24 MB/s.

Thanks to the Class 10 U1, the 256 GB MicroSD memory card represents a reliable support for storage needs compatible with its format, maintaining operation in a temperature range of 0 to 70 °.

• 256 GB storage capacity
• MicroSD format
• FAT32 file system
• Maximum read speed of up to 95 MB/s
• Maximum write speed of up to 24 MB/s
• TLC NAND Flash memory
• Compatible with MicroSDHC, MicroSDXC, MicroSDHC UHS-I and MicroSDXC UHS-I
• Class 10 U1
• Operating temperature 0 to 70°

The P1 MicroSD 128GB memory card is designed for video recording in surveillance settings, with features designed to ensure speed, stability, and durability. When combined with Hikvision devices, it also supports functions dedicated to data protection and more reliable management during continuous use.

The 128GB model reaches a maximum read speed of 100 MB/s and a maximum write speed of 85 MB/s, with Class 10, U3, and V30 classifications. It uses eTLC NAND memory and is compatible with microSDHC, microSDXC, microSDHC UHS-I, and microSDXC UHS-I host devices.

Hikvision also specifies high adaptability in harsh environments, thanks to resistance to water, shock, X-rays, and temperature. The card measures 14.99 x 10.92 x 1.02 mm, operates from -25°C to 85°C (-13°F to 185°F), and can be stored from -40°C to 85°C (-40°F to 185°F).

• 128GB capacity
• Maximum read speed up to 100MB/s
• Maximum write speed up to 85MB/s
• Class 10 U3 V30 rating
• eTLC NAND memory
• Compatible with microSDHC, microSDXC, microSDHC UHS-I, and microSDXC UHS-I hosts
• Designed for surveillance video recording
• Waterproof, shockproof, X-ray-proof, and harsh temperatures
• Dimensions 14.99 x 10.92 x 1.02 mm
• Operating temperature -25°C to 85°C
• Storage temperature -40°C to 85°C
• 2-year warranty

The DarkFighter 8MP bullet camera is designed to capture detailed images even in low-light conditions. Hikvision's DarkFighter technology, the 1/1.8" Progressive Scan CMOS sensor, 120 dB True WDR and IR illumination up to 30 m promote sharp footage in low light or strong backlight.

The integrated 2.8-12 mm lens offers automatic, semi-automatic or manual focus and a horizontal field of view of 112.3 to 41.2 degrees. Deep Learning algorithms support facial recognition, people counting and various event analysis functions. H.265+ compression reduces bandwidth and storage consumption, while IP67 and IK10 protections make the camera resistant to water, dust and vandalism.

Main Features

• Maximum resolution of 8 MP equal to 3840 x 2160 pixels.
• 8 MP Progressive Scan CMOS sensor 1/1.8".
• Built-in 2.8-12mm lens with F1.2 to F2.5 aperture and P-Iris support.
• Horizontal field of view from 112.3 to 41.2 degrees, vertical from 58 to 23.1 degrees and diagonal from 137.3 to 47.3 degrees.
• DarkFighter technology for advanced low-light performance.
• Minimum illumination of 0.009 Lux in color and 0.0009 Lux in black and white.
• 850nm IR illumination with a range of up to 30m and Smart Supplement Light.
• 120dB True WDR, BLC, HLC, 3D DNR, Defog, EIS and distortion correction.
• Speed ​​up to 25 fps at 50Hz and 30 fps at 60Hz Hz at maximum resolution.
• H.265+, H.265, H.264+, H.264 and MJPEG video compression.
• Five video streams and up to five custom streams.
• Simultaneous recognition of up to 30 faces.
• Support for three libraries with up to 30,000 faces each.
• People counting with facial feature sampling and duplicate removal.
• Detection of line crossing, intrusion, entry and exit from areas, unattended baggage and object removal.
• Two inputs and two alarm outputs.
• MicroSD, SDHC and SDXC slots with capacity up to 256 GB.
• Autosensing 10M, 100M and 1000M RJ45 Ethernet port.
• 12 VDC power supply or PoE 802.3at Type 2 Class 4.
• Aluminum alloy body with IP67 and IK10 protections.
• Dimensions of 144 x 347 mm and weight of 1,920 g.
• Operating temperature from -40 °C to 60 °C with humidity up to 95% non-condensing.

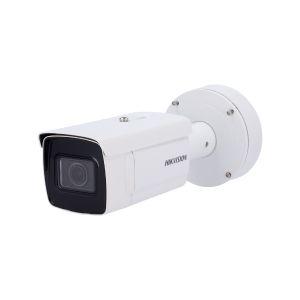

Hikvision's DeepinView 8MP IR 2.8-12mm bullet camera is a professional video surveillance solution designed for environments requiring high image quality, advanced analytics, and outdoor reliability. The 1/1.8" Progressive Scan CMOS sensor supports a maximum resolution of 3840 x 2160, while DarkFighter 2.0 technology improves low-light performance and 140 dB WDR helps achieve clearer images in strong backlighting.

This version with 2.8-12 mm lens offers IR illumination with a monitoring range of up to 60 m, Smart Supplement Light, P-iris and high frame rate of up to 60 fps at 8 MP in monitoring mode. The camera supports H.265+ compression, up to 5 streams, built-in heater for clearer images in case of rain or snow, built-in G-sensor for vibration detection and built-in power meter for historical power statistics.

The availability of the iDS-2CD7A86G2-IZHS (2.8-12mm) model is indicated among the variants in the datasheet. For the iDS-2CD7A86G2-IZHS version with 2.8-12mm lens 2.8-12 mm non-5G, the document indicates the absence of RS-485 interface.

Main Features

• DeepinView series bullet camera with 8 MP resolution up to 3840 x 2160
• 1/1.8" Progressive Scan CMOS sensor
• DarkFighter 2.0 technology for low-light performance
• 140 dB WDR
• 2.8-12 mm lens with horizontal field of view from 104° to 41.2°, vertical from 54.2° to 23.1° and diagonal from 126.5° to 47.3°
• Minimum illumination up to 0 Lux with IR
• IR at 850 nm with monitoring range up to 60 m
• Smart Supplement Light
• P-iris
• H.265+ compression
• Up to 5 streams
• Frame rate up to 8 MP at 60 fps and 2 MP at 120 fps
• Built-in heater
• Built-in G-sensor for vibration detection
• Built-in power meter for historical power statistics
• IP67 and IK10 protection
• Available model: iDS-2CD7A86G2-IZHS(2.8-12mm)
• For the iDS-2CD7A86G2-IZHS 2.8-12 mm version without 5G: RS-485 not available

The AcuSense 4-Channel 1080p Turbo HD Pro DVR is designed for advanced analog video surveillance systems, thanks to AcuSense technology that uses deep learning to classify people and vehicles, drastically reducing false alarms. It supports multiple signal formats (HDTVI, AHD, HDCVI, CVBS, and IP) and up to 6 additional IP cameras, each up to 6 MP. H.265 Pro+ compression ensures high efficiency in bandwidth and storage use. With a SATA slot for HDDs up to 10 TB, HDMI and VGA video outputs, synchronized playback, and advanced search functions, this compact 1U DVR is a flexible and reliable solution for professional installations.Key Features

• 4 analog 1080p channels with intelligent human/vehicle classification
• Deep Learning for Motion Detection 2.0 and Perimeter Protection (up to 2 channels)
• Face recognition support with image capture
• Compatible with HDTVI, AHD, HDCVI, CVBS, and IP
• Up to 6 IP cameras supported (max 6 MP)
• Video codec: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
• SATA slot for HDDs up to 10 TB
• Simultaneous HDMI/VGA video outputs up to 1080p
• Synchronized playback up to 4 channels
• Interfaces: 2- USB 2.0, RS-485, Ethernet 10/100 Mbps
• Compact 1U chassis, maximum power consumption 18 W

The 8-channel 1080p Turbo HD Pro AcuSense DVR is designed for advanced video surveillance applications, offering wide compatibility with analog signals (HD-TVI, AHD, HDCVI, CVBS) and IP cameras up to 12 channels. Thanks to deep learning-based Motion Detection 2.0 technology, the device classifies people and vehicles, reducing false alarms and allowing quick searches for objects or events. On a single drive (SATA slot), it supports up to 10 TB of storage. The DVR uses the H.265 Pro+ codec, optimizing bandwidth and space use, and handles resolutions up to 1080p with encoding capabilities up to 3K/5M Lite at 12 fps. The HDMI and VGA outputs support simultaneous Full HD monitoring. The compact 1U chassis with low power consumption makes it perfect for professional environments where space and efficiency are a priority.Key Features

• Supports 8 analog 1080p channels with human/vehicle classification (AcuSense)
• Deep learning Motion Detection 2.0 and Perimeter Protection for up to 4 channels
• Face recognition with image capture
• Compatible with HDTVI, AHD, HDCVI, CVBS, and IP
• Supports up to 12 IP cameras up to 6 MP
• Video codecs: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
• Encodes up to 3K/5M Lite at 12 fps and records up to 1080p
• HDMI and VGA video outputs up to Full HD
• SATA slot for HDDs up to 10 TB
• 8-channel synchronized playback and smart search
• Interfaces: Ethernet, USB 2.0, RS-485
• Compact 1U footprint, maximum power consumption 18 W

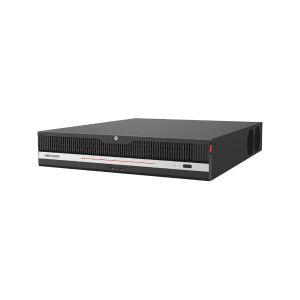

DeepinMind Pro is a professional NVR designed by Hikvision to connect up to 64 IP cameras with resolutions up to 32 MP. Its 400 Mbps input and output bandwidth, multi-channel decoding, and HDMI outputs up to 8K enable the management of high-resolution video systems.

AI-based analytics include facial recognition, perimeter protection, structured video analysis, AcuSearch, and AcuSeek. The recorder integrates 8 SATA interfaces for 3.5-inch HDDs with a capacity of up to 20 TB each and supports RAID configurations for advanced data management.

Main Features

• Connect up to 64 IP cameras with resolutions up to 32 MP.
• Input and output bandwidth up to 400 Mbps.
• Decoding up to 2 channels at 32 MP, 4 channels at 16 MP, 8 channels at 8 MP, 16 channels at 4 MP, or 32 channels at 2 MP.
• H.265+, H.265, H.264+, and H.264 video formats.
• AI Analytics with AcuSeek, AcuSearch, facial recognition, perimeter protection, and structured analysis.
• Face recognition for up to 24 channels per video stream or 64 channels for facial images.
• Up to 32 libraries and 100,000 facial images.
• Perimeter protection up to 36 channels and structured analysis up to 24 channels at 2 MP.
• HDMI 1 output up to 8K at 30 Hz and HDMI 2 output up to 4K at 60 Hz.
• 8 SATA interfaces for 3.5-inch HDDs with capacity up to 20 TB each.
• RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 support.
• Two self-adaptive 10/100/1000 Mbps RJ45 Ethernet interfaces.
• 16 alarm inputs and 9 alarm outputs, one RS-232 port and one full-duplex RS-485 port.
• Redundant power supply from 100 to 240 VAC and consumption Maximum power of 50 W without HDD.
• Dimensions of 442 x 498 x 146 mm and maximum weight of 8 kg without HDD.
