The Hikvision industrial switch is designed for harsh environment applications requiring stable connectivity, advanced PoE power, and extensive resistance to extreme temperatures. Equipped with 8 Gigabit PoE ports and 2 SFP ports, it supports Hi-PoE power up to 90W on the first two ports and a total power budget of 110W, offering an efficient solution for devices such as cameras and industrial equipment. The metal enclosure with fanless design and surge protection make it suitable for demanding installations. Key Features

• 8 Gigabit PoE ports and 2 Gigabit SFP ports
• Hi-PoE up to 90 W on ports 1-2
• IEEE 802.3af, 802.3at, and 802.3bt support
• 110 W total PoE budget
• Operating temperature range: -40°C to 75°C
• 6 kV surge protection
• Metal enclosure with fanless design
• Desktop or DIN-rail installation
• 20 Gbps switching capacity and 1.5 Mbit internal cache

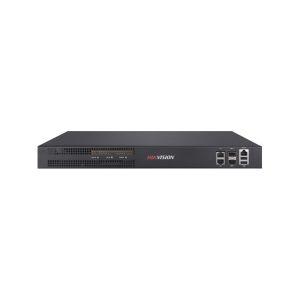

Hikvision's 64-channel 4K video decoder allows you to manage and display video streams on video walls via 8 HDMI outputs and 4 BNC outputs. The HDMI outputs support a maximum resolution of 3840 x 2160 at 30 Hz on odd-numbered interfaces, while decoding capacity reaches 24 MP in 3-track encoder mode.

The device offers active and passive decoding modes, remote video file playback, and stream ingestion via URL and RTSP. Window opening, moving, and splitting functions make it easy to set up regular and irregular virtual screens with multiple video sources.

Key Features

• Up to 64-channel decoding.
• Up to 24MP decoding resolution in 3-track encoder mode.
• 4-channel decoding capability at 24MP and 30fps.
• 8-channel decoding capability at 12MP and 20fps.
• 16-channel decoding capability at 8MP and 30fps.
• 64-channel decoding capability at 1080p and 30fps.
• 8 HDMI outputs with resolutions up to 3840 x 2160 at 30Hz on odd-numbered interfaces.
• 4 BNC outputs with PAL and NTSC.
• VGA and DVI-I inputs with resolution up to 1920 x 1080 at 60 Hz.
• Support for H.265+, H.265, H.264+, H.264, Hik264, MPEG4 and MJPEG video formats.
• Support for G.722, G711A, G726, G711U, MPEG2-L2 and AAC audio formats.
• Active and passive decoding modes.
• Stream acquisition and decoding via URL and RTSP.
• Screen division into 1, 4, 6, 8, 9, 12, 16, 25 or 36 windows.
• Multi-screen control via PC with RSC server.
• 2 adaptive RJ45 interfaces of 10, 100 and 1000 Mbps.
• 2 optical interfaces 100 base-FX and 1000 base-X.
• Bidirectional audio with 3.5 mm input and output and 1 kOhm impedance.
• 8 alarm inputs, 8 alarm outputs and 8 audio outputs.
• RS-232 and RS-485 serial interfaces.
• Ethernet Channel port aggregation technology.
• 220 VAC power supply with consumption less than or equal to 70 W.
• Operating temperature from -10 °C to 55 °C and humidity from 10% to 90%.
• Dimensions of 440 x 320.8 x 44.5 mm and weight less than or equal to 5.2 kg.

The Hikvision AcuSense 4-channel NVR with 1 HDD slot is designed to ensure intelligent and simplified video management. Thanks to AcuSense technology, it can distinguish people and vehicles, reducing false alarms and improving monitoring efficiency. It supports display resolutions up to 4K and H.265+ video compression for significant bandwidth and storage savings. It features a HDD slot for up to 10 TB, 12 VDC power supply, and an HDMI/VGA interface for easy integration with existing systems. It is ideal for commercial or residential video surveillance applications.

• 4 channels of IP video input
• AcuSense technology for people and vehicle detection
• Up to 4K display
• H.265+ video compression
• 1 HDD slot up to 10 TB
• HDMI and VGA video outputs
• 12 VDC power supply

The AcuSense 4-Channel PoE Pro NVR from Hikvision is designed to offer a complete solution for video recording and management in professional environments. It features four plug-and-play PoE ports that simplify IP camera wiring. Support for H.265+ and H.264 optimizes bandwidth and storage usage.

Thanks to AcuSense technology, the device performs advanced video analytics for vehicle and person recognition, reducing false alarms and simplifying intelligent search. It can decode up to 12 MP per channel, with an input bandwidth of up to 40 Mbps. HDMI and VGA video outputs allow viewing in resolutions up to 4K, ideal for detailed overviews.

• 4 IP channels with integrated PoE for power and data transmission
• H.265+, H.265, H.264+, H.264 video compression
• Decoding up to 1 channel @12 MP, 2 @8 MP, 4 @4 MP, or 8 @1080p (AI OFF)
• Input bandwidth up to 40 Mbps, output up to 80 Mbps
• AcuSense intelligent analytics for human and vehicle recognition
• Simultaneous HDMI/VGA video outputs with resolutions up to 4K (HDMI)
• Audio interfaces: 1 - RCA in/out
• ONVIF Profile S/G compatibility, advanced network protocols and management via Hik-Connect
• SATA slot for HDD up to 10 TB
• Synchronous playback up to 4 channels

The 8-Channel 4K NVR without PoE is suitable for IP video surveillance systems where integrated PoE power is not required. It supports up to 8 IP cameras with a maximum resolution of 12 MP (in Ultra HD mode it can reach 32 MP on one channel), and decode up to 1 channel at 32 MP, 2 at 12 MP, or 16 at 1080p. It offers independent HDMI and VGA video outputs, including HDMI up to 4K at 60 Hz. With dual-stream functionality, it allows simultaneous recording and smooth playback. Interfaces include 2 SATA drives for up to 16 TB of storage each, RCA audio ports, and a 1 Gb network port for remote connection, with an advanced protocol for smooth live view even on unstable connections.

• 8 IP channels, up to 12 MP (Ultra HD mode: 32 MP on 1 channel)
• Decoding up to 1-ch @ 32 MP, 2-ch @ 12 MP, or 16-ch @ 1080p video
• Independent HDMI (4K/60 Hz) and VGA video output
• 2 SATA slots, up to 16 TB each
• Dual-stream recording and synchronous playback of up to 8 channels
• 1 Gb network port (Ethernet); Optimized streaming for complex network conditionsRCA audio inputs/outputs, alarm I/O, compatibility with various advanced camera models

The AcuSense 8-Channel 4K PoE NVR is ideal for compact professional installations, with power and transmission over Ethernet cable thanks to the 8 PoE ports. It supports video up to 12 MP and manages decoding in various configurations: up to 2 channels at 12 MP, 3 at 8 MP, 6 at 4 MP, or 12 at 1080p with AI enabled. It integrates artificial intelligence functions such as Motion Detection 2.0, facial recognition, and Perimeter Protection, automatically alerting on human or vehicular movement and reducing false alarms. The HDMI and VGA outputs are independent and support up to 4K. With dual SATA slots (up to 10 TB each) and H.265+ compression, it guarantees maximum storage savings. The system easily integrates with the Hik-Connect platform for secure remote configuration and access.Main Features

• 8 IP channels with 8 PoE ports (plug-and-play)
• AI Decoding: up to 2 channels @ 12 MP, 3 channels @ 8 MP, 6 channels @ 4 MP, or 12 channels @ 1080p
• AI Features: Face Recognition, Motion Detection 2.0, Perimeter Protection
• Independent HDMI/VGA video outputs; HDMI up to 4K
• 2 SATA slots up to 10 TB for each disk
• H.265+, H.265, H.264+, H.264 compression
• 8-channel synchronized playback
• 80 Mbps input bandwidth, up to 160 Mbps output
• Secure remote management via Hik-Connect and TLS streaming

The EasyIP Pro AcuSense 16-Channel 4K NVR is a complete and powerful solution for managing IP video surveillance. It is designed to support up to 16 camera inputs with a maximum resolution of 4K and guarantees high performance thanks to decoding up to 32 channels of 1080p. Advanced AI-based features include multi-channel facial recognition, perimeter protection, and intelligent detection, improving monitoring efficiency. The H.265+ codec reduces bandwidth and storage consumption, while independent HDMI and VGA video outputs enable 4K viewing. Dual SATA bays with up to 14 TB per disk ensure scalable and reliable storage capacity. With dual-Gigabit network interfaces and a compact 1U chassis, it is an ideal solution for professional installations requiring stability and advanced features.

• Supports up to 16 IP channels with maximum 4K resolution
• Decodes up to 32 simultaneous 1080p channels
• AI analytics with facial recognition and perimeter protection
• Supported video codecs: H.265+, H.265, H.264+, H.264
• Independent HDMI/VGA video outputs up to 4K
• Dual SATA slots up to 14TB each
• Dual-Gigabit RJ-45 network interfaces
• Synchronized playback of 16 channels with smart search
• 4/1 alarm inputs/outputs and USB ports 2.0/3.0
• Compact 1U chassis with low power consumption

The AcuSense 16-Channel 4K Pro NVR is designed for advanced video surveillance systems. It integrates AI algorithms for facial recognition, perimeter protection, and Motion Detection 2.0. It supports up to 16 IP cameras, with video decoding up to 12 MP or up to 12 streams in Full HD (1080p). The device uses H.265+/H.265/H.264+/H.264 codecs for bandwidth and storage efficiency, and manages throughput up to 160 Mbps. It offers independent HDMI and VGA outputs up to 4K for local monitoring. With two SATA slots (up to 16 TB per drive), it is suitable for high-density professional installations.Main Features

• Supports 16 IP channels with AI analysis (facial recognition, Motion Detection 2.0, perimeter protection)
• Decoding up to 2 channels @ 12 MP or 12 channels @ 1080p
• Supported codecs: H.265+/H.265/H.264+/H.264
• Input/output bandwidth up to 160 Mbps
• Standalone HDMI (4K) and VGA video outputs
• Two SATA slots up to 16 TB each
• Interface support: USB, alarms, audio
• Compact 1U chassis, low power consumption Contents

The AcuSense 16-Channel 4K PoE NVR is designed for professional installations with up to 16 IP cameras powered directly via PoE. It supports H.265+, H.265, H.264+, and H.264 video formats and offers exceptional decoding capacity: up to 2 channels at 12 MP or 3 at 8 MP or 6 at 4 MP or 12 at 1080p with AI enabled. The system includes AI features such as Motion Detection 2.0, facial recognition, Perimeter Protection, and intelligent video analytics for people and vehicles, with smart search and playback. The HDMI and VGA outputs can operate independently, reaching 4K resolution. With two SATA slots (up to 10 TB each), 16 PoE ports, and integration with Hik-Connect for remote management, it offers maximum ease of use and scalability. The device guarantees advanced security thanks to TLS-encrypted streaming.Main Features

• 16 IP channels with 16 PoE ports
• AI Decoding: up to 2 channels @ 12 MP or 3 @ 8 MP with AI enabled
• Artificial Intelligence: facial recognition, people/vehicle detection, perimeter protection
• Thumbnail Archive: 16 libraries, 20,000 images
• Independent HDMI/VGA video outputs up to 4K
• 2 SATA slots up to 10 TB each
• Video Compression: H.265+, H.265, H.264+, H.264
• Synchronous playback on 16 channels
• 16 PoE ports (‰¤ 200 W total)
• Management via Hik-Connect; 100/1000 Mbps connection

The AcuSense 4K 32-Channel NVR is designed for high-performance video surveillance systems. It supports up to 32 IP cameras with resolutions up to 12 MP and decode 32 channels at 1080p, or up to 4 channels at up to 32 MP in Ultra HD mode. It integrates advanced AI with Motion Detection 2.0 on all channels, Perimeter Protection on up to 4 channels and Face Capture on 4 channels, as well as 8 face libraries. It offers dual video outputs (HDMI 4K and VGA), 4 hot-swappable SATA drives (up to 10 TB each), audio output, 16 inputs and 9 alarm outputs, RS-232/485 interfaces, USB 2.0/3.0, and secure remote management via Hik-Connect.Main Features

• 32 IP channels up to 12 MP (Ultra HD up to 32 MP on 4 channels)
• AI Analysis: Motion Detection 2.0 on all channels
• Perimeter Protection on 4 channels, Face Capture up to 4-ch stream or 8-ch image
• 4 SATA slots up to 10 TB each
• Independent HDMI 4K + VGA video outputs
• RCA audio and interfaces: RS-232, RS-485, USB 2.0/3.0
• Alarm inputs/outputs: 16 in / 9 out
• In/Out Bandwidth: 256 Mbps
• Secure management via Hik-Connect

32-channel 8K NVR in 2U format, designed by Hikvision to manage high-resolution IP video surveillance systems. Input bandwidth of up to 320 Mbps and output bandwidth of up to 400 Mbps allow for the management of demanding video streams, while independent HDMI and VGA outputs support video configurations up to 8K or dual 4K.

The 8 hot-plug SATA interfaces, the eSATA interface, and RAID support offer flexible and reliable storage options. H.265+ compression reduces storage space by up to 75%, while synchronous playback on 16 channels makes it easy to review recordings.

Main Features

• Input for up to 32 IP cameras.
• Input bandwidth up to 320 Mbps and output bandwidth up to 400 Mbps.
• Decoding capacity up to 2 channels of 32 MP at 30 fps or 32 channels of 2 MP at 30 fps.
• Recording with resolution up to 32 MP.
• Synchronous playback on 16 channels.
• Two HDMI outputs and two VGA outputs with different sources.
• HDMI output up to 7680 x 4320 pixels at 30 Hz or dual 4K.
• Video compression H.265+, H.265, H.264+, and H.264.
• 8 hot-plug SATA interfaces with up to 20 TB of capacity per disk.
• One eSATA interface for connecting storage.
• RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 support.
• Support for people counting, license plate recognition, and fisheye cameras.
• Support for VCA events, heat maps, ANPR, and POS functions.
• Connect up to 8 IP speakers.
• Two self-adaptive 10/100/1000 Mbps RJ-45 Ethernet interfaces.
• Support for Secure Boot, password protection, IP and MAC address filtering, HTTPS encryption, and signed firmware.
• 2U form factor with dimensions of 442 x 462 x 88 mm.
• Operating temperature from -10 °C to 55 °C.

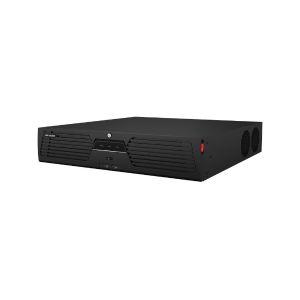

Hikvision's 64-channel 8K NVR is a 2U solution for IP video surveillance systems requiring high management, viewing, and storage capabilities. Input and output bandwidth reaches 400 Mbps, while decoding capacity reaches 40 channels of 1080p at 30 fps.

Independent HDMI and VGA outputs allow images to be displayed at up to 8K resolution or on two 4K displays. H.265+ compression reduces storage space by up to 75%, while dual-stream recording helps limit bandwidth usage.

The 8 hot-plug SATA interfaces, the eSATA port, and RAID support promote reliable data management. Intelligent functions include VCA events, motion detection, line crossing, intrusion, heat map, ANPR and people counting, as well as POS information overlay on live view and playback.

Main Features

• 64 IP video inputs.
• Input and output bandwidth up to 400 Mbps.
• Decoding up to 40 channels of 1080p at 30 fps.
• Recording with resolution up to 32 MP.
• Synchronous playback up to 16 channels.
• Two HDMI outputs and two independent VGA outputs.
• HDMI video output up to 7680 x 4320 at 30 Hz.
• H.265+, H.265, H.264+ and H.264 video compression.
• 8 hot-plug SATA interfaces and one eSATA.
• Supports RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10.
• Two self-adaptive 10/100/1000 Mbps Ethernet RJ-45 interfaces.
• Supports people counting, ANPR, and fisheye cameras.
• Connects up to 8 IP speakers.
• VCA, heat map, ANPR, and people counting functions.
• POS information overlay on live view and playback.
• AES128 encryption of live and playback streams.
• Supports Secure Boot, signed firmware, HTTPS, and IEEE 802.1X access control.
• Two front USB 2.0 ports and two rear USB 3.0 ports.
• 16 alarm inputs and 9 alarm outputs.
• Dimensions: 442 x 462 x 88 mm.
• Weight up to 10 kg without HDD.
